E-Z Change Wordbar

A Sign System that Adapts to Change

Wordbars allow multiple listings to be organized as individual stacking units that can be easily removed or replaced in the future. A uniquely designed two part mounting extrusion with removable fasteners allows for quick and easy changes, regardless of size or placement on the sign.

Quick and Easy Changing

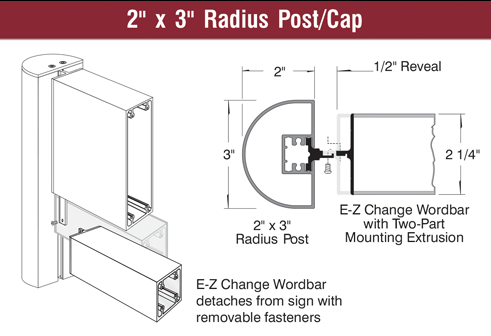

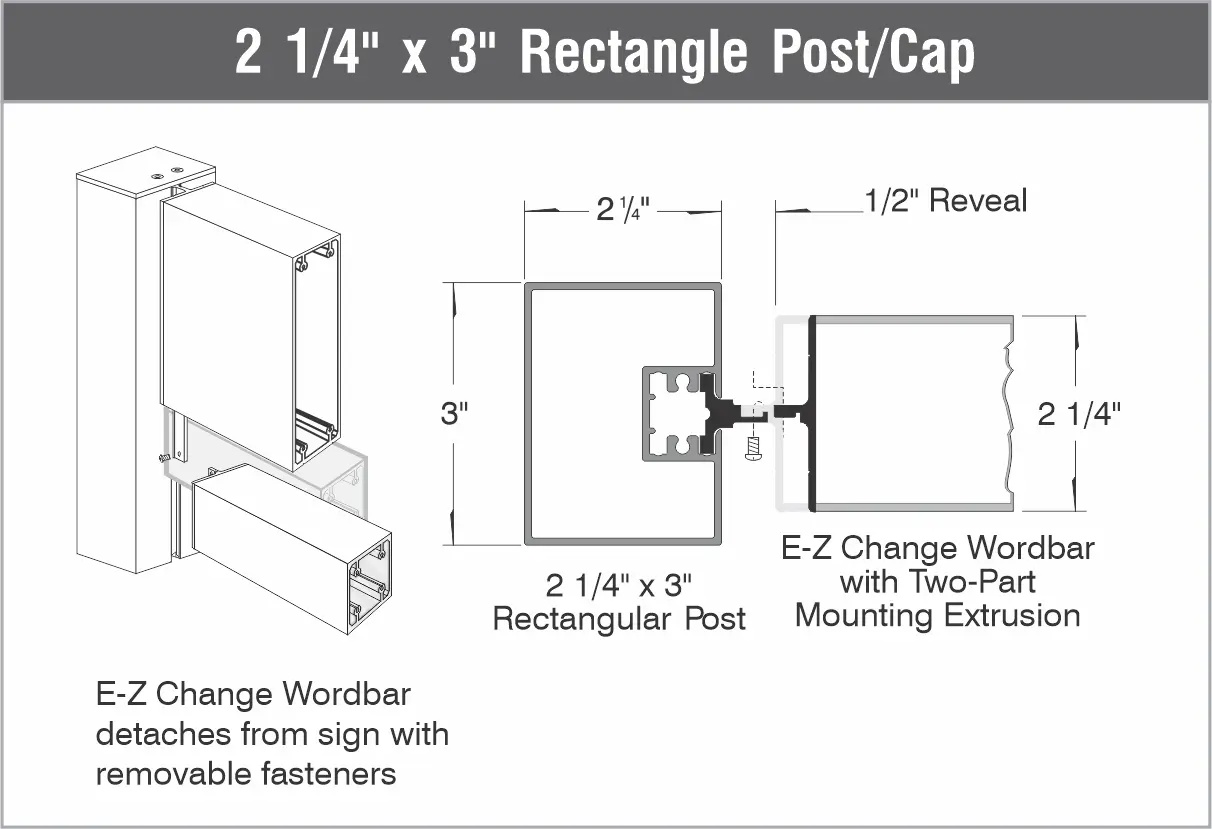

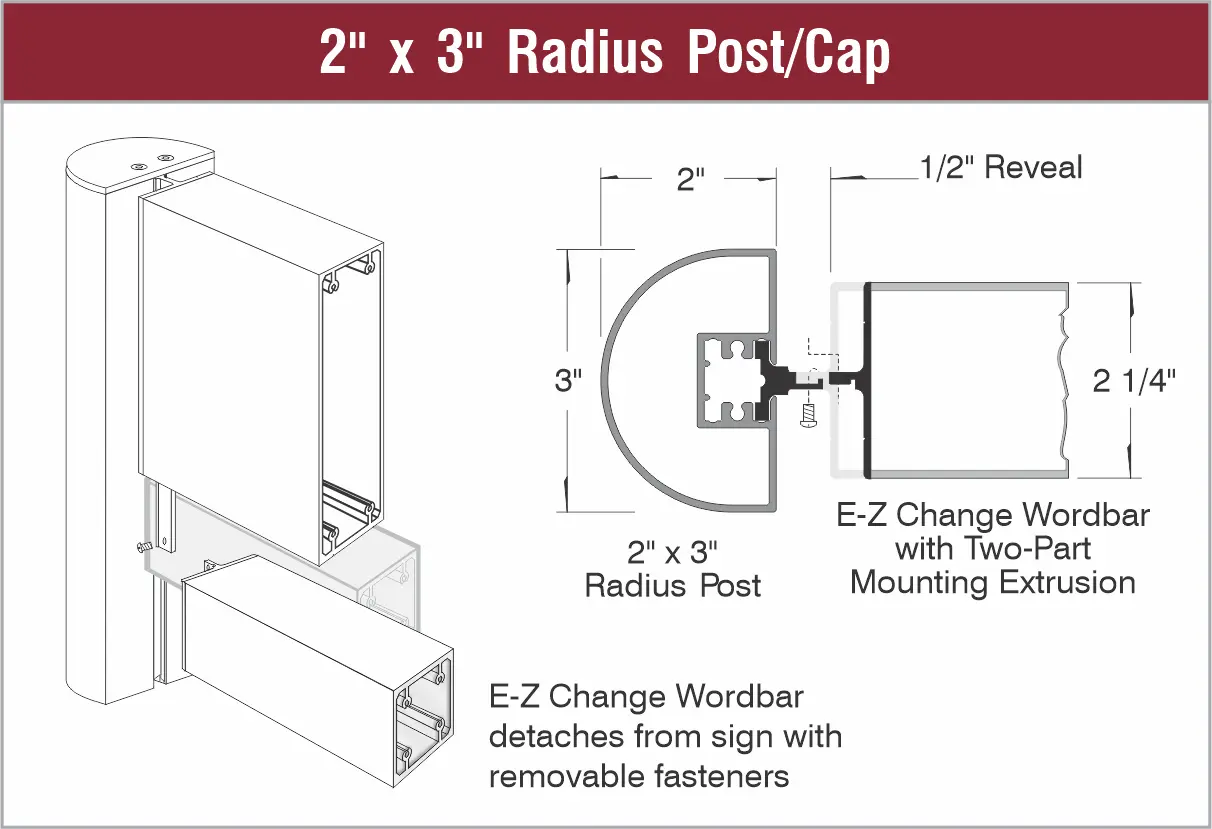

A uniquely designed two part mounting extrusion with removable fasteners allows for quick and easy changes, regardless of size or placement on the sign. Wordbars are constructed of a 2-1/4" 15" or 18" high bar extrusion carried on two end cap mounting extrusions. All wordbars are 2-1/4" wide and slide into our slotted 2-1/4" x 3" standard rectangular posts or 2" x 3" radius posts and can also be used with our corner and double slot mounting posts. Wordbars mount to the various posts with a 1/2" reveal and are held in place with concealed locking squares.

Wordbars are constructed of a 2-1/4", 4", 6", 8", 10", 12", 15", or 18" high bar extrusion carried on two end cap mounting extrusions. All wordbars are 2-1/4" wide and slide into our slotted 2-1/4" x 3" standard rectangular posts or 2" x 3" radius posts and can also be used with our corner and double slot mounting posts. Wordbars mount to the various posts with a flush or 1/2" reveal and are held in place with concealed locking squares.

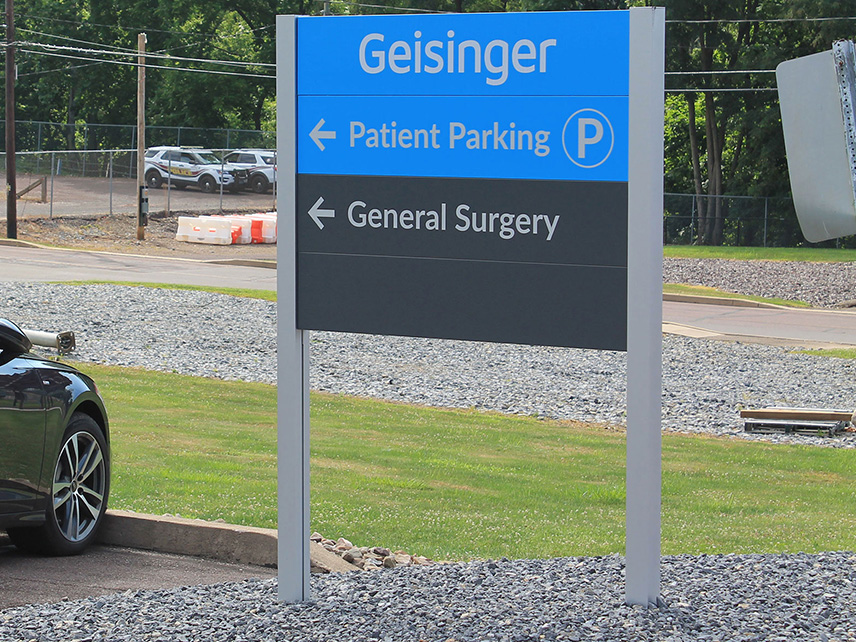

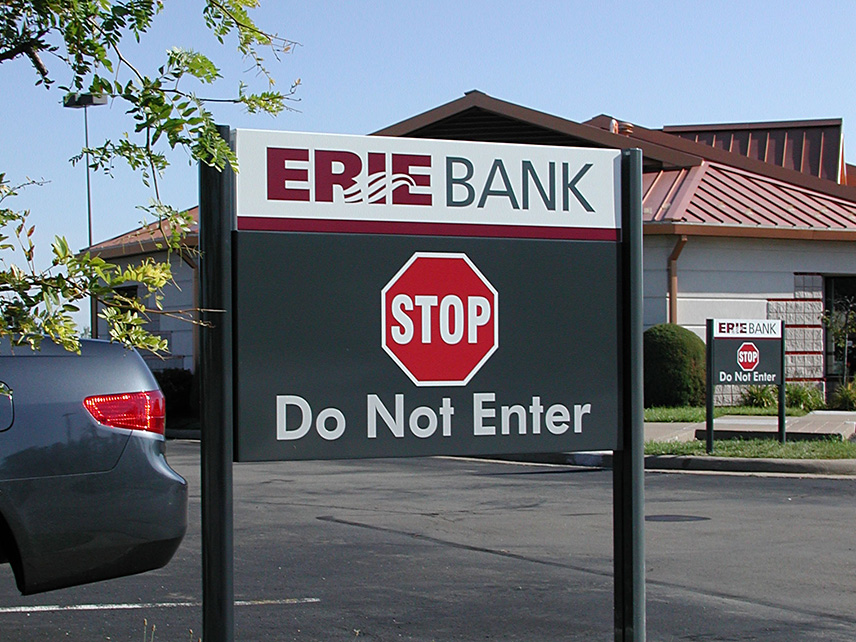

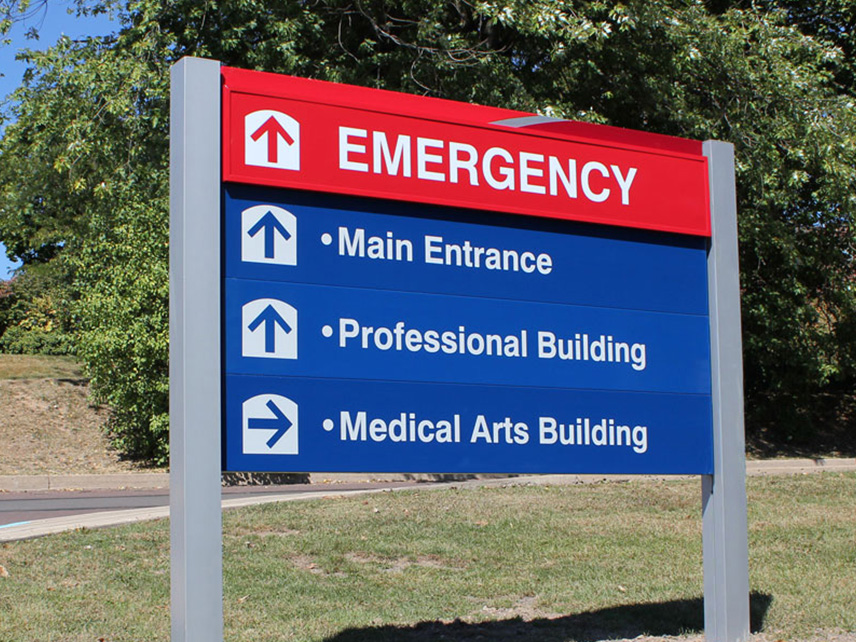

Often Used For

  • Directional Signage
  • Primary Site Identification
  • Secondary Site Identification

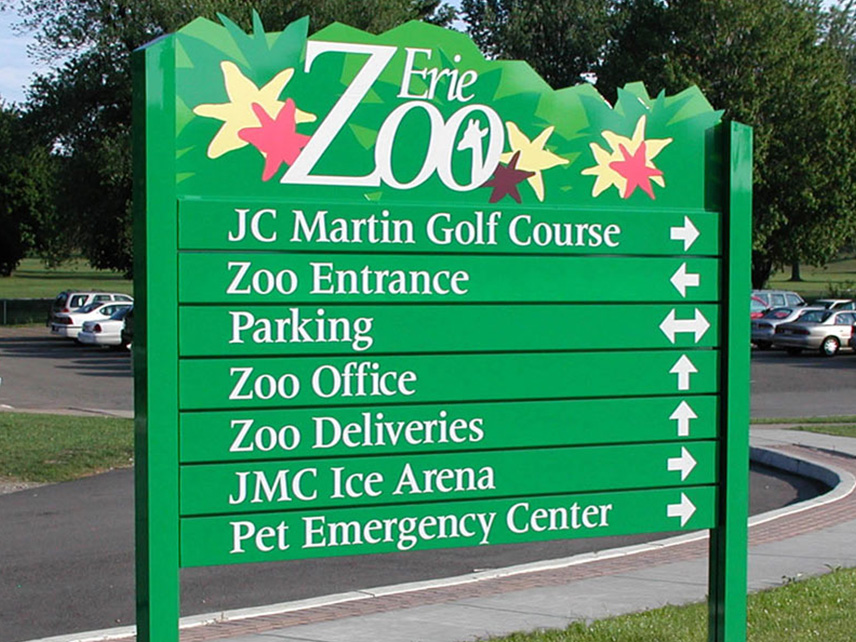

ez zoo
Tech Specs

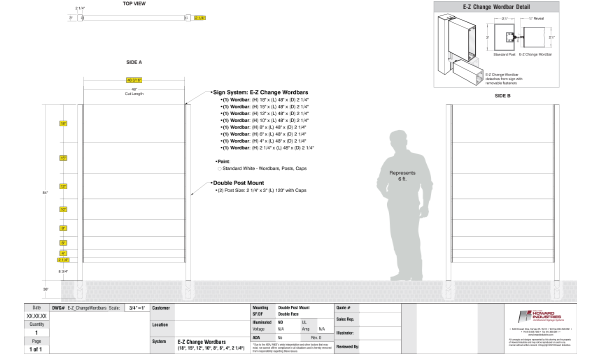

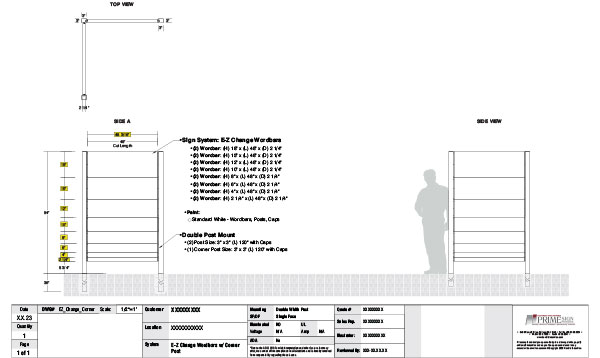

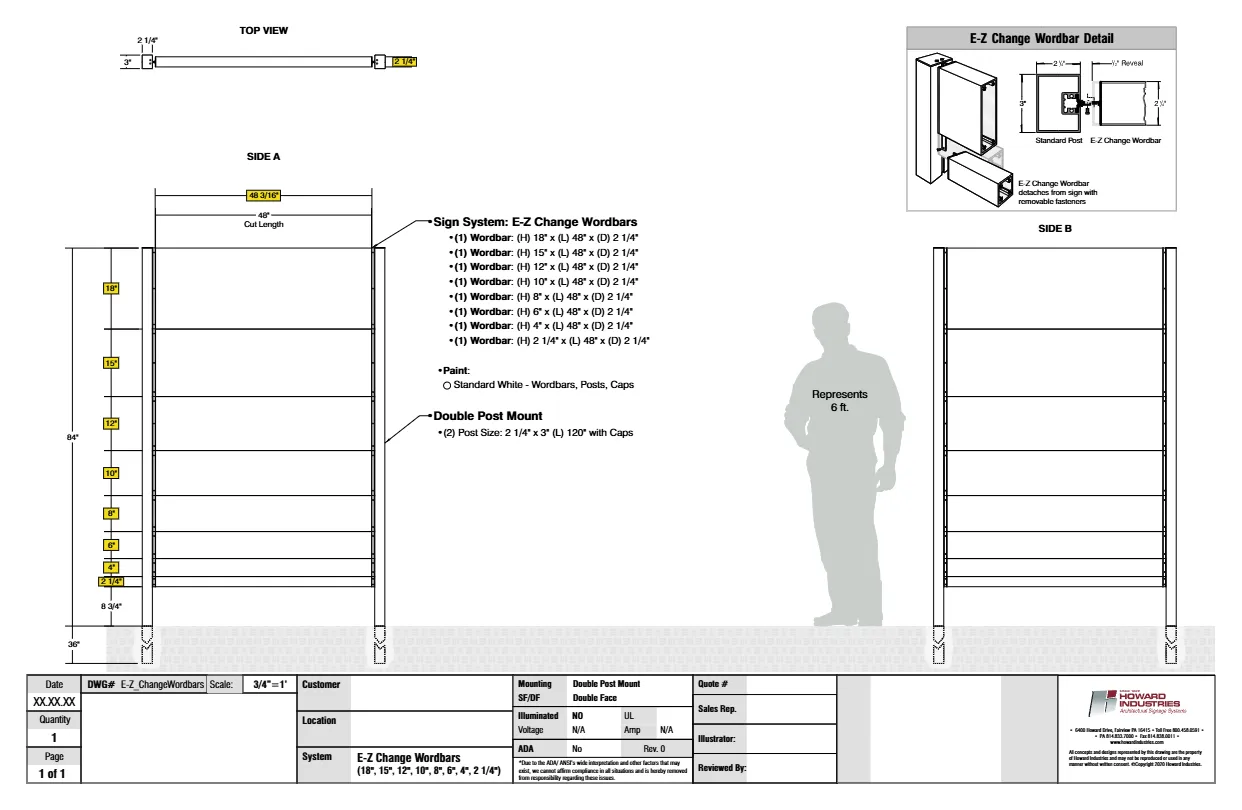

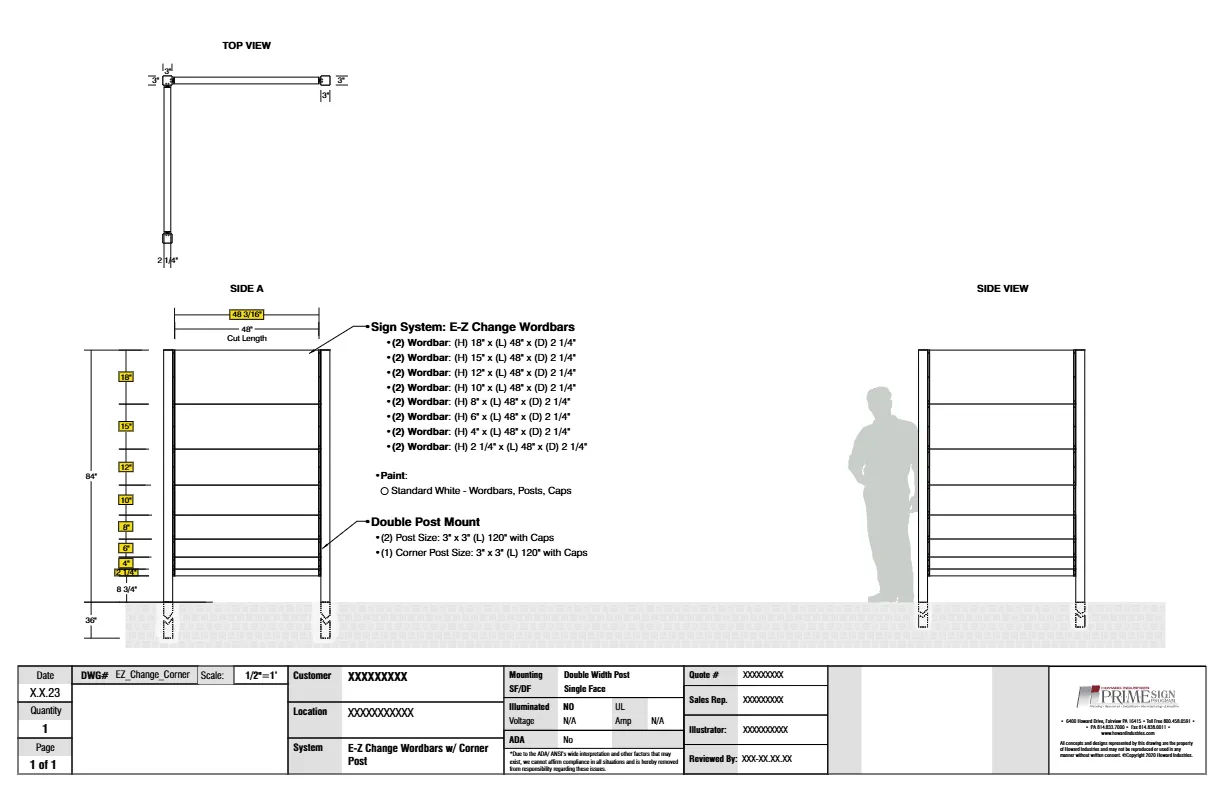

Drawings

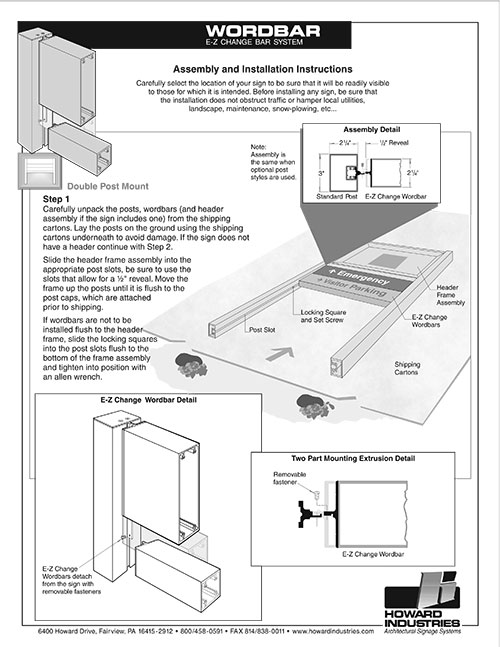

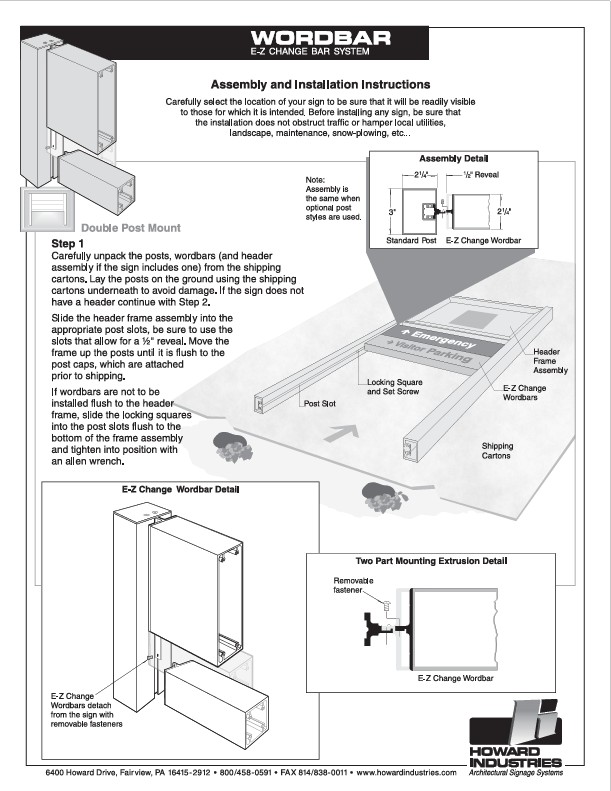

Installation
Videos

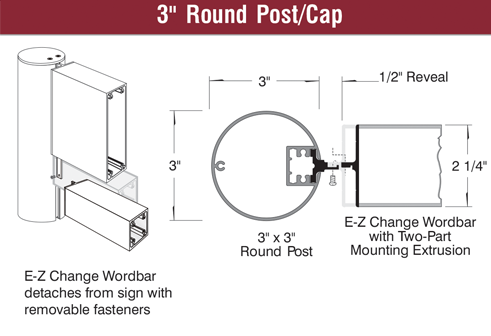

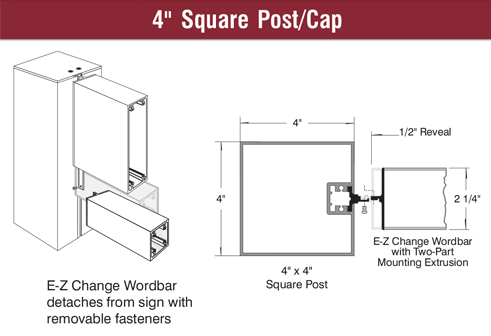

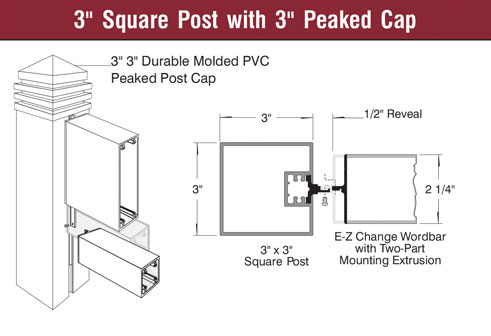

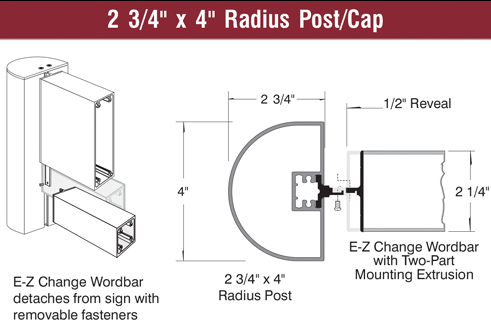

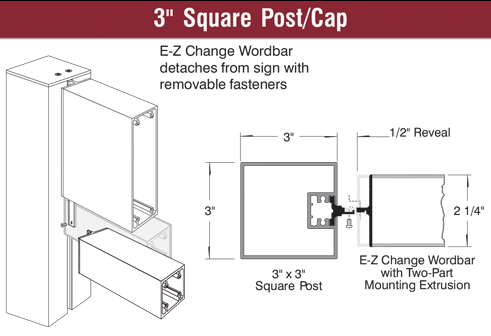

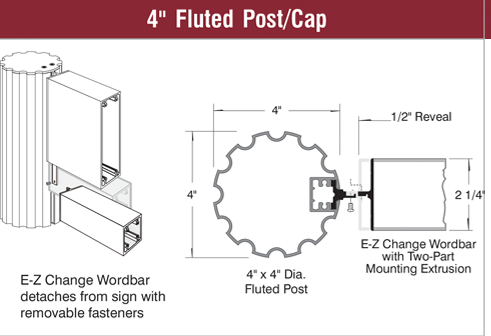

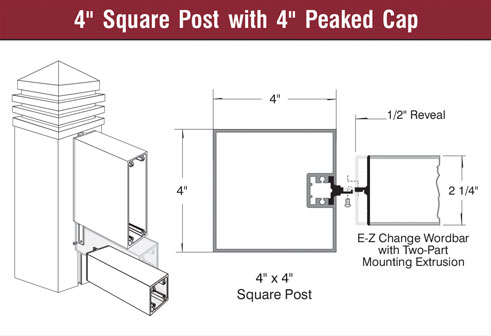

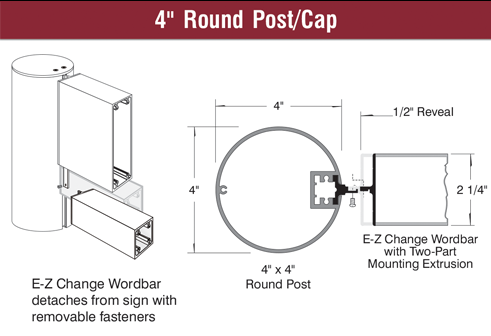

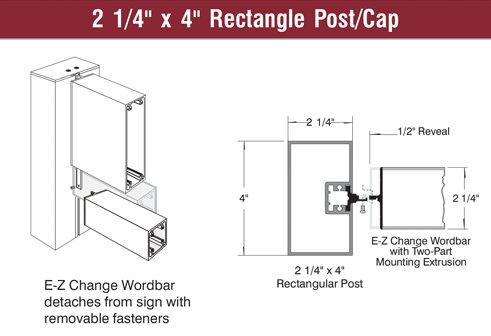

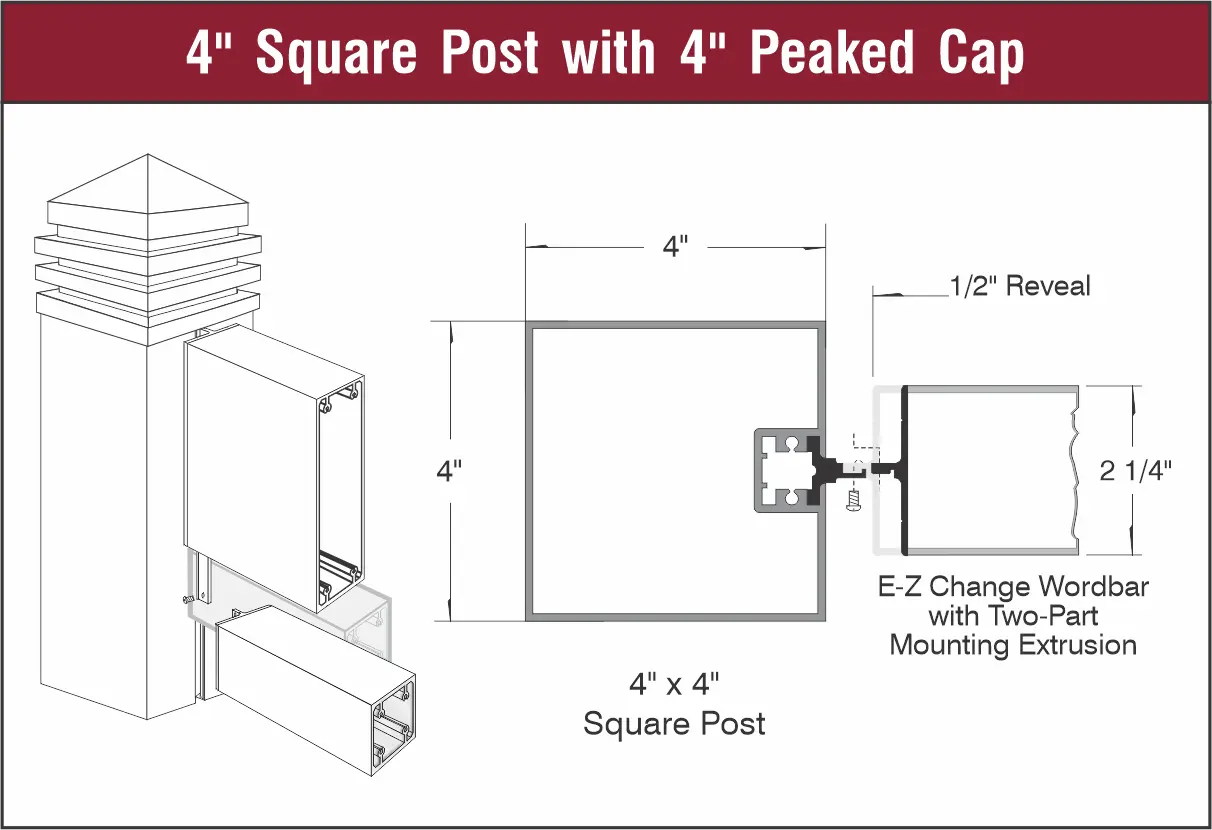

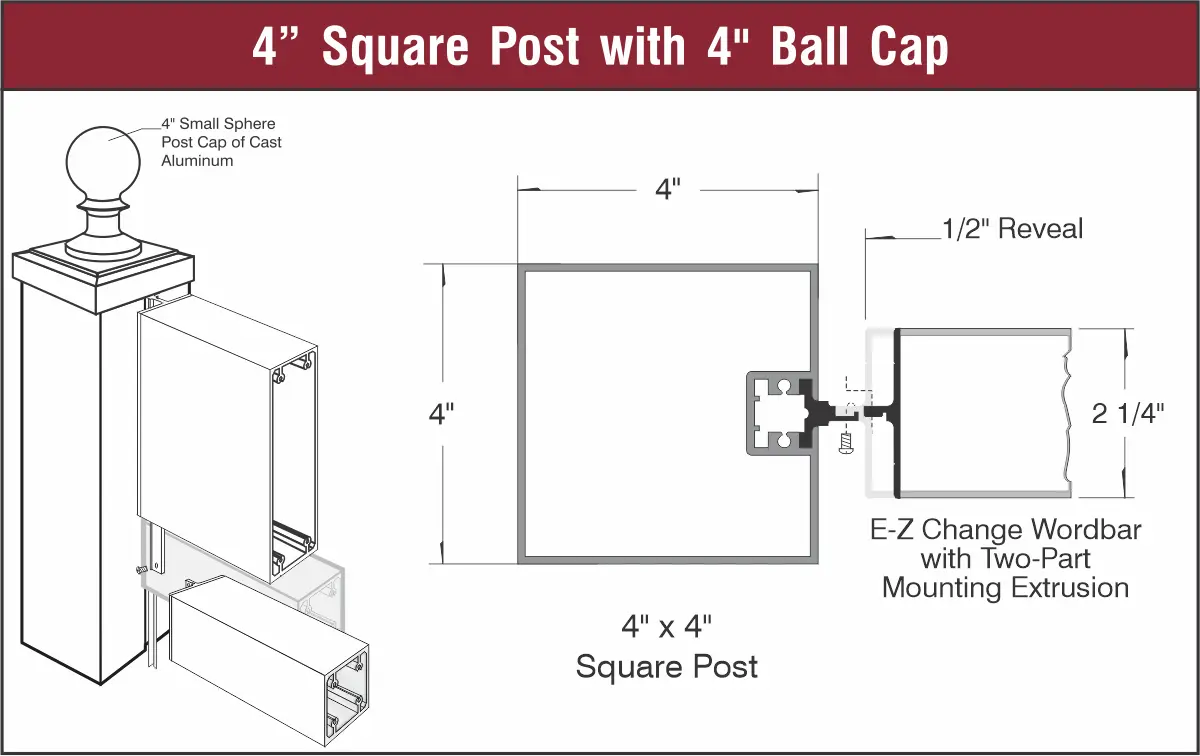

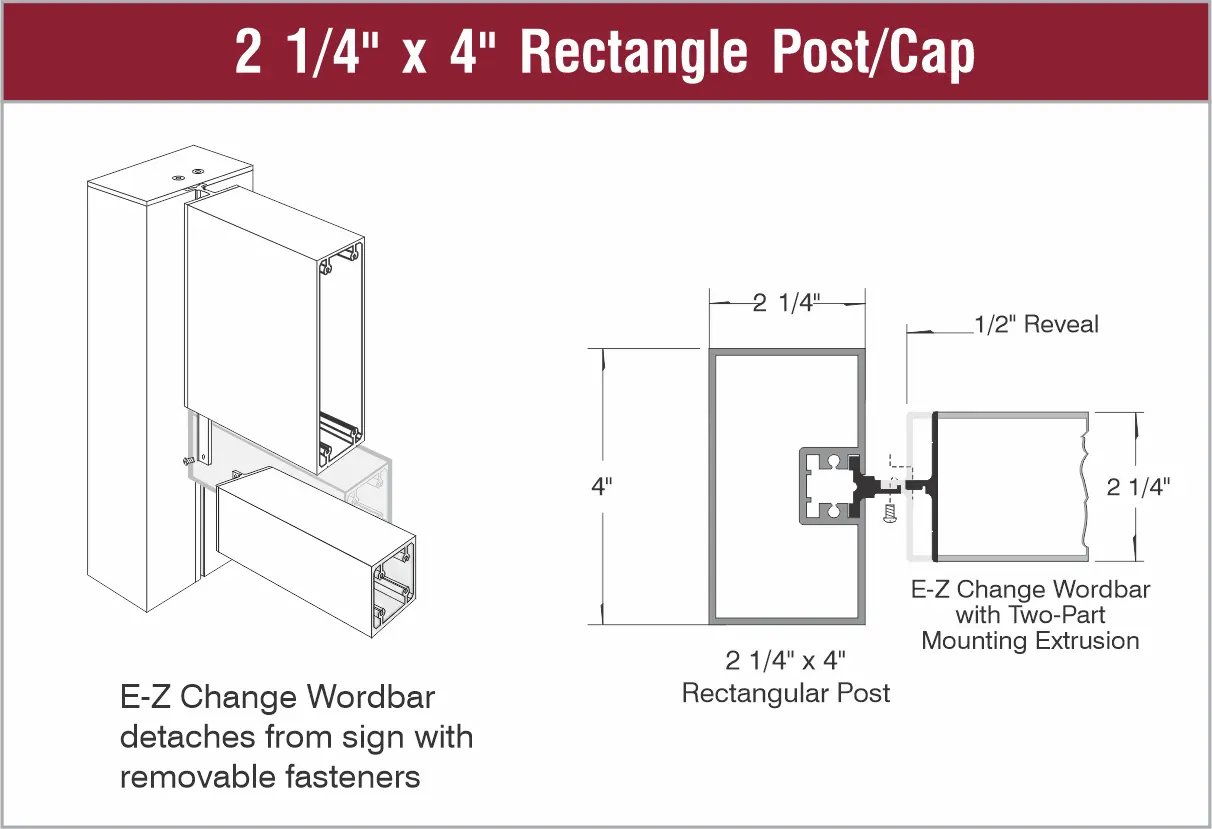

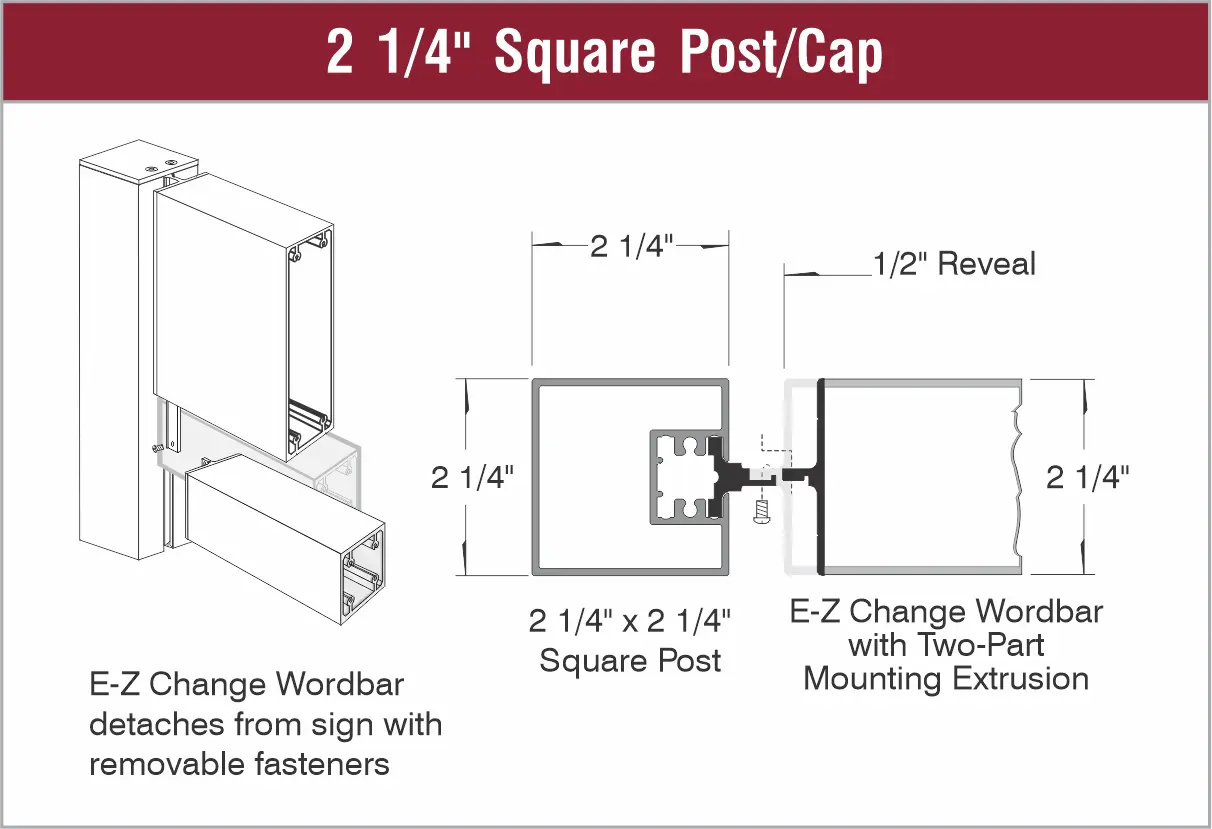

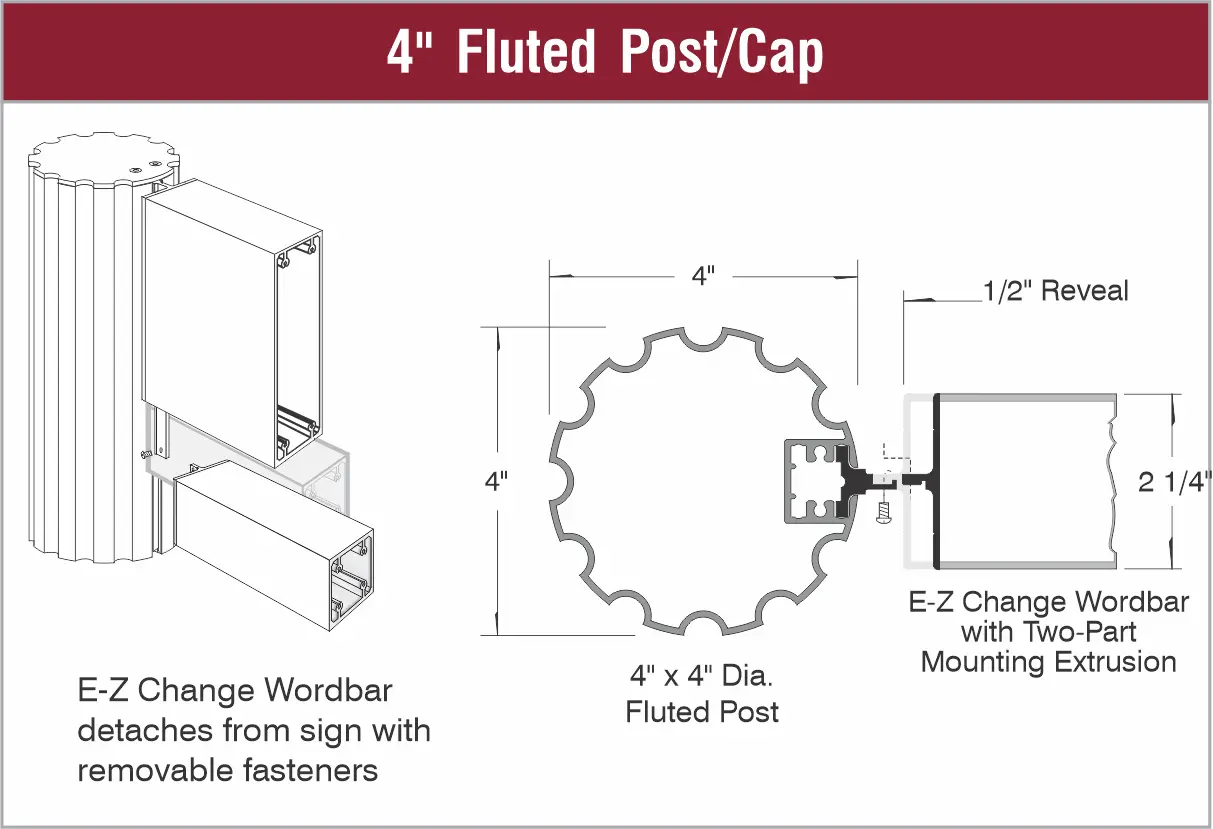

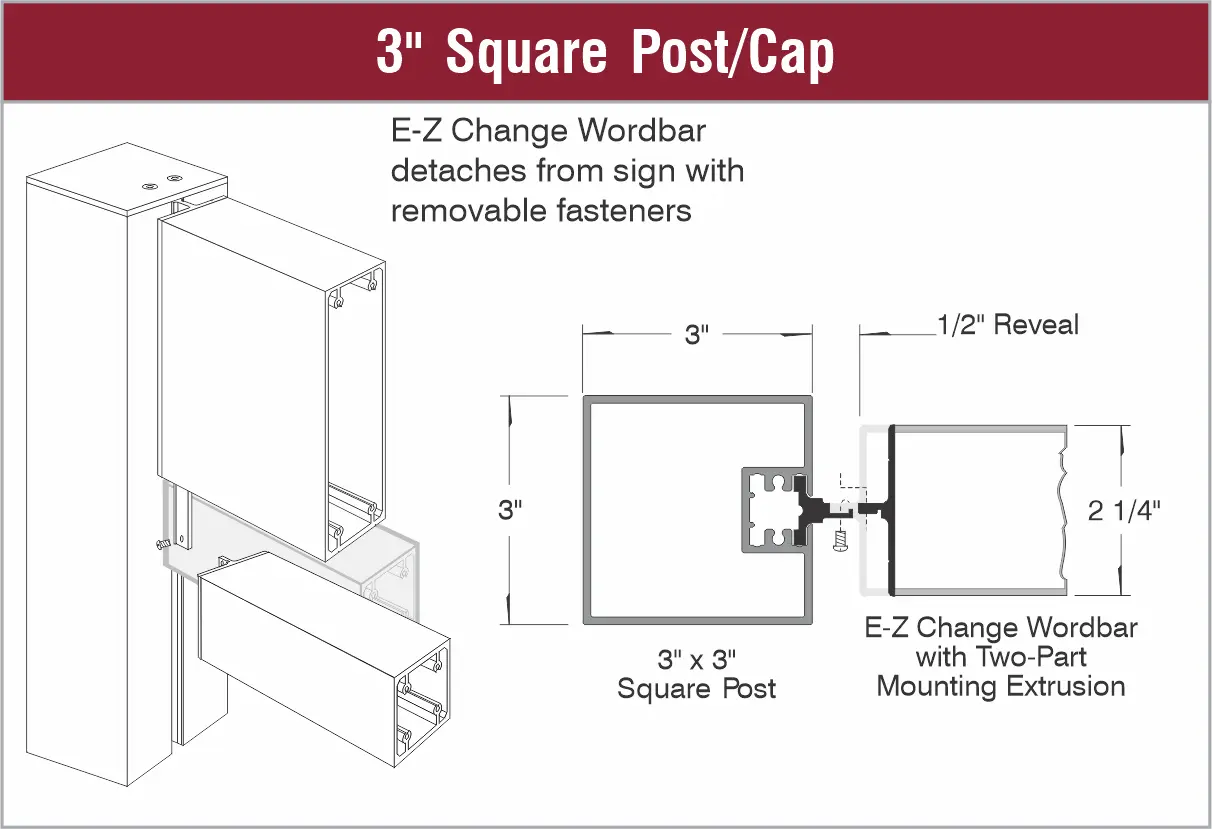

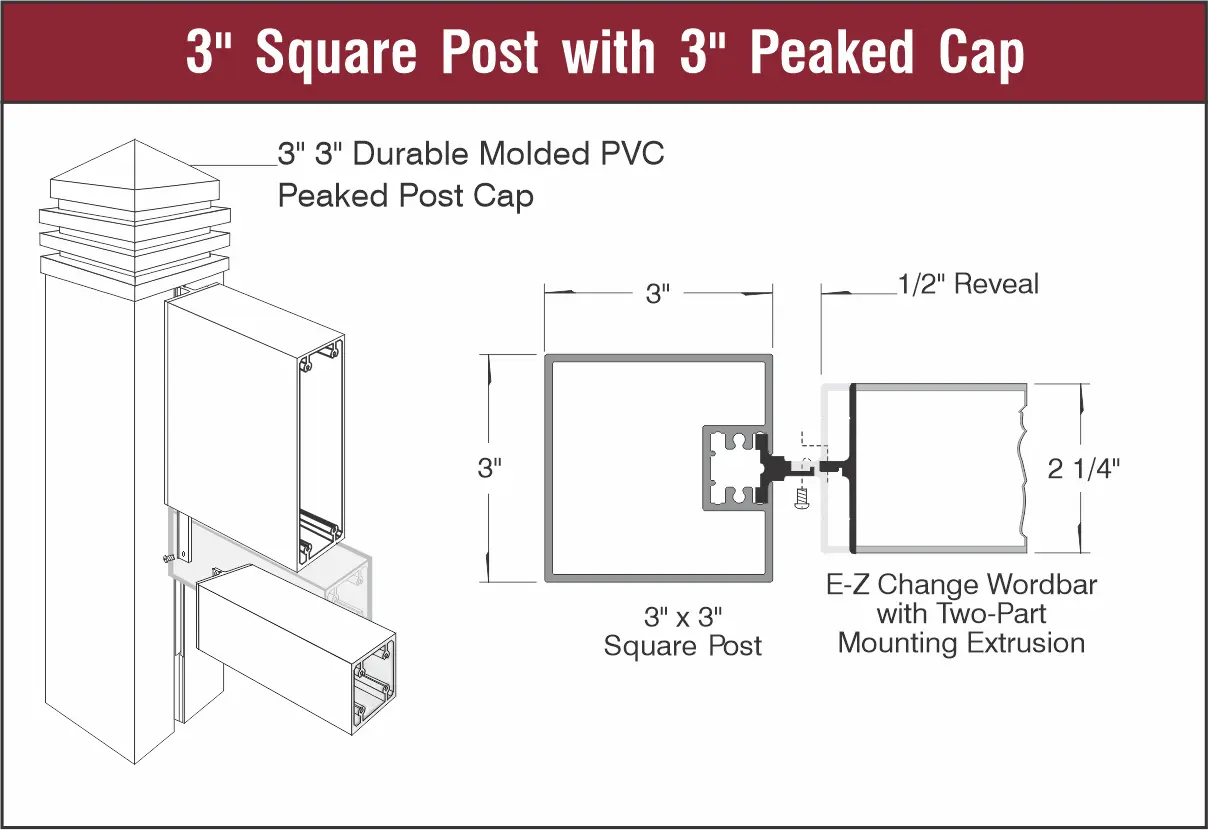

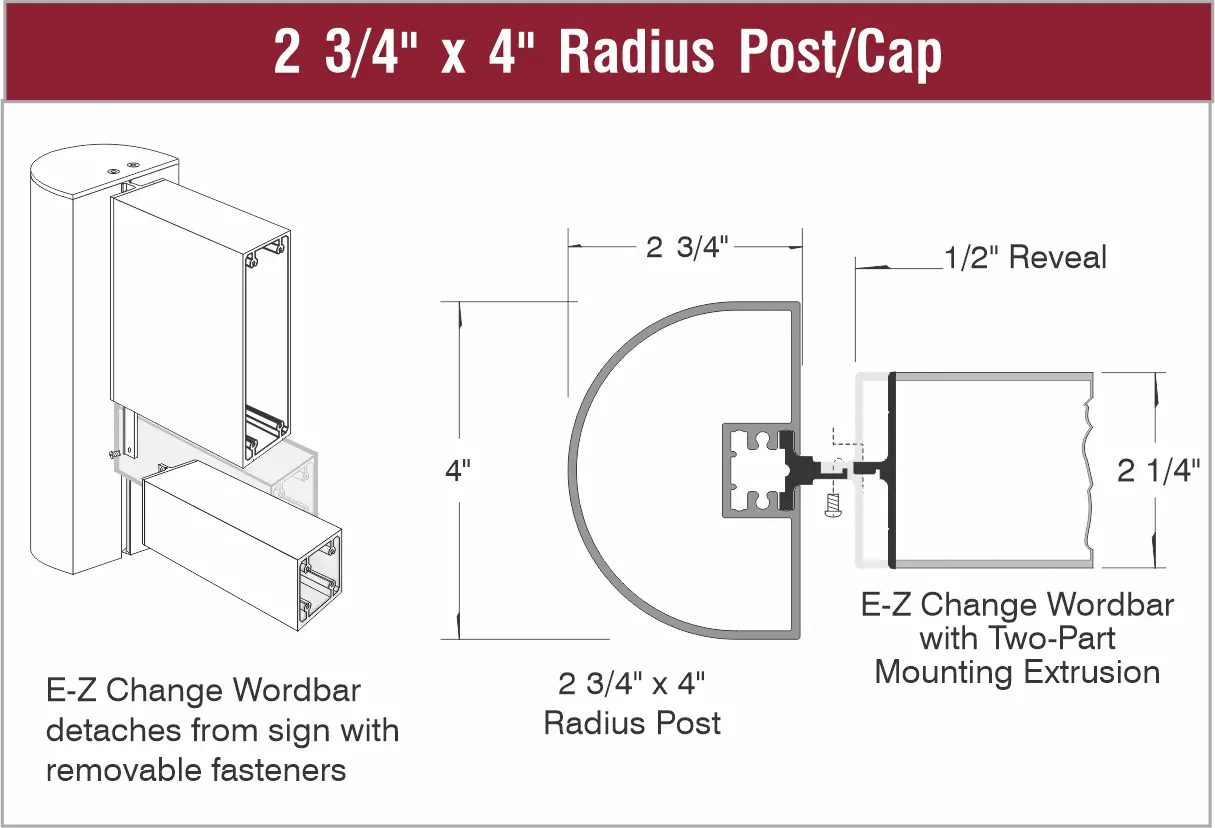

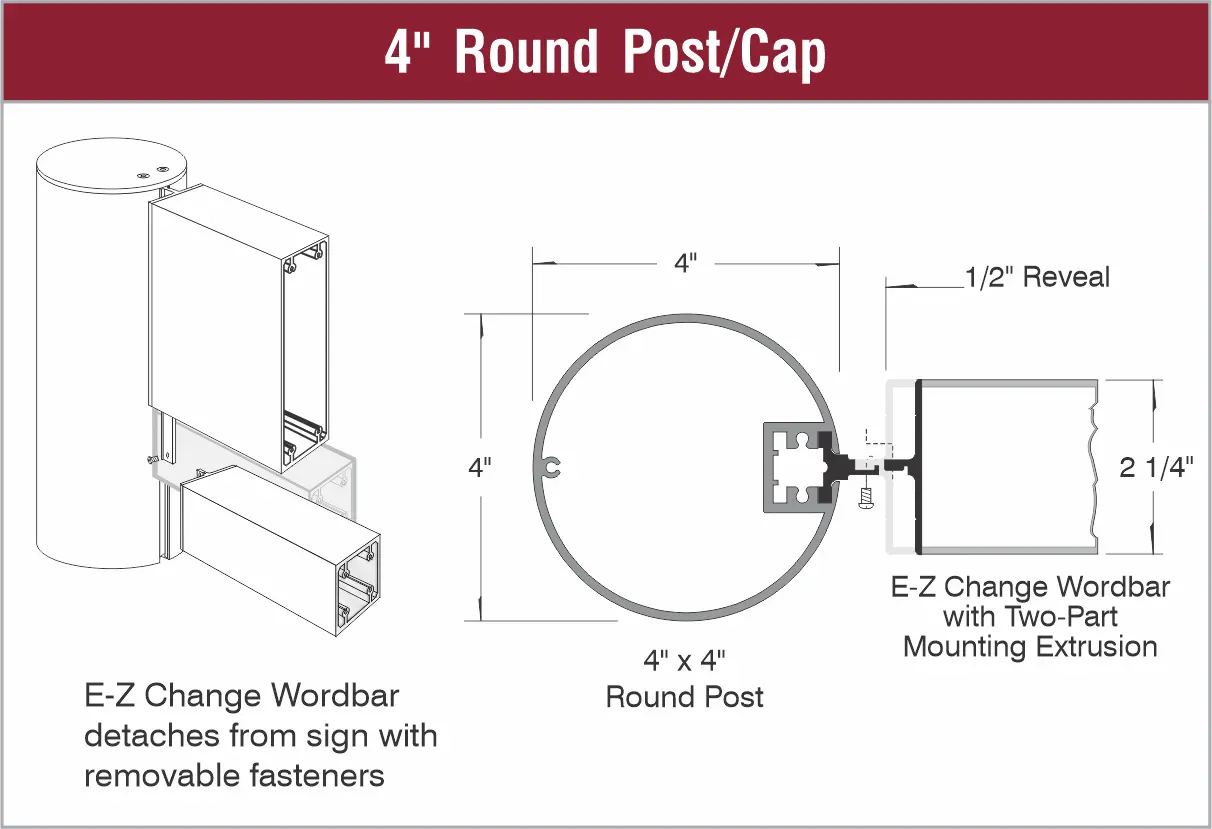

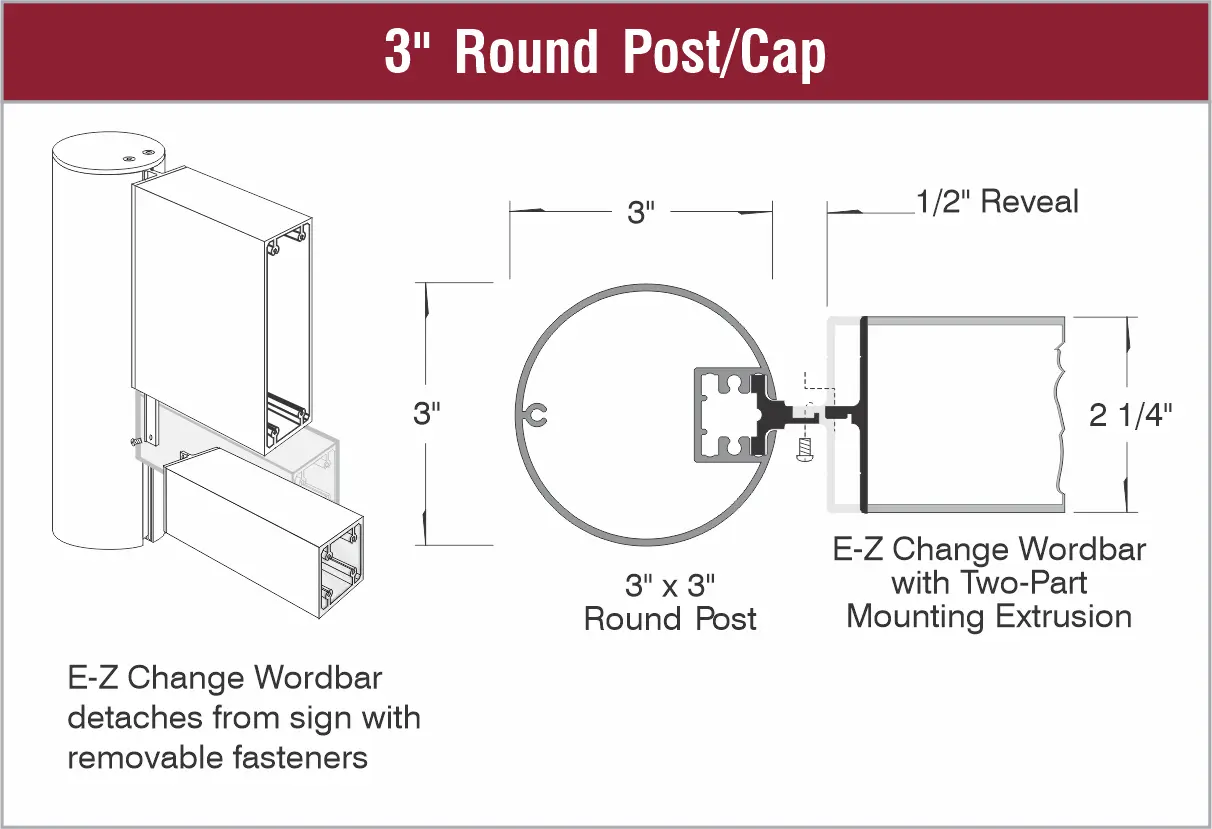

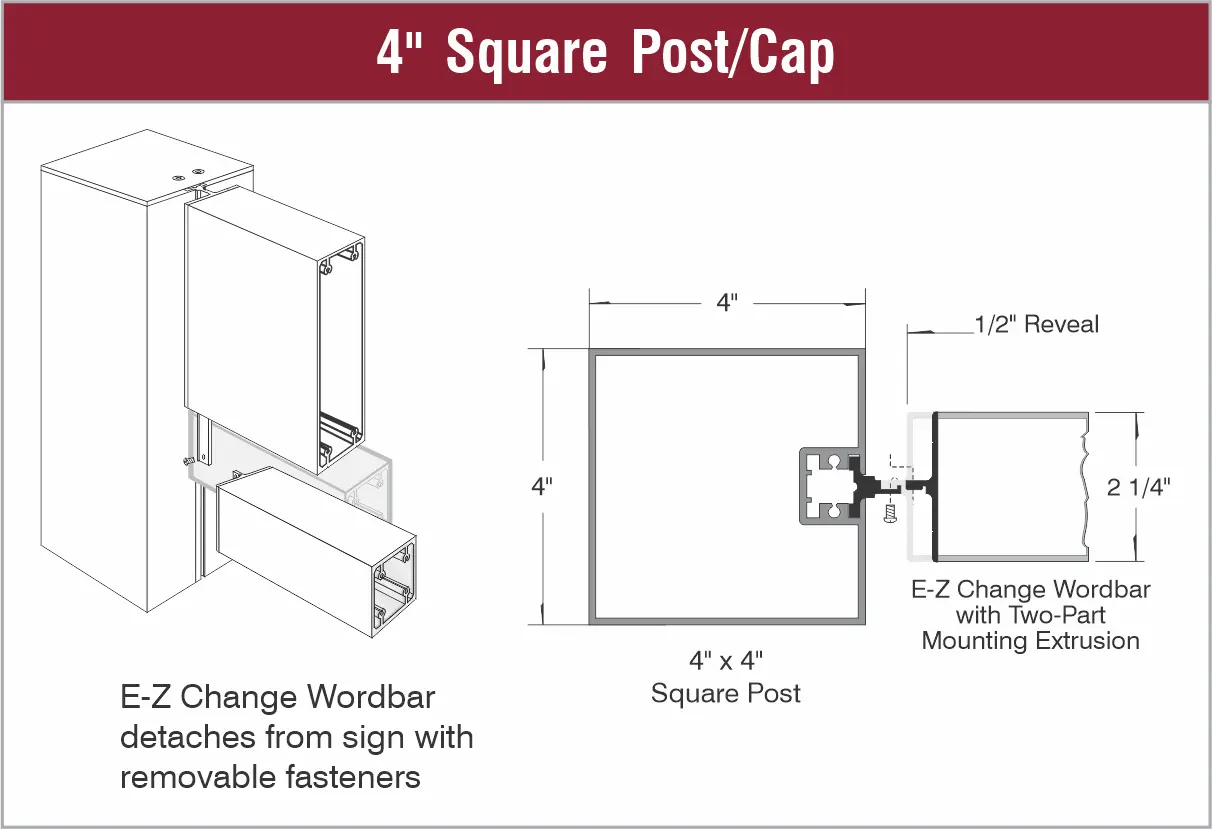

Post and Post Caps

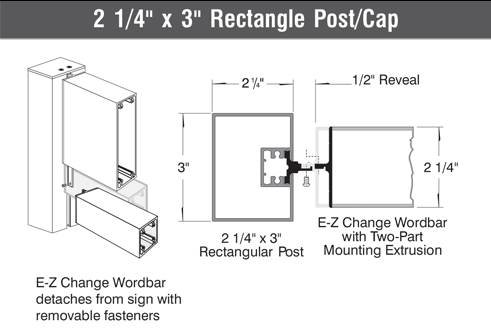

E-Z Change Wordbar Technical Detail

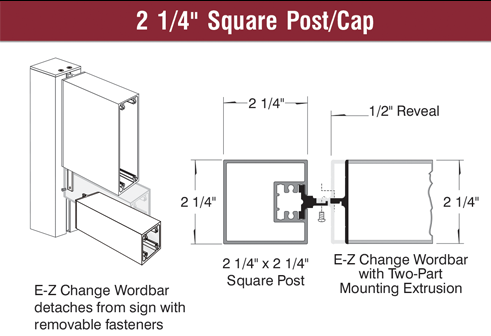

  1. Standard 2-1/4" x 3" rectangular post
  2. Post slot offers 1/2" reveal
  3. Injection molded post cap
  4. Two piece mounting extrusion
  5. 2-1/4" Wordbar extrusion
  6. 6" Wordbar extrusion
  7. Locking square with set screw

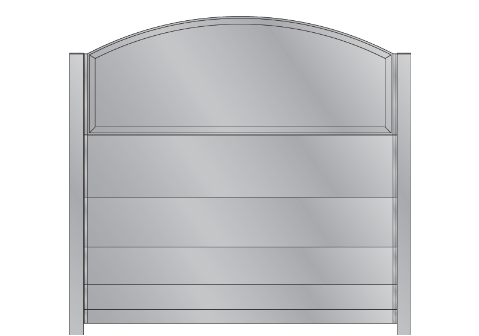

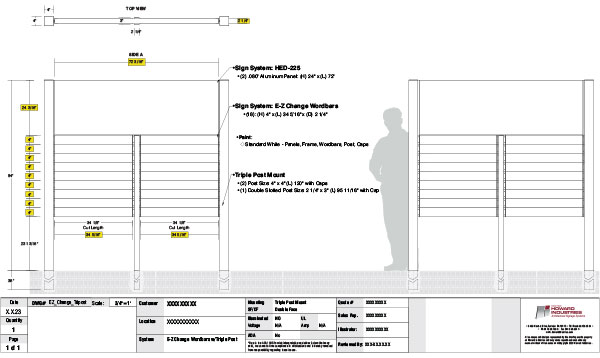

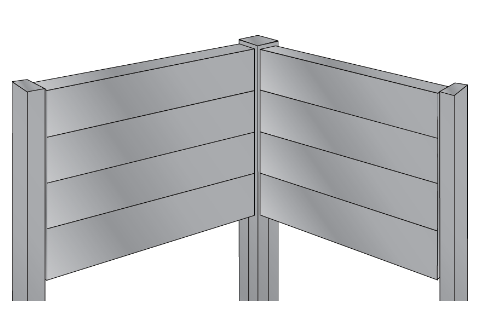

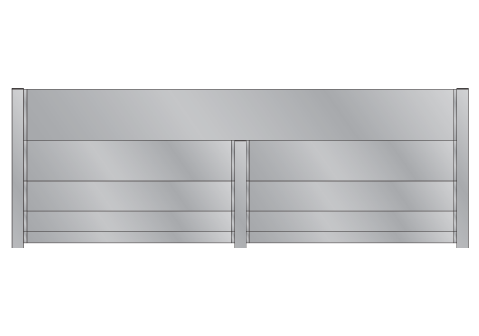

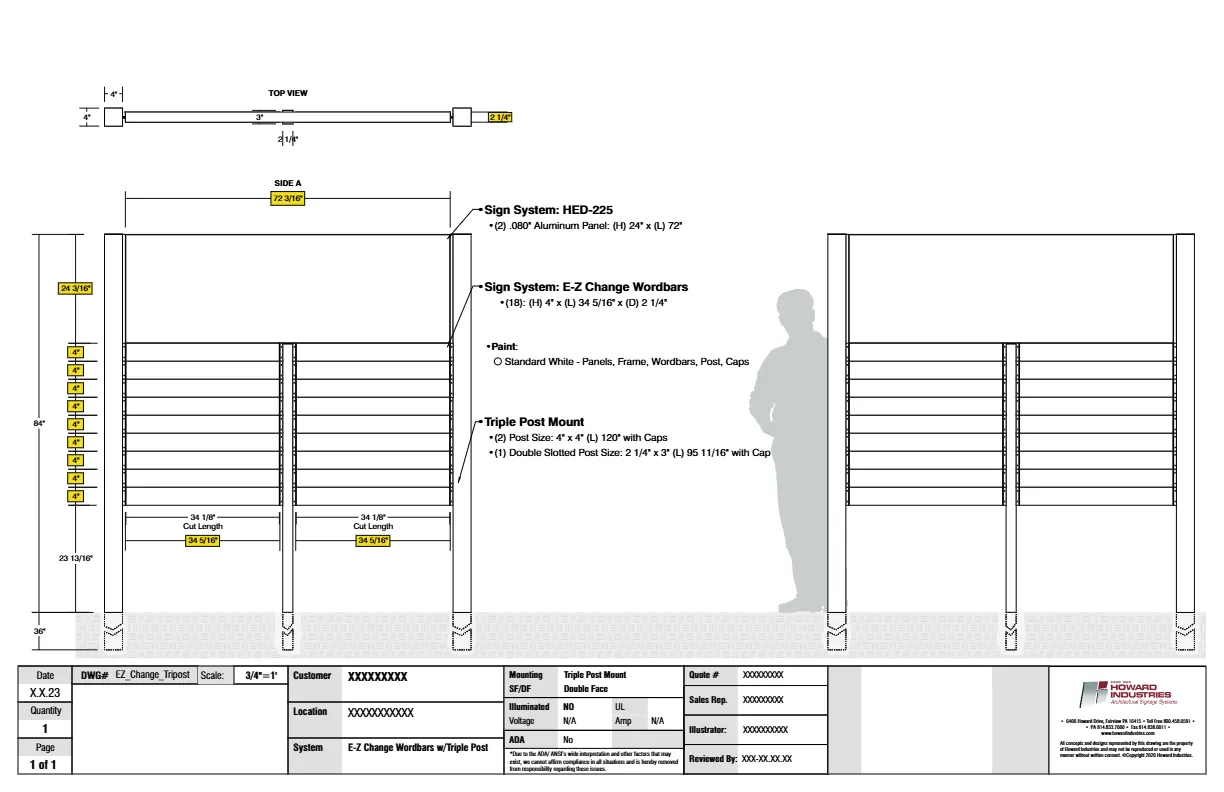

Popular Sign Configurations

Max Size:
120"

Standard Wordbar Heights:
2-1/4", 4", 6", 8", 10", 12", 15", and 18"

Mounting Options:
Double Post
Wall

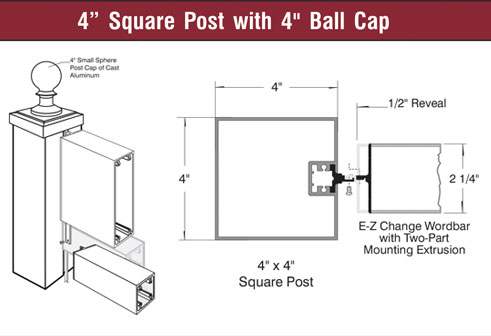

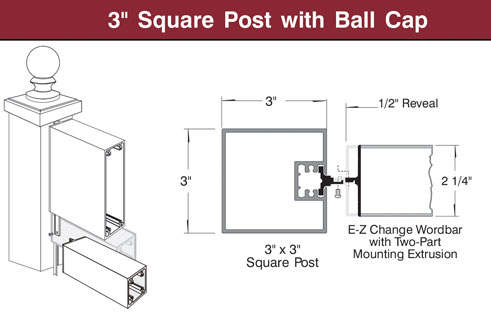

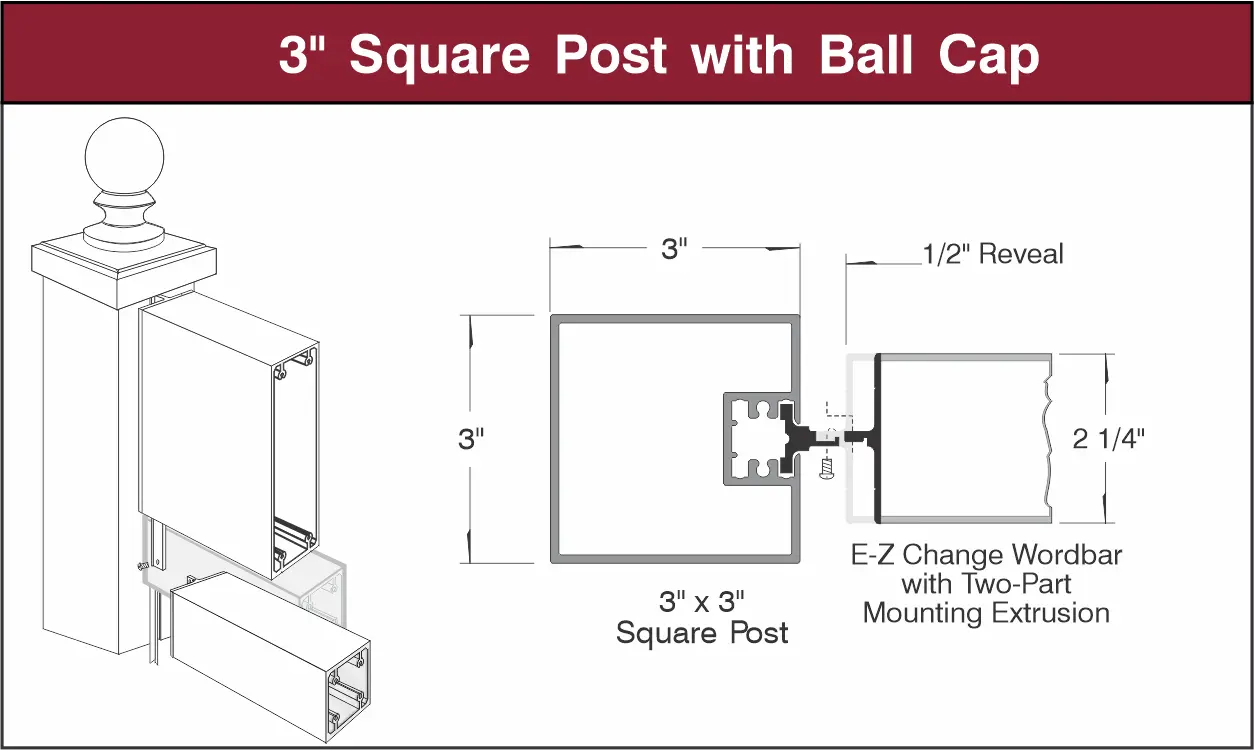

Decorative Post Caps
