HED-400

Standard or Flush Face Signage System

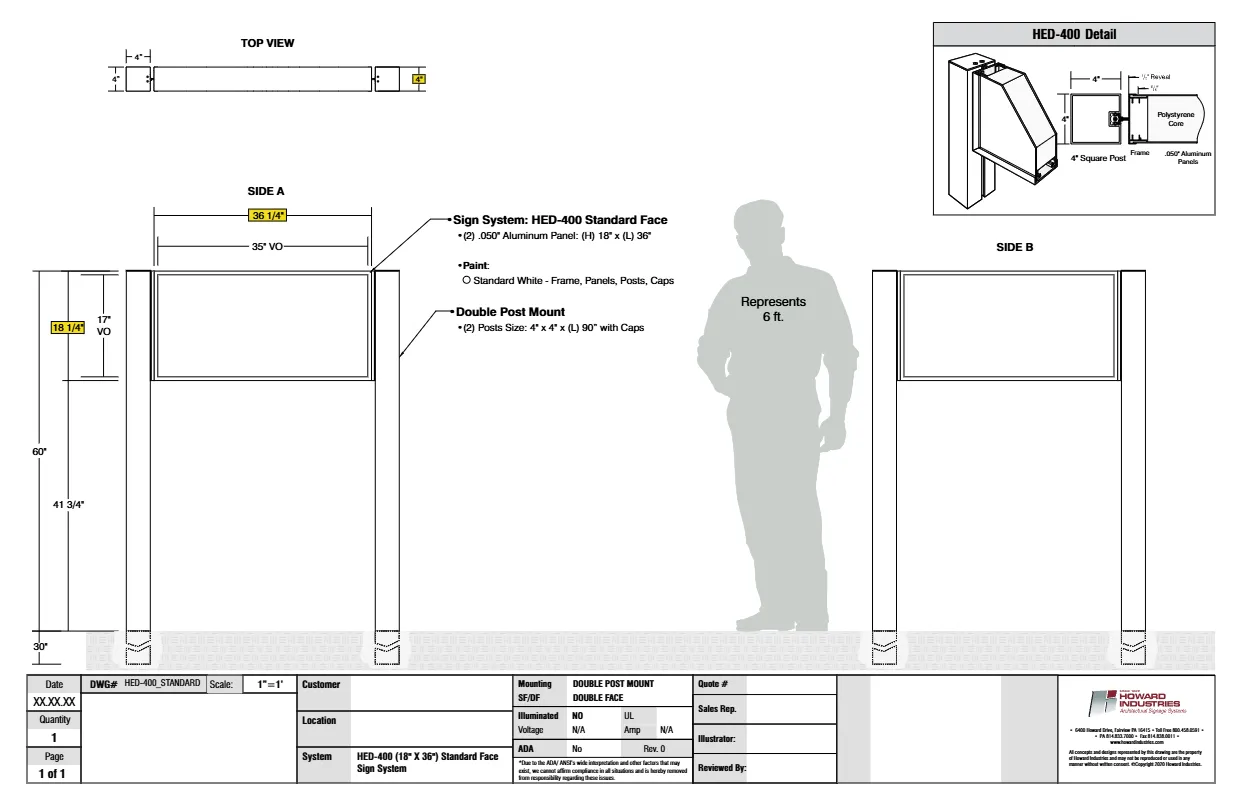

The HED-400 post and double panel system features a traditional 4" cabinet style frame with two message panels chemically bonded to a 3-3/4" polystyrene core. The frame assembly slides into our slotted 4" x 4" square mounting posts, 4" radius the frame flush or with a 1/2" reveal and use concealed locking squares to hold the frame securely in place.





Often Used For

  • Directional Signage
  • Parking Signage
  • Regulatory Signage
  • Primary Site Identification
  • Secondary Site Identification

Customizable to Fit Your Signage Needs

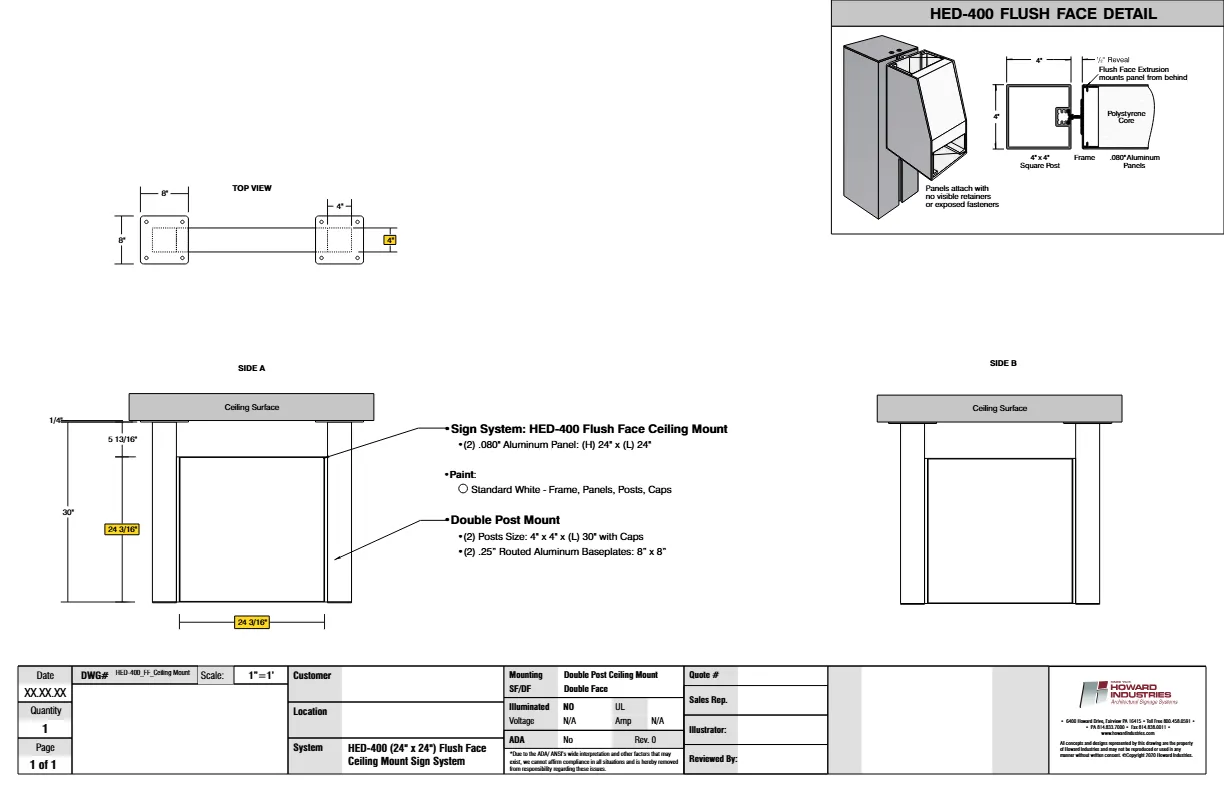

These signs are available in double post, internal post, flag, ceiling, and wall mount configurations. All stock material finish is off-the-shelf primer white or take advantage of our color matching capabilities and/or custom color options.

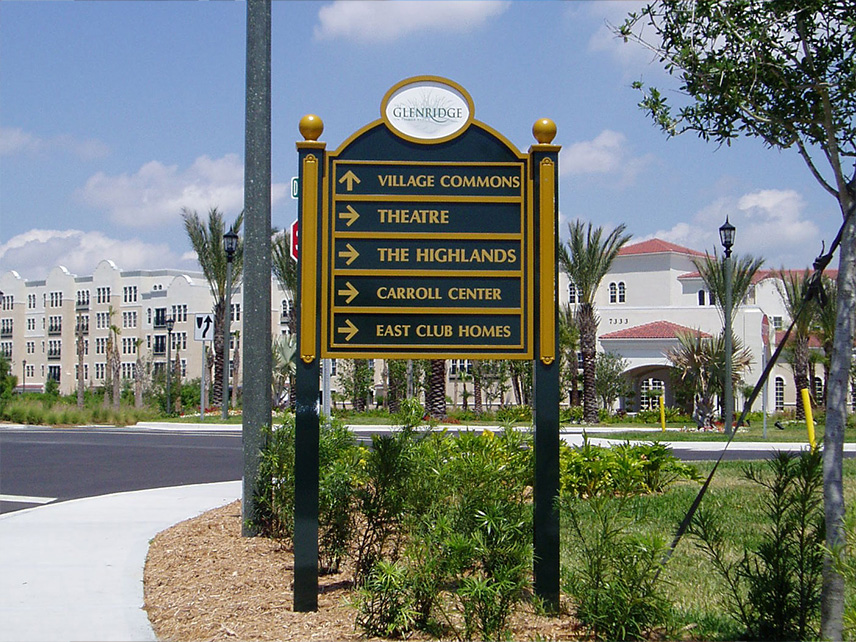

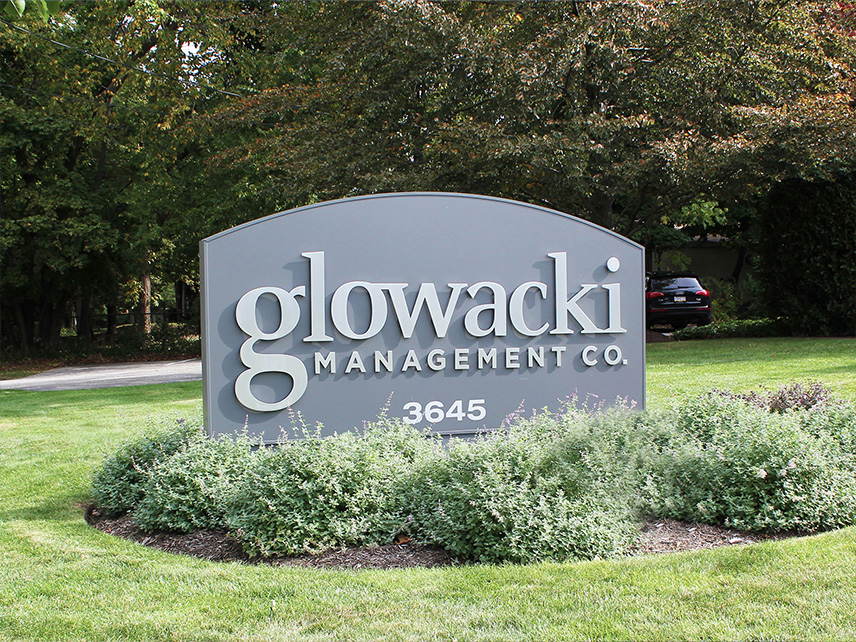

hed 400 cobblestone
Tech Specs

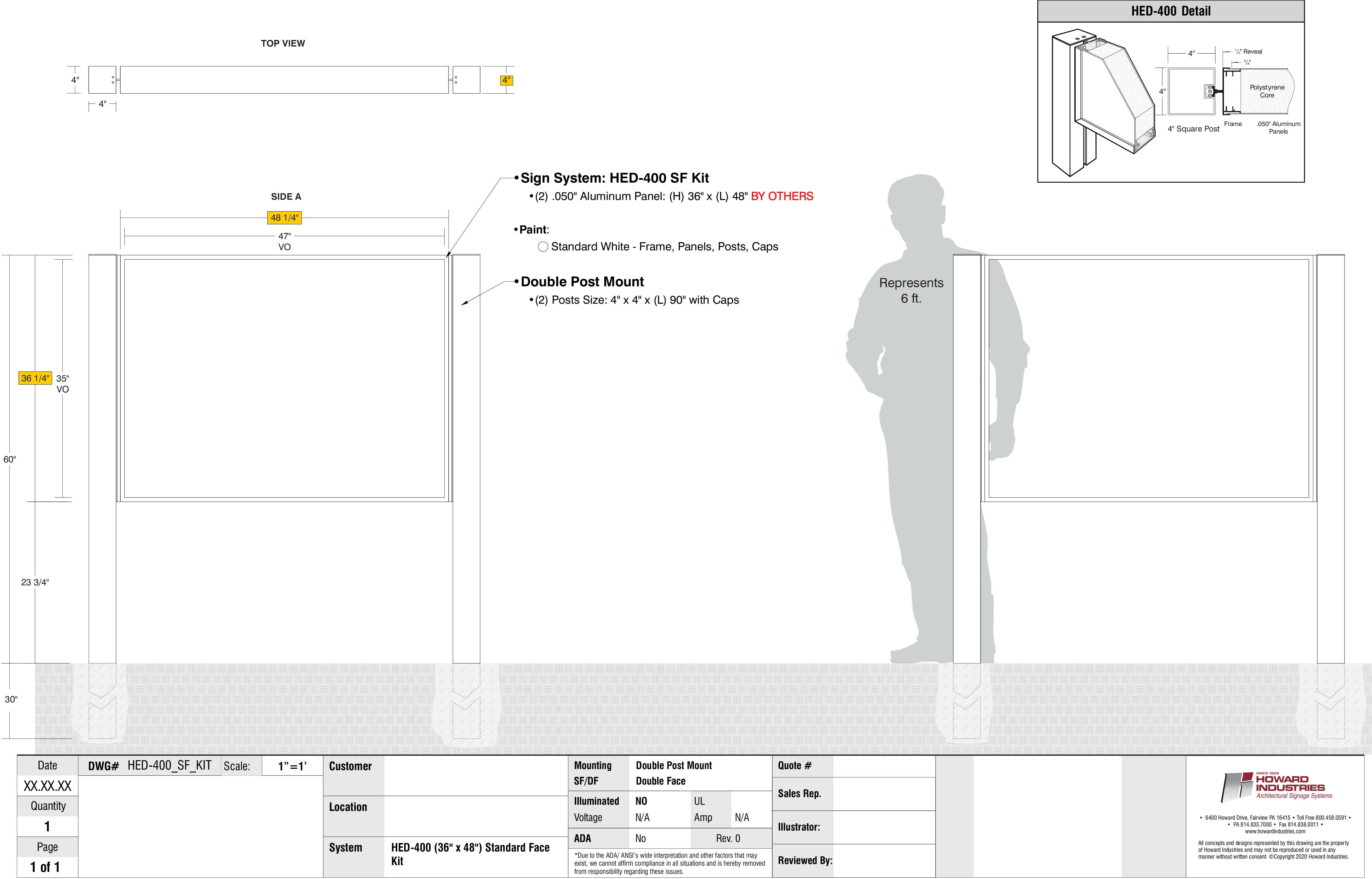

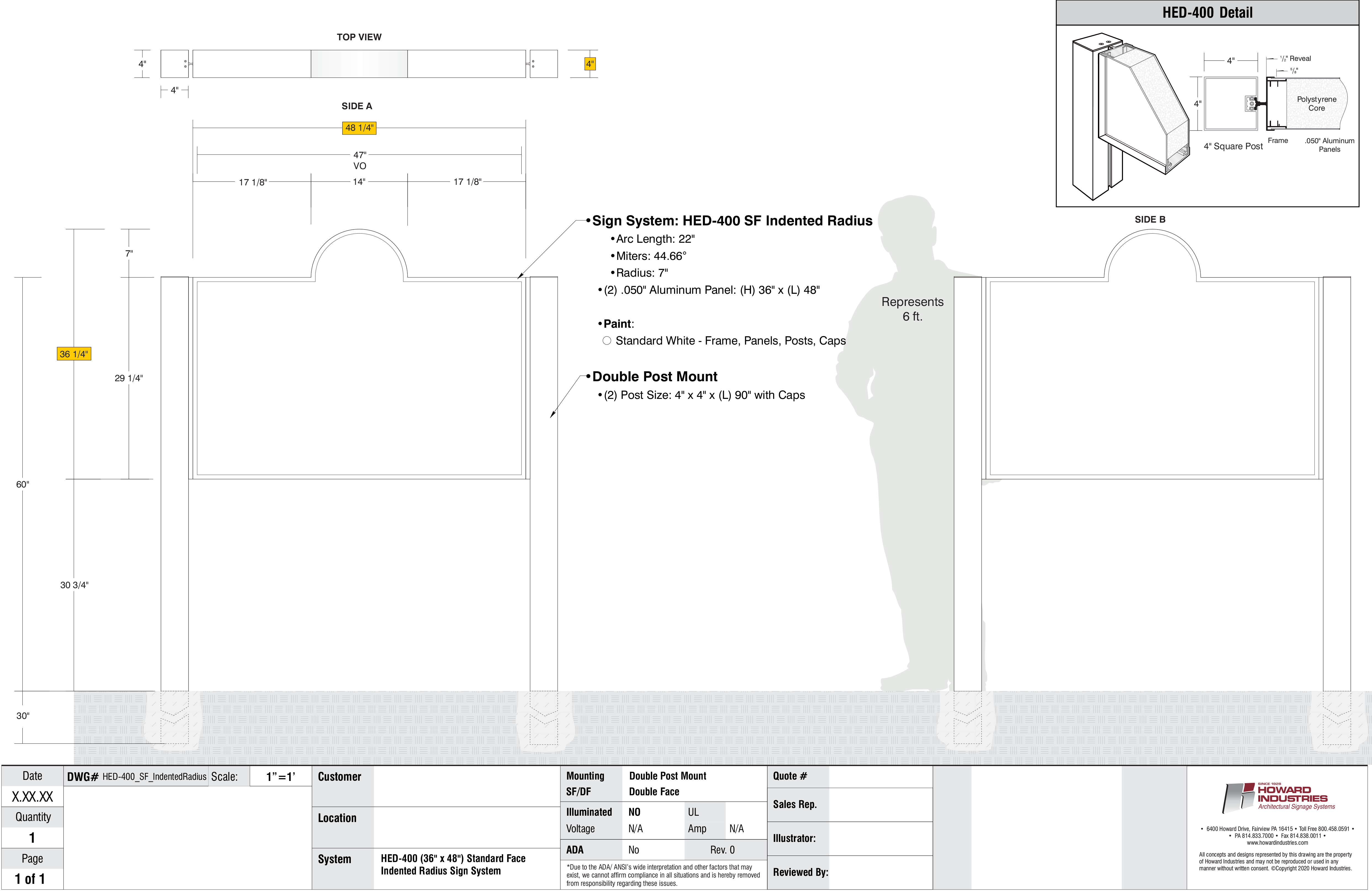

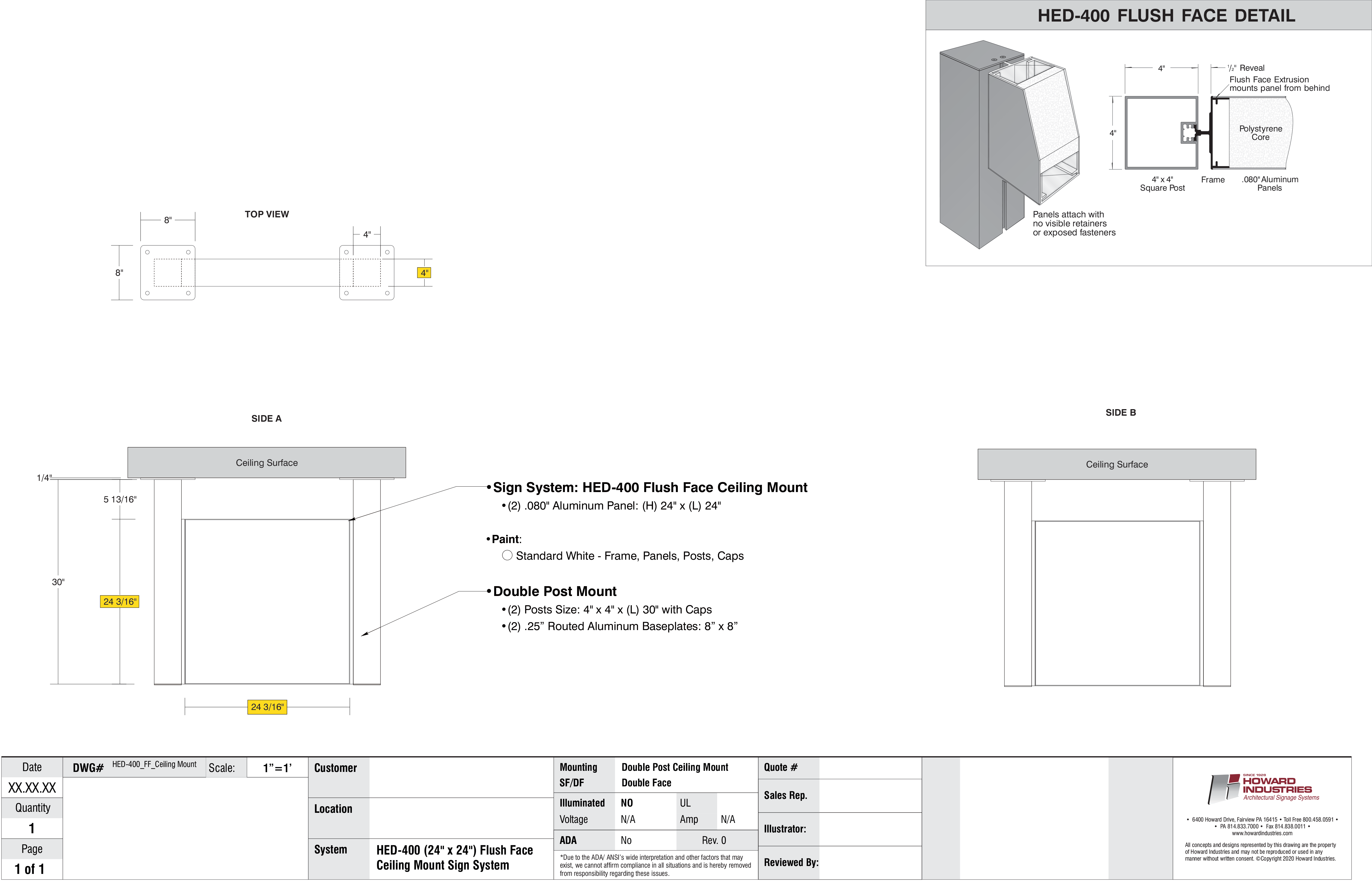

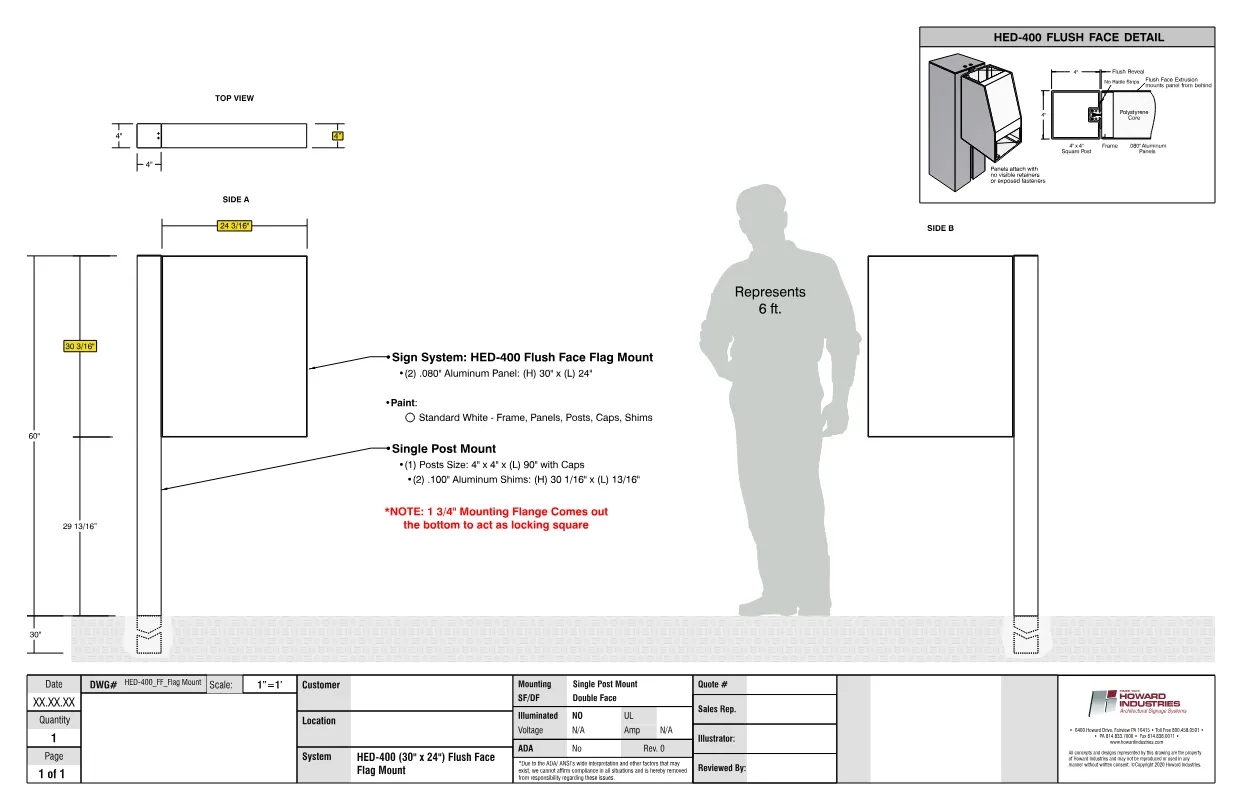

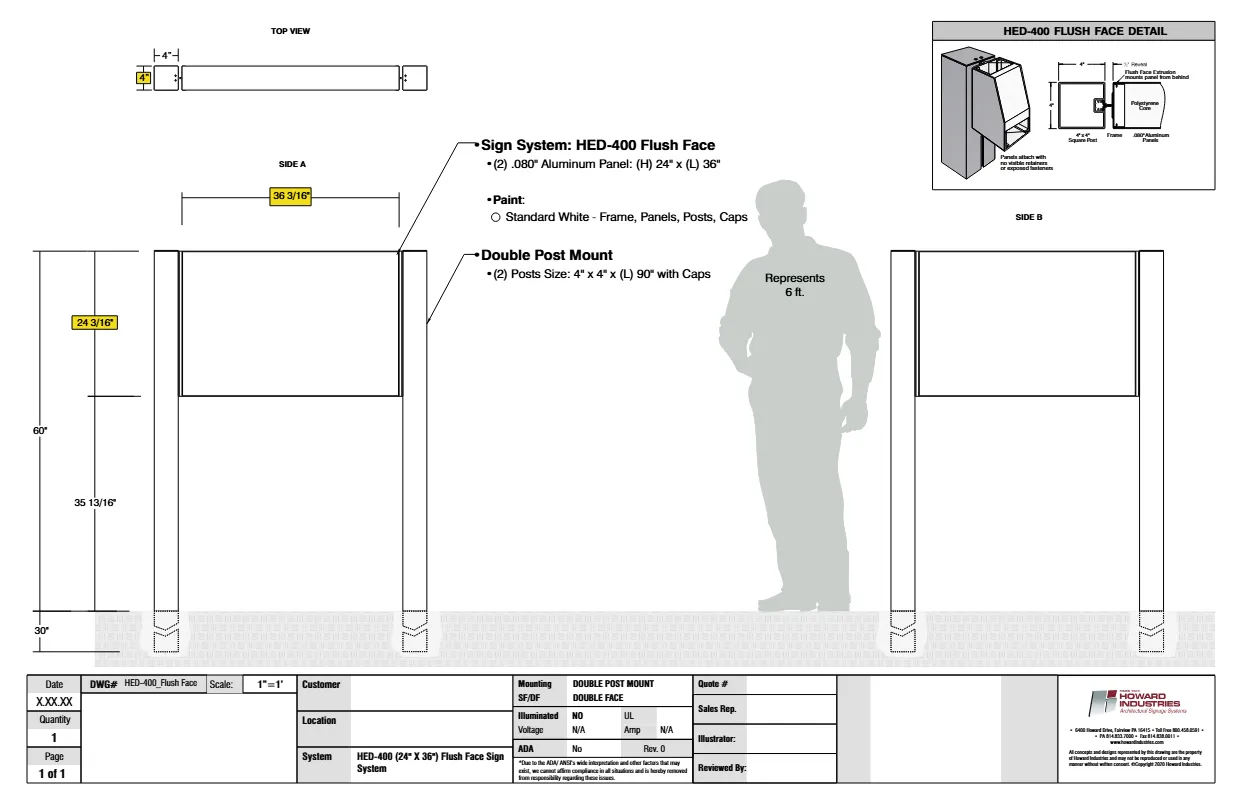

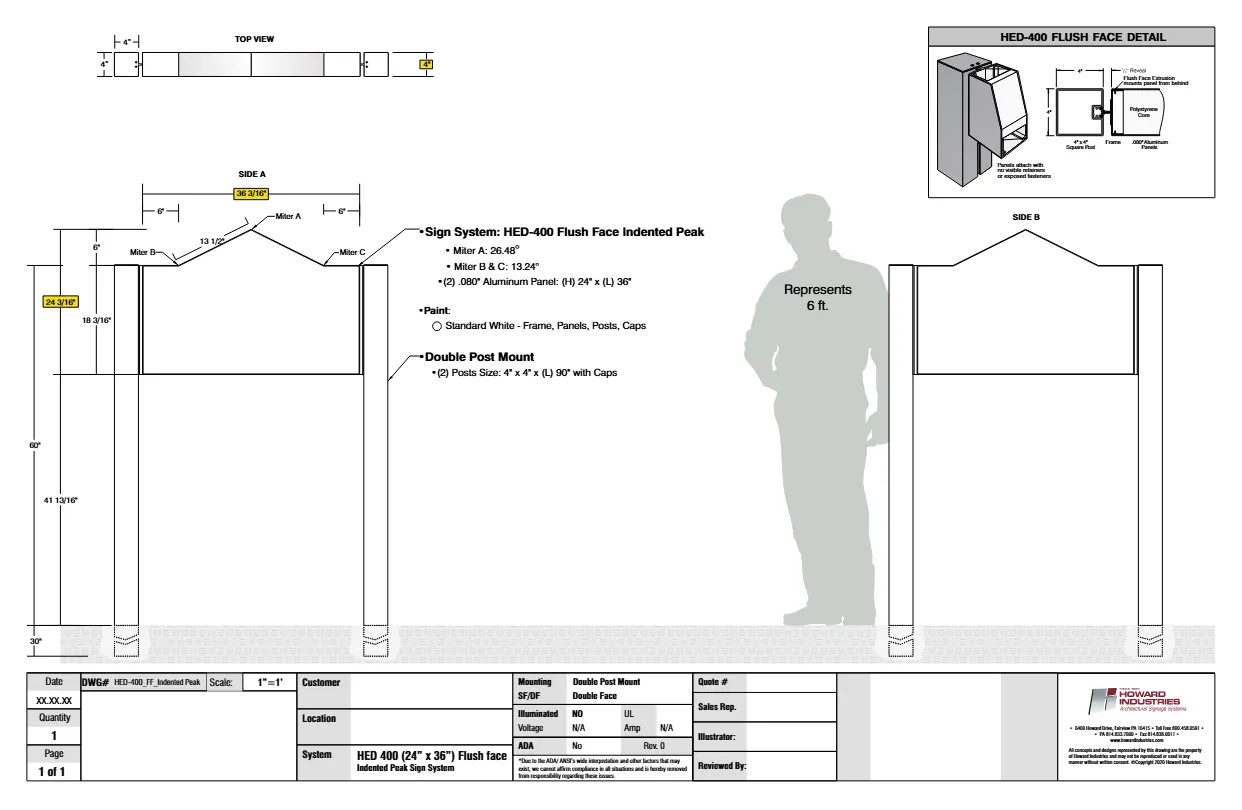

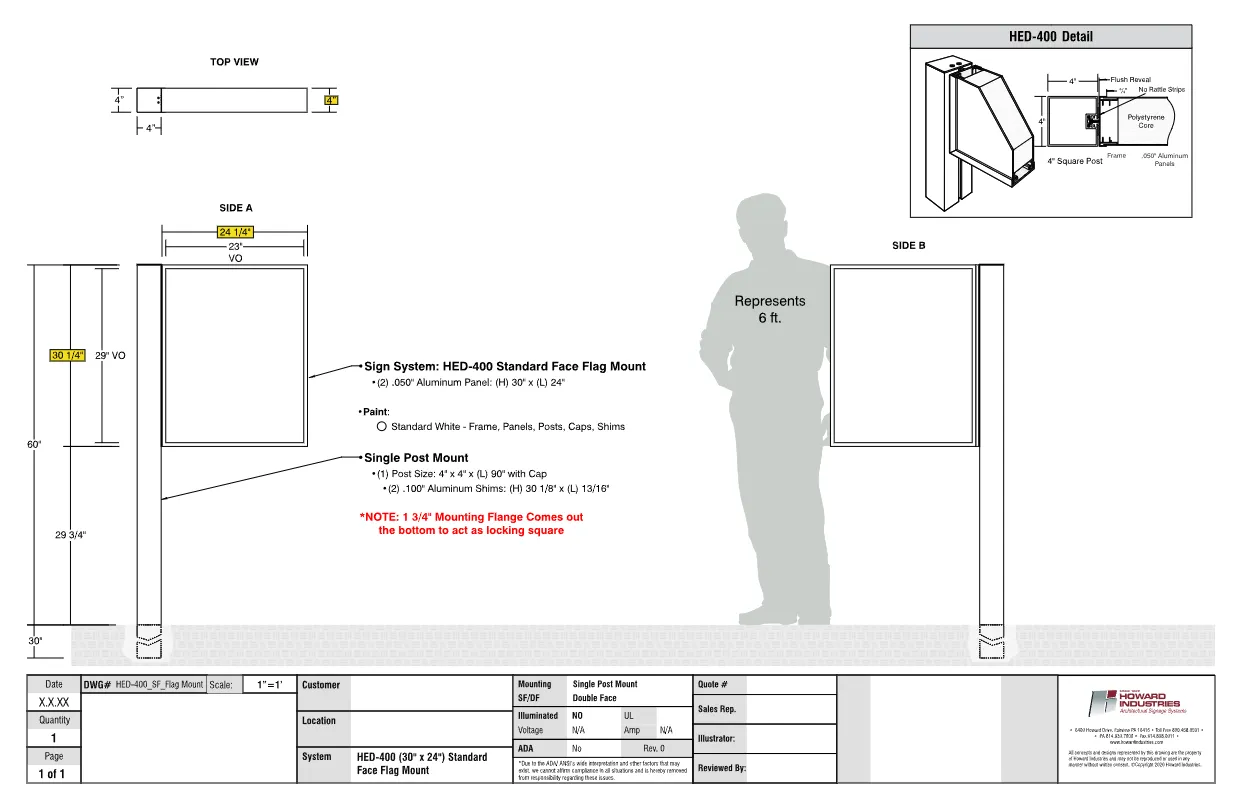

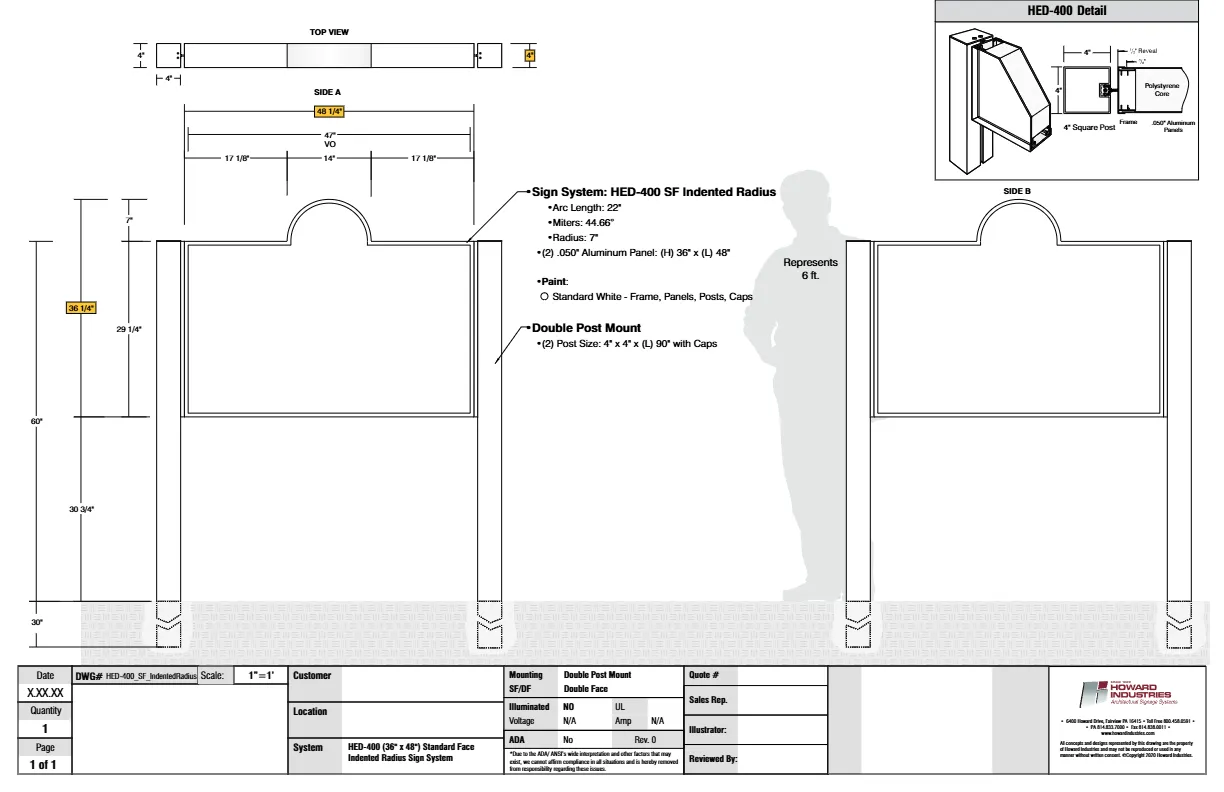

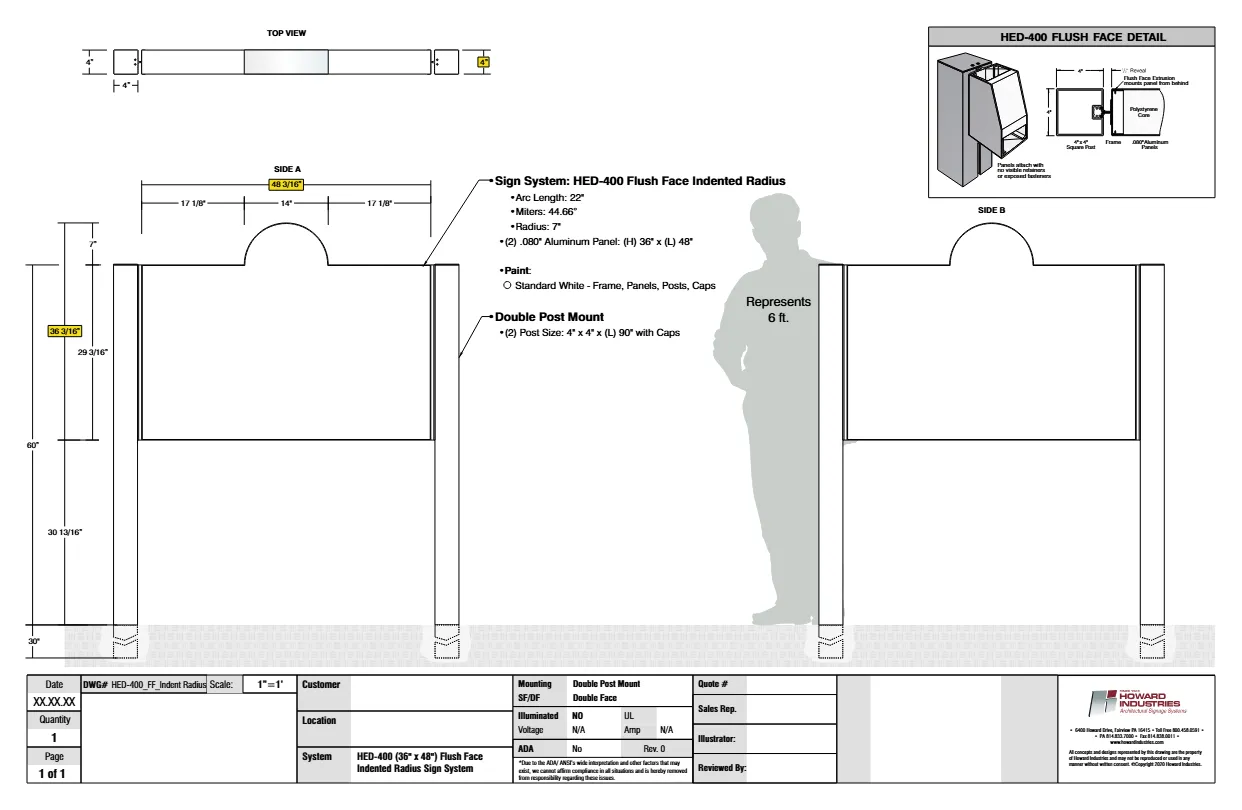

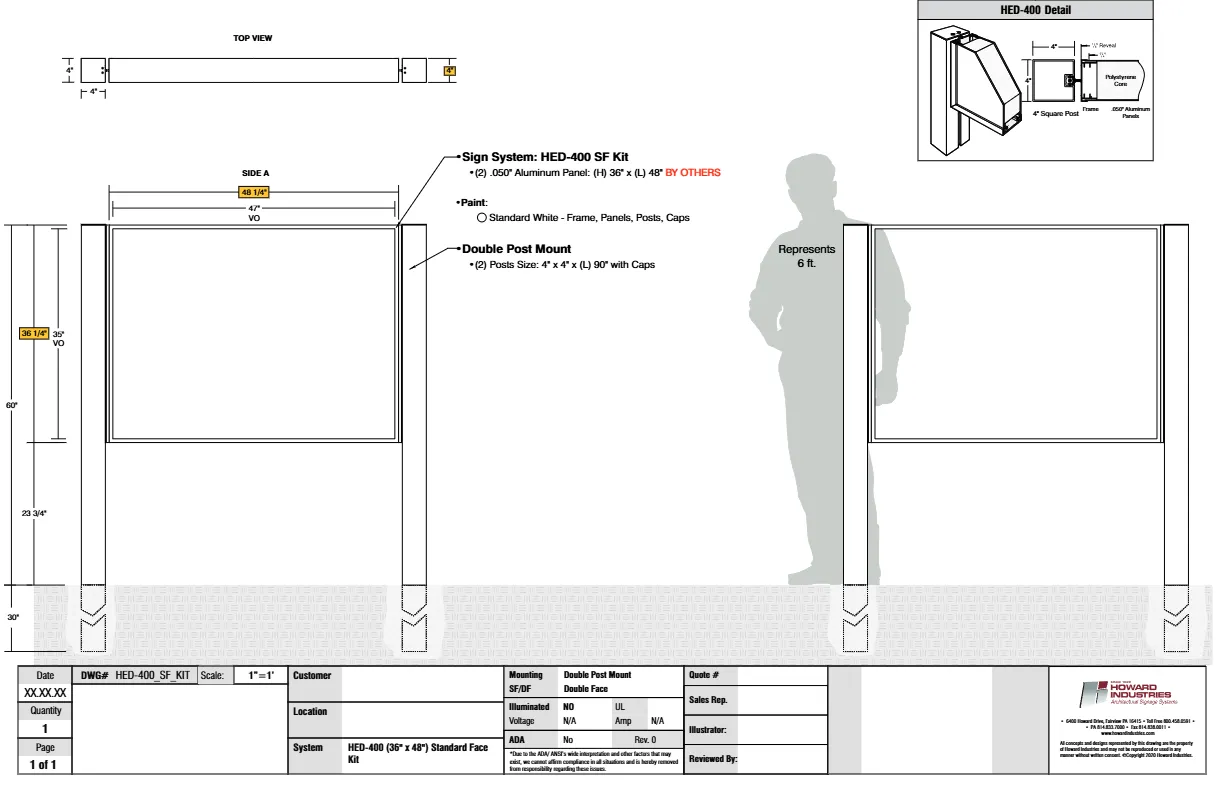

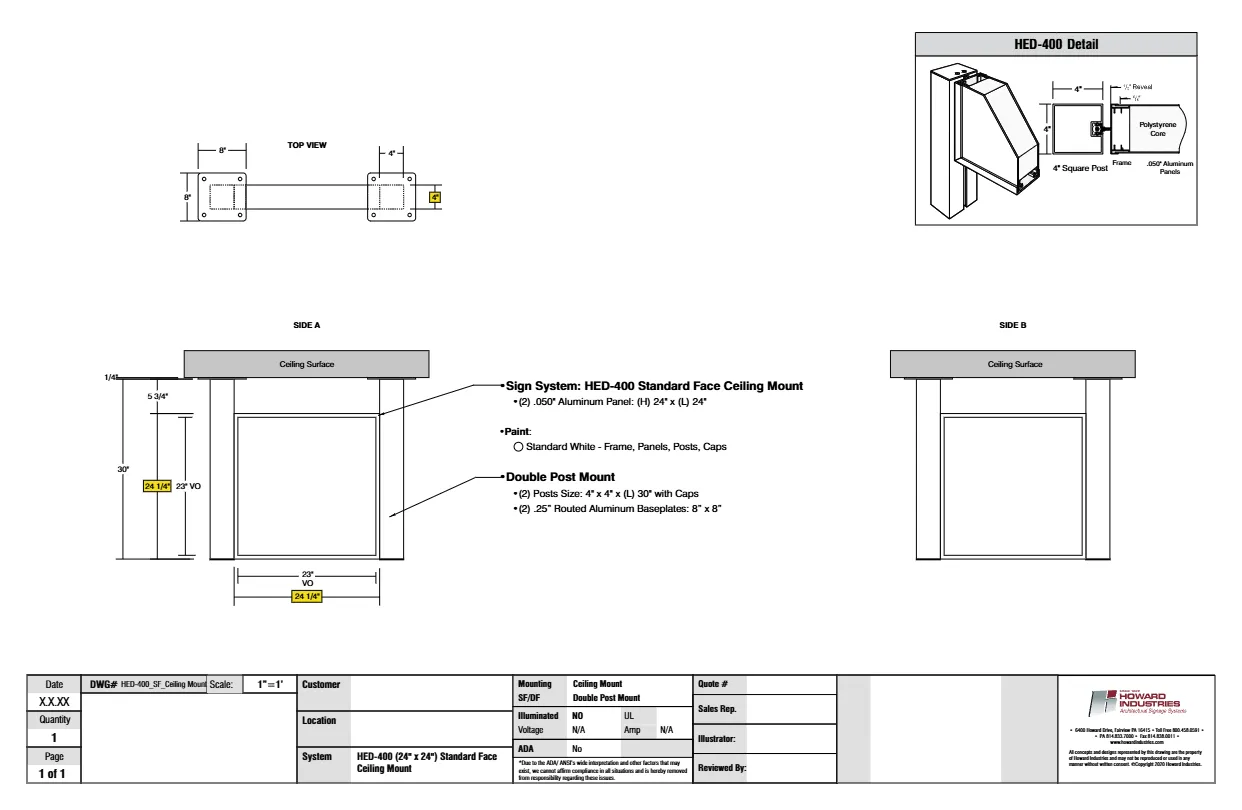

Drawings

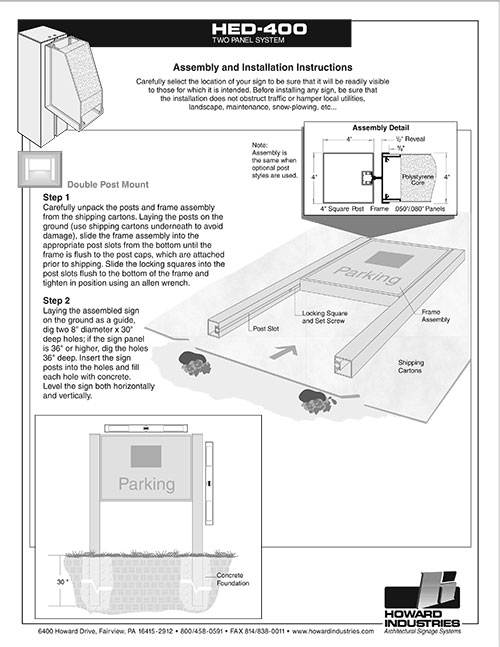

Installation
Videos

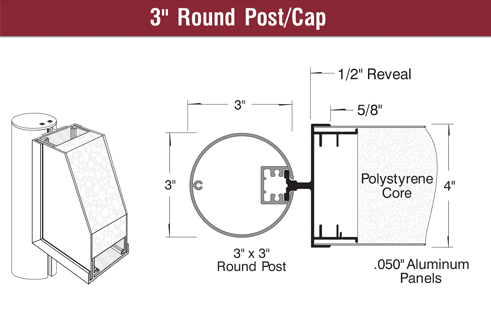

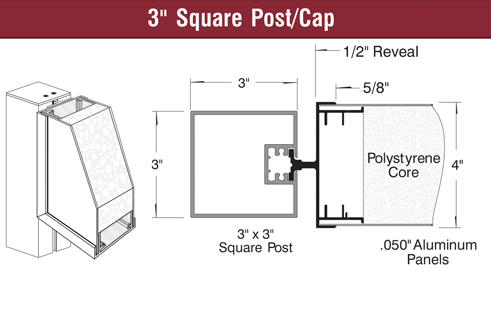

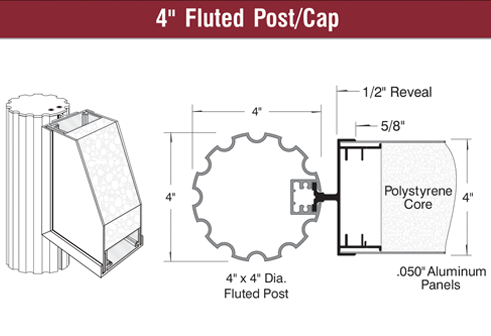

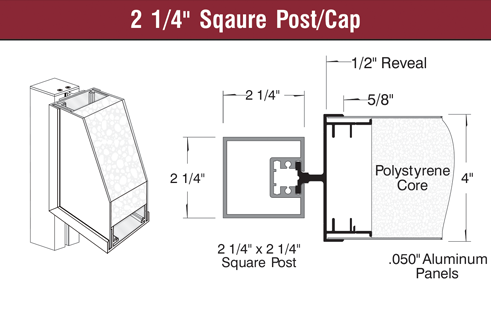

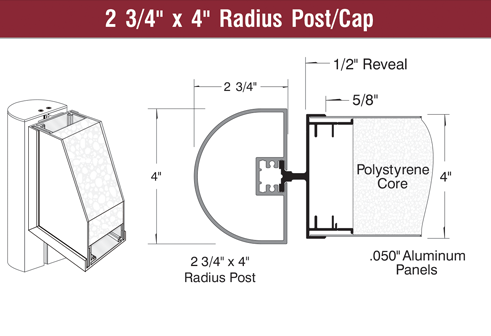

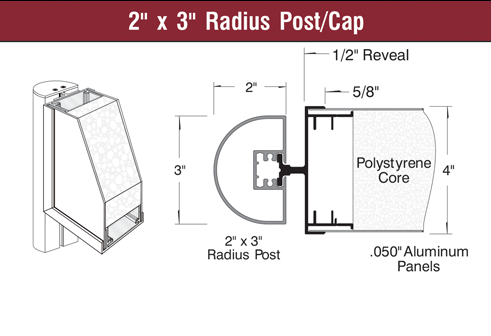

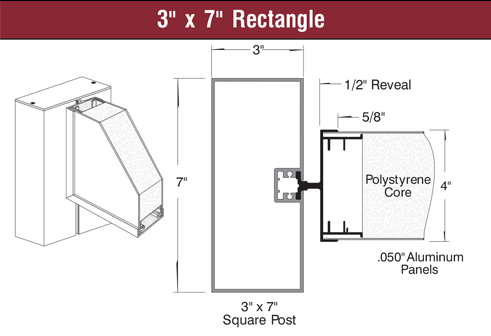

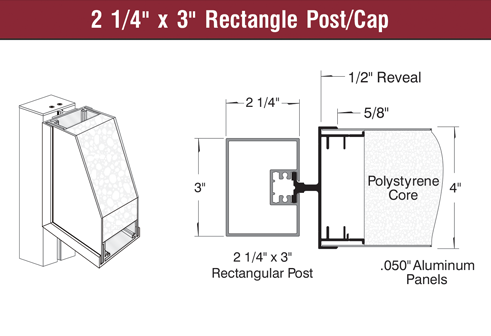

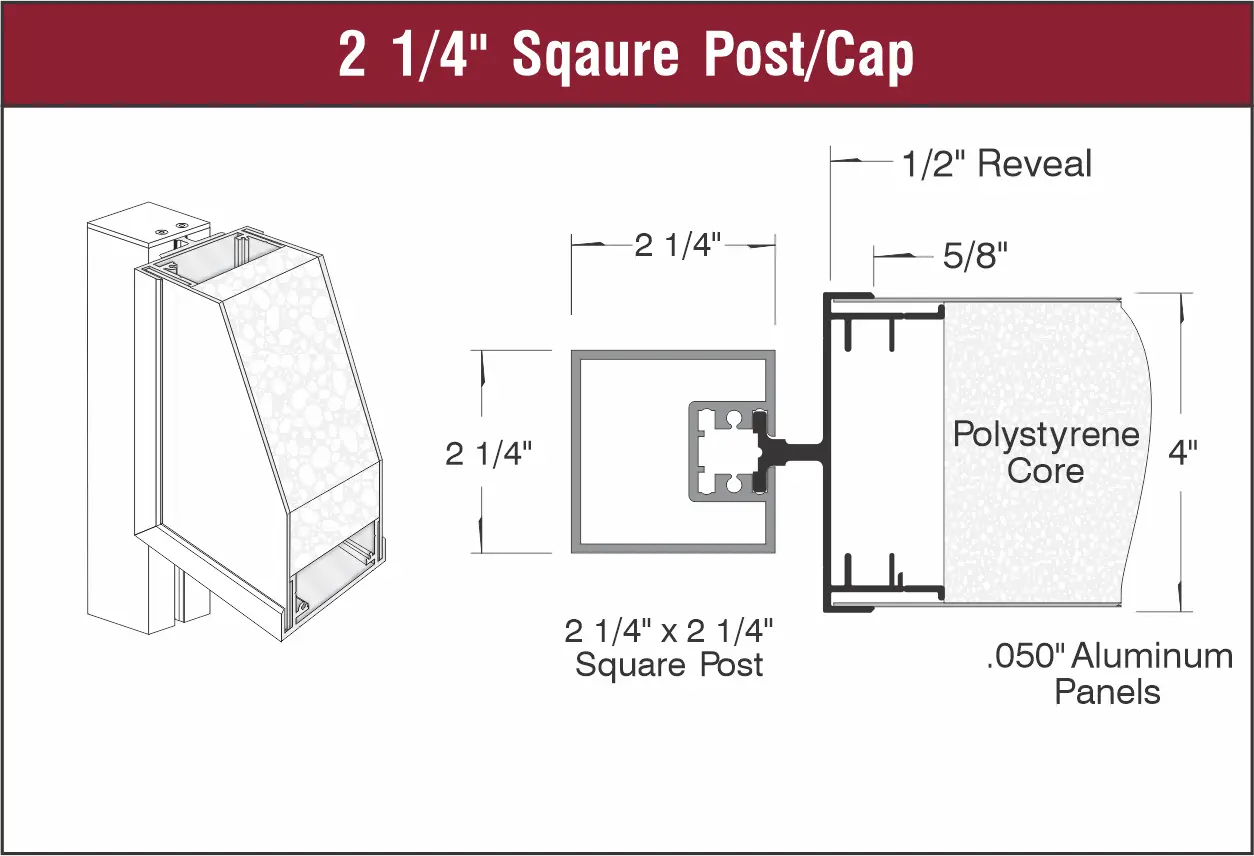

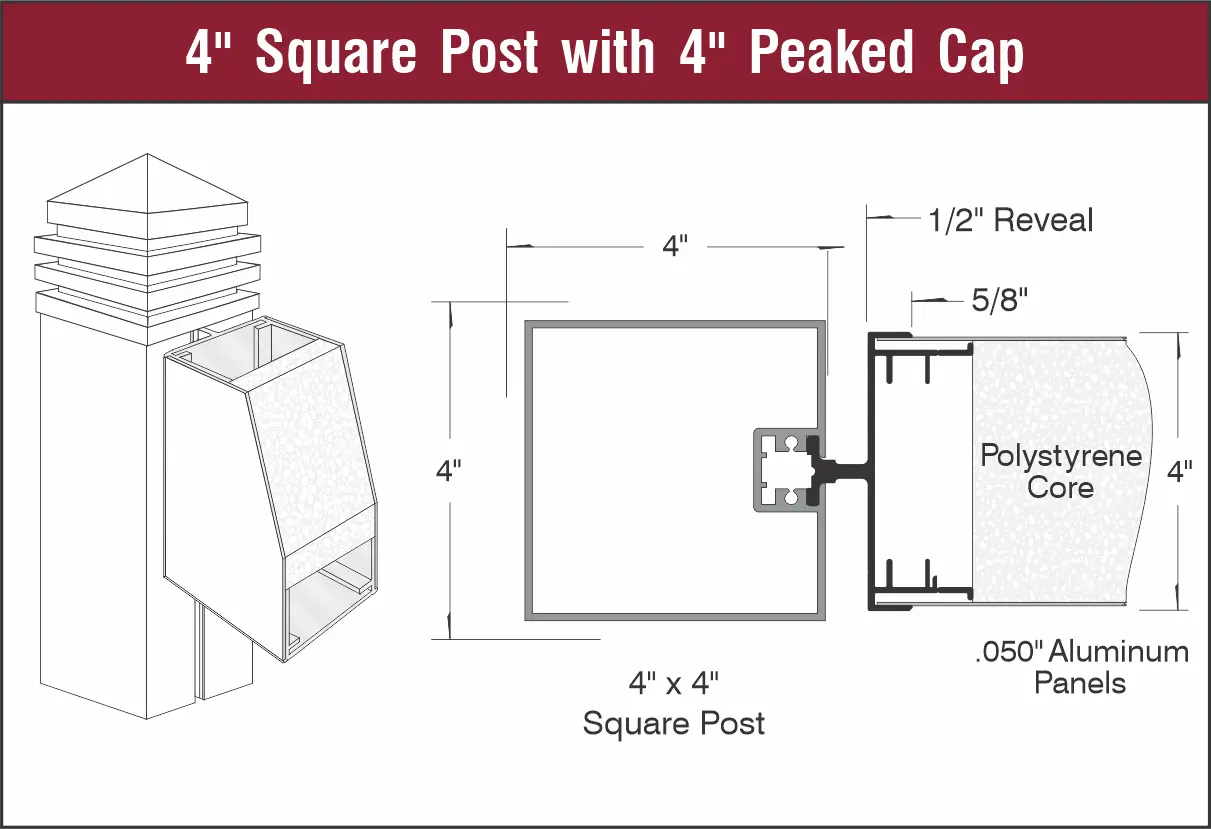

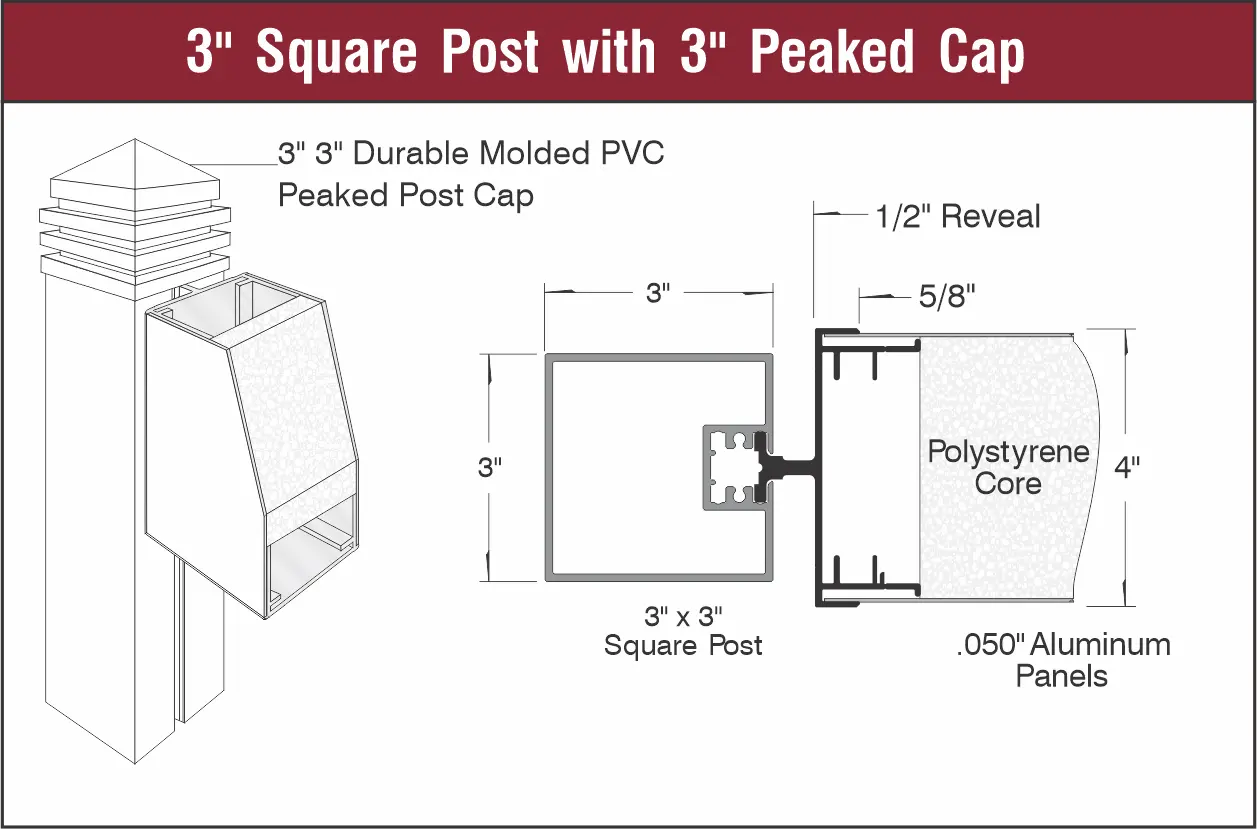

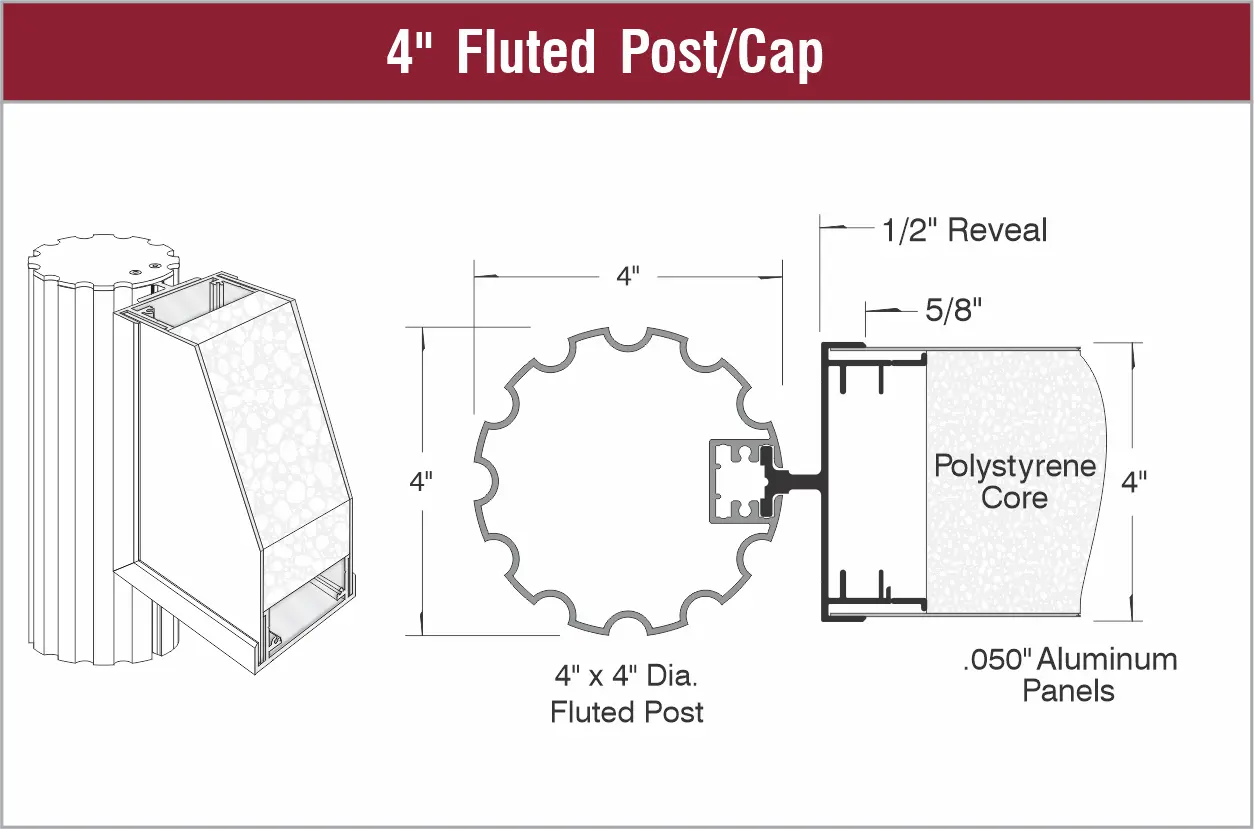

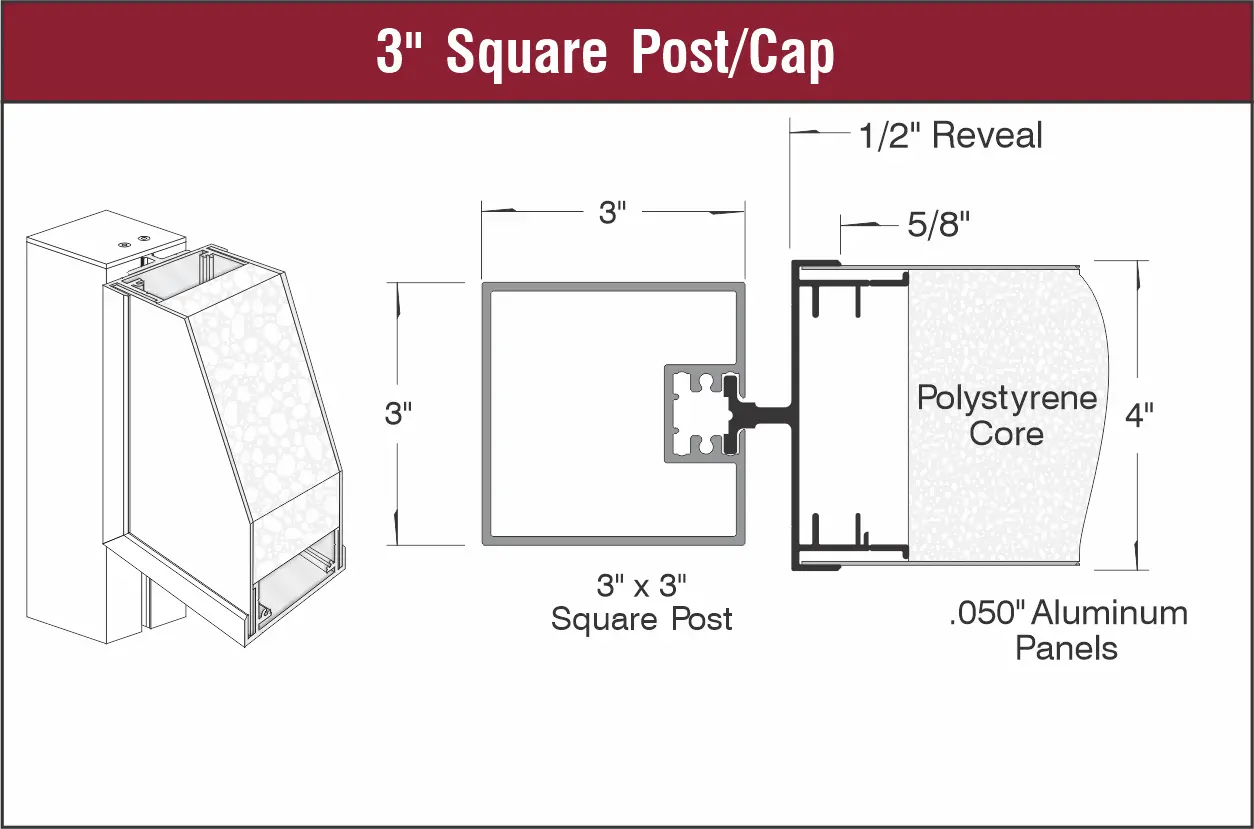

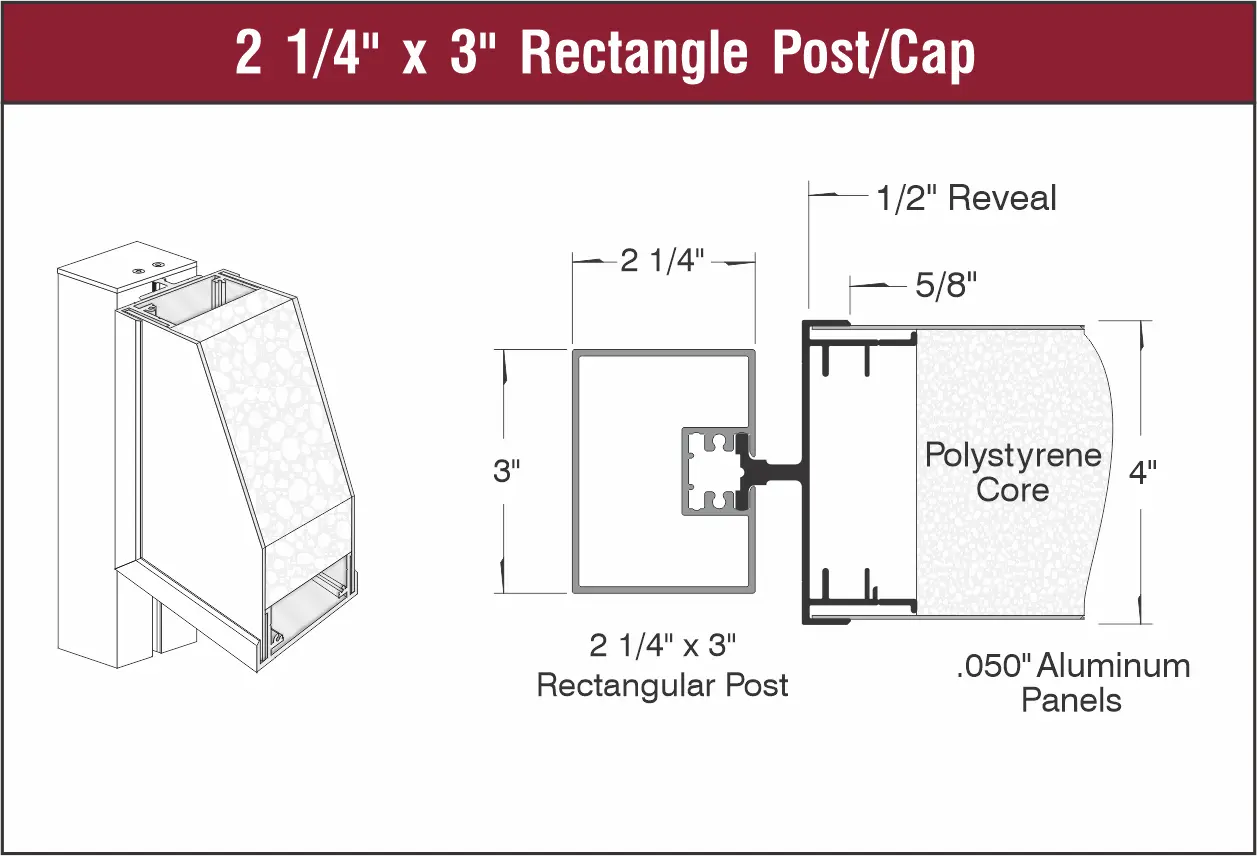

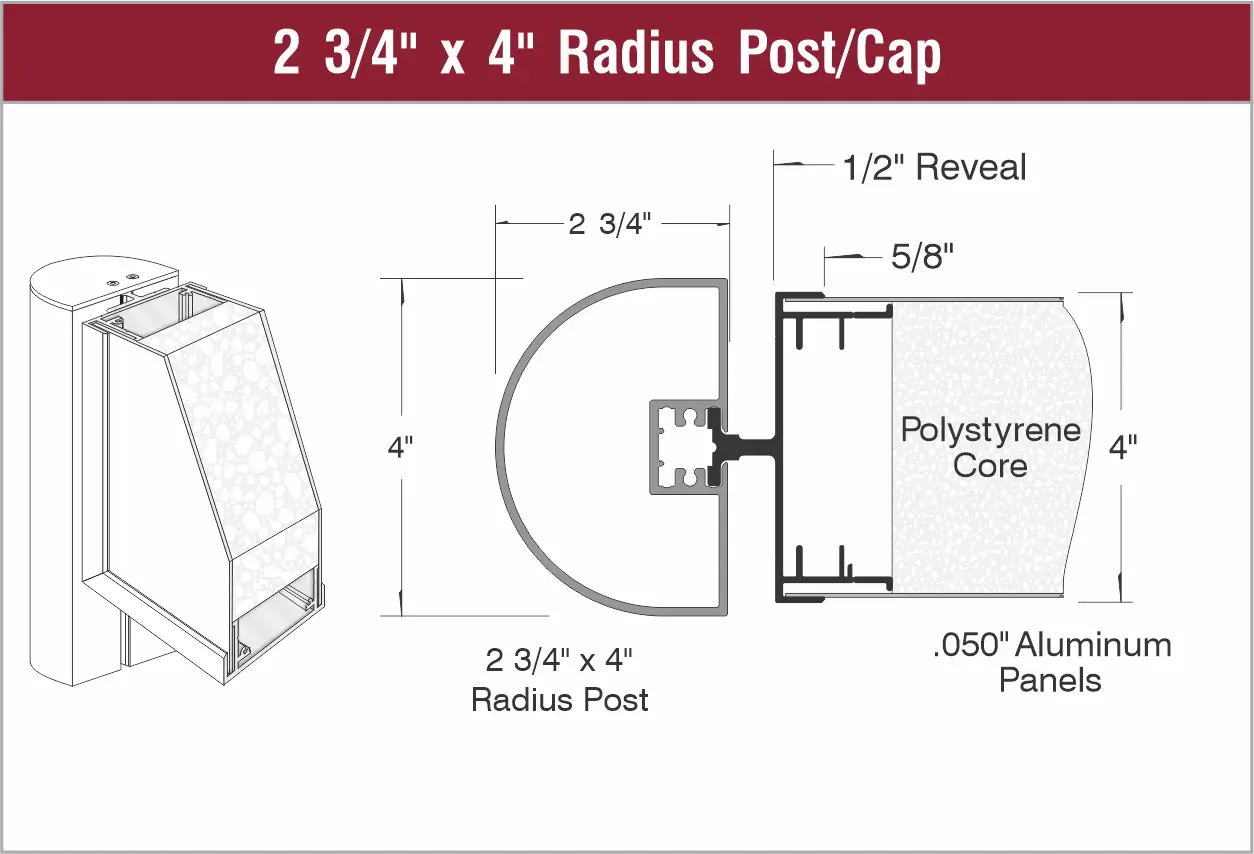

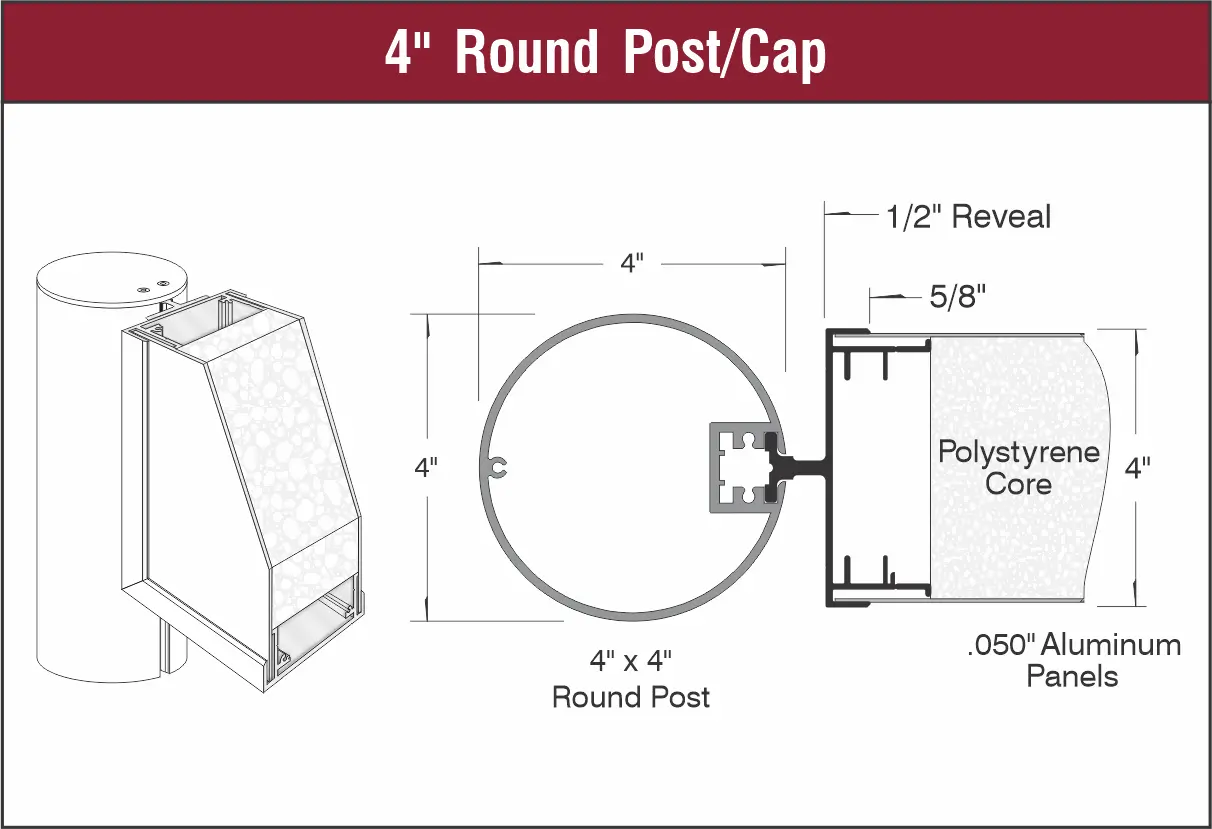

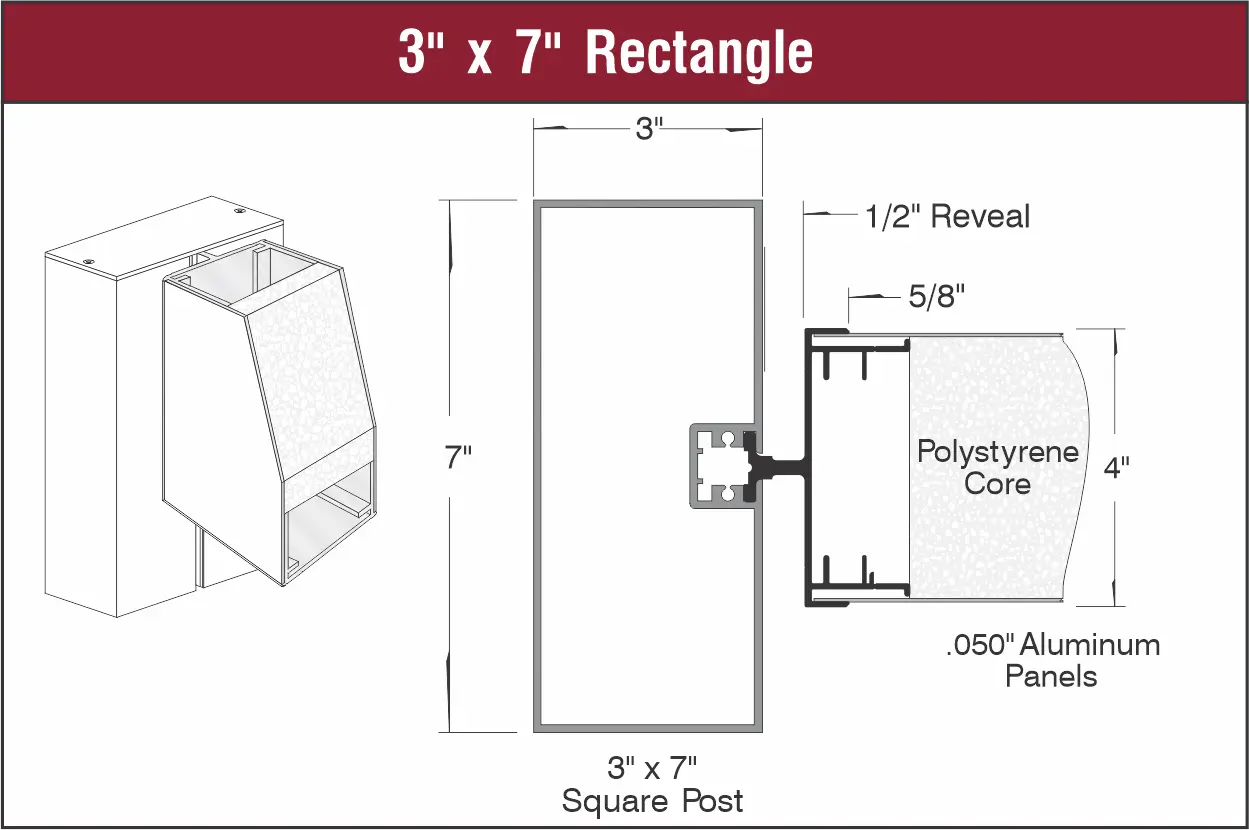

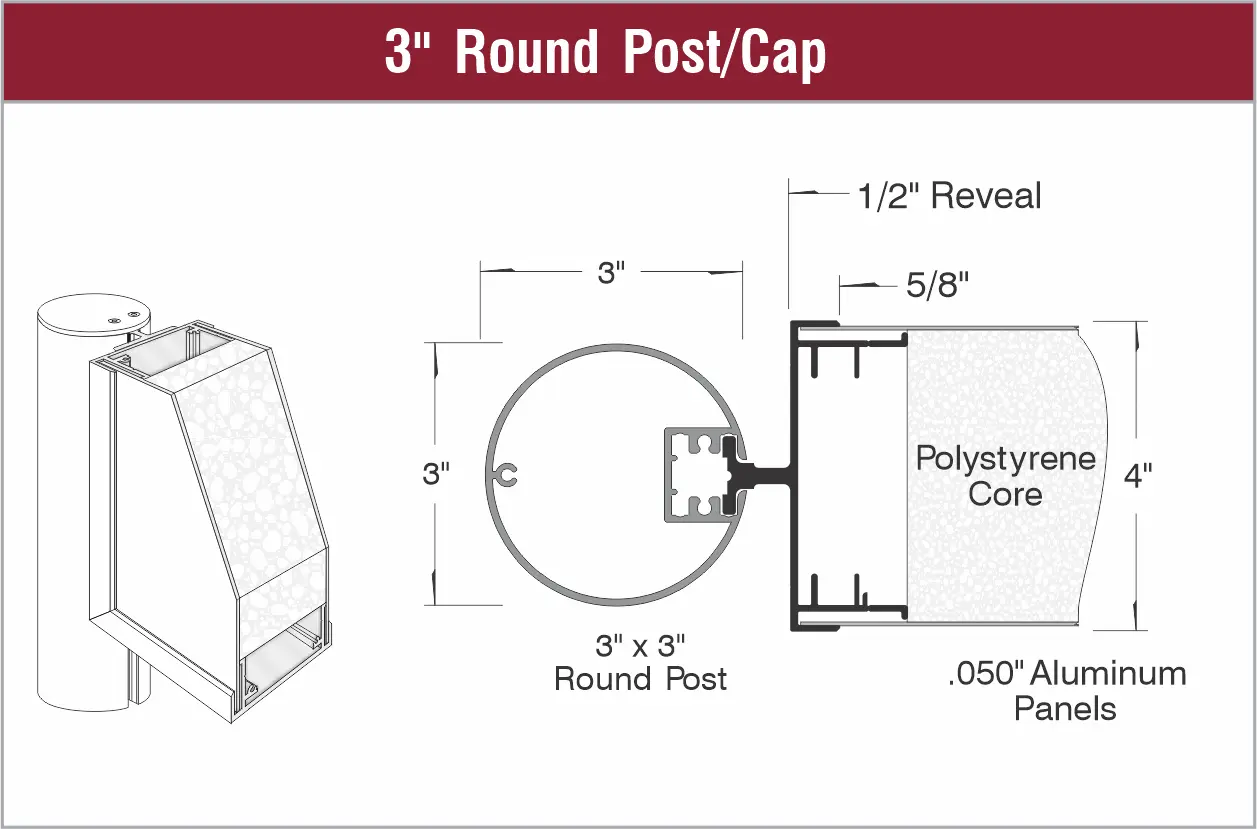

Post and Post Caps

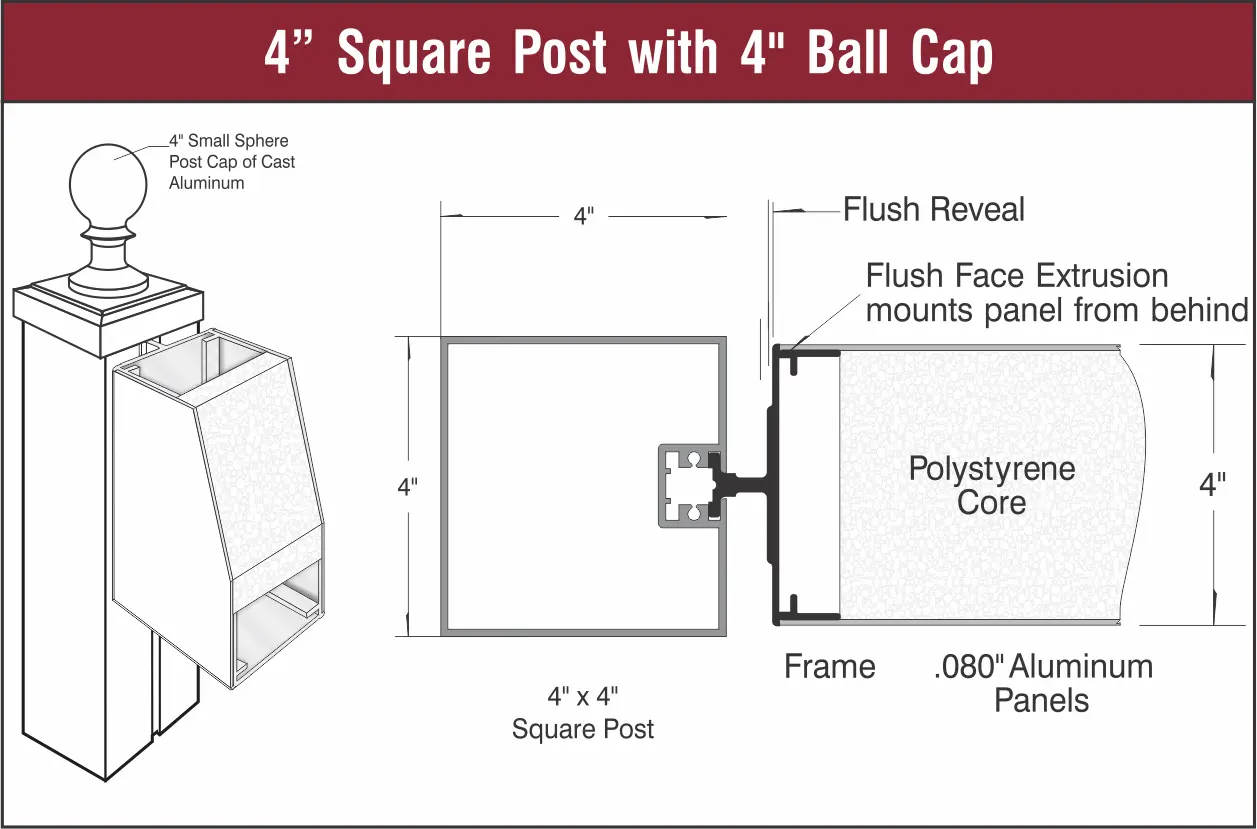

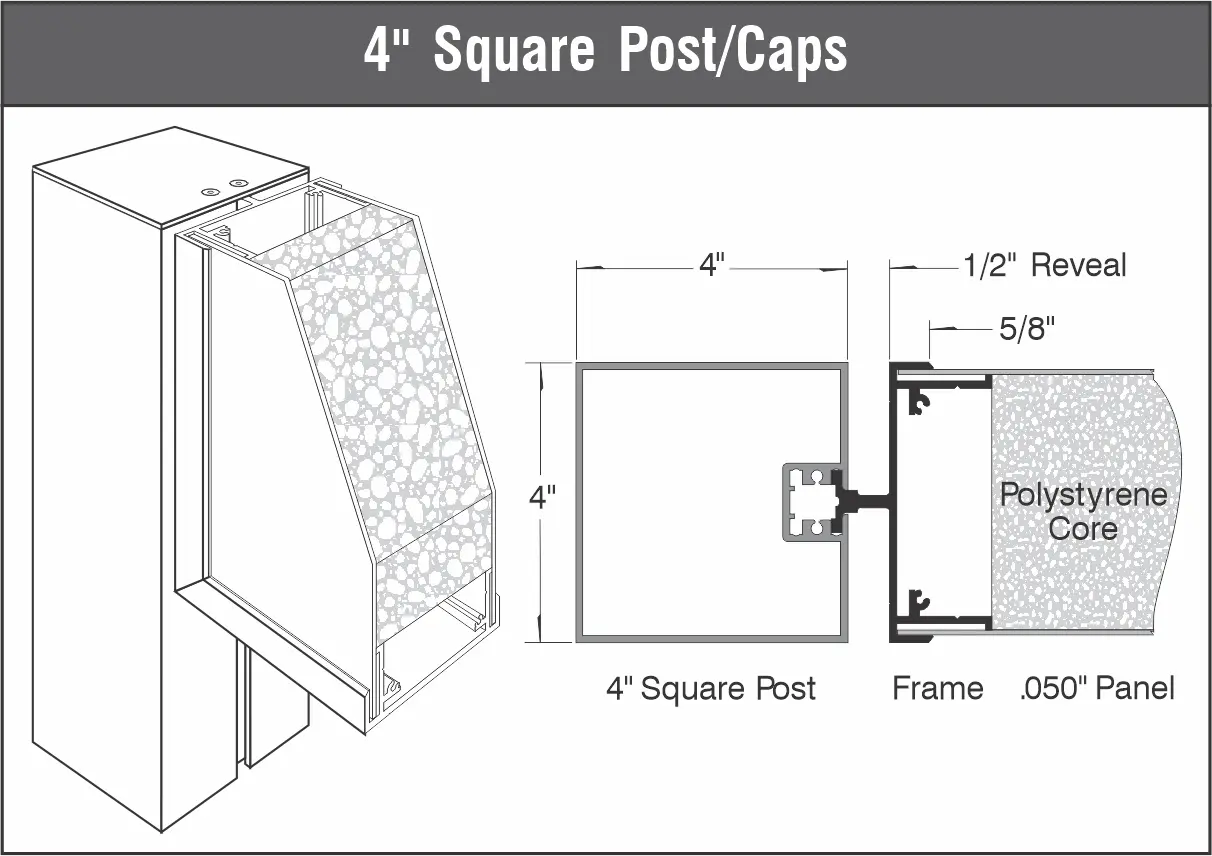

HED-400 Technical Detail

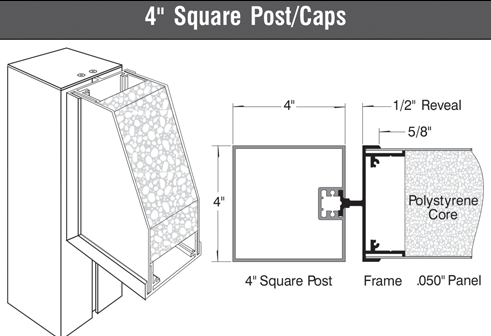

  1. Standard 4" x 4" square post
  2. Post slot offers optional flush or 1/2" reveal
  3. Injection molded post cap
  4. Corner key
  5. HED-400 top/bottom frame
  6. 3-3/4" Insulating polystyrene core
  7. .050" Aluminum message panel
  8. HED-400 mounting frame
  9. Locking square with set screw

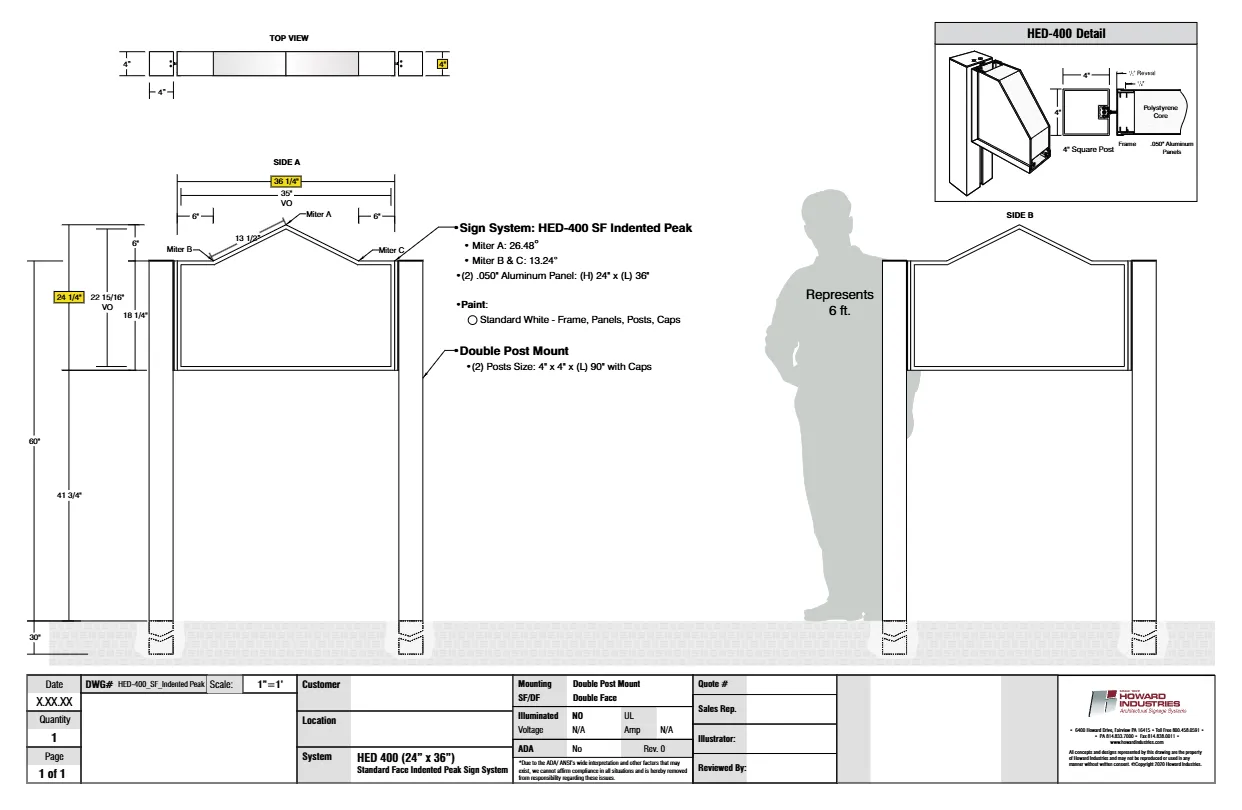

Popular Sign Tops

Max Size:
48" x 144"

Mounting Options:
Double Post

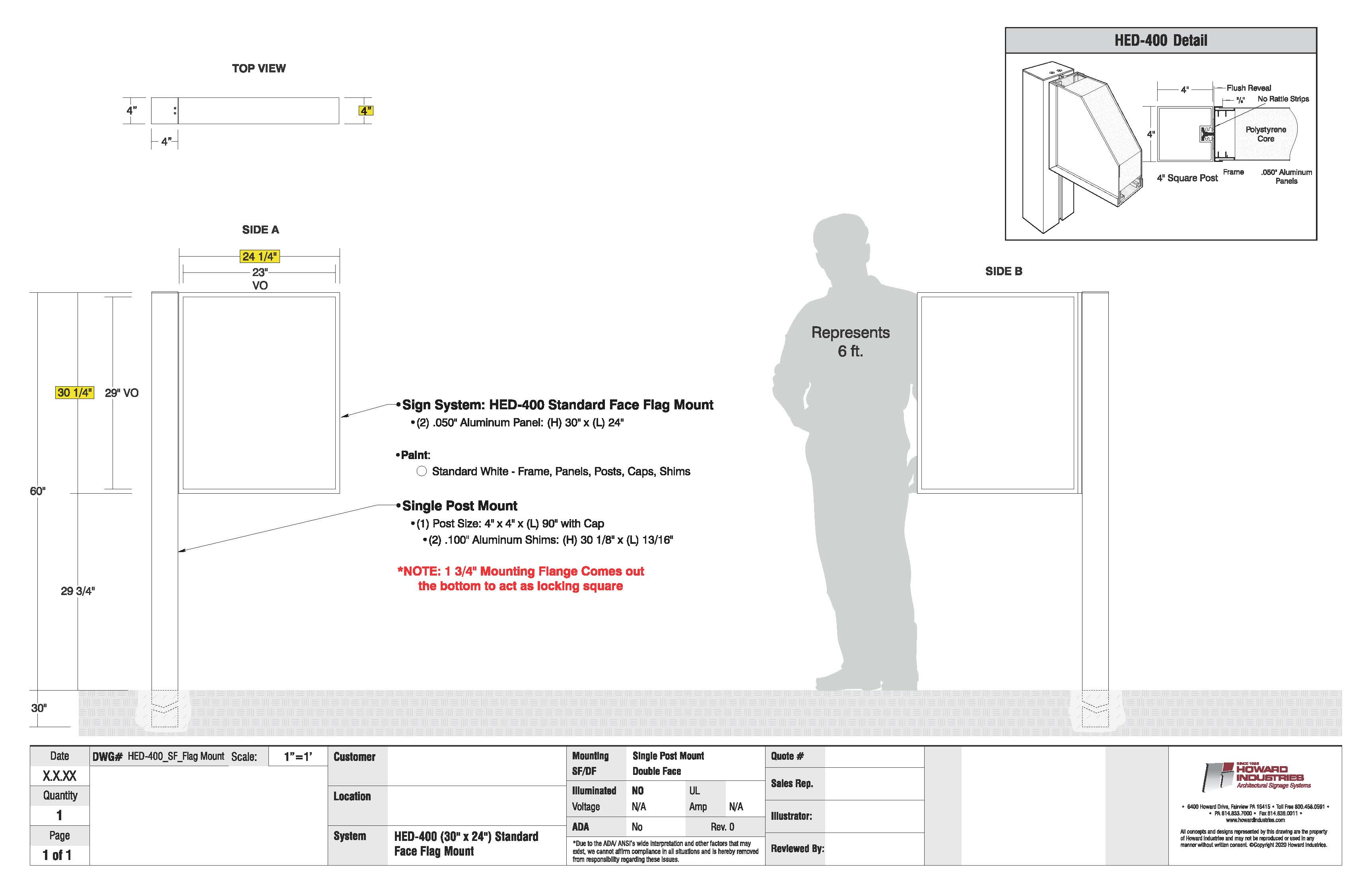

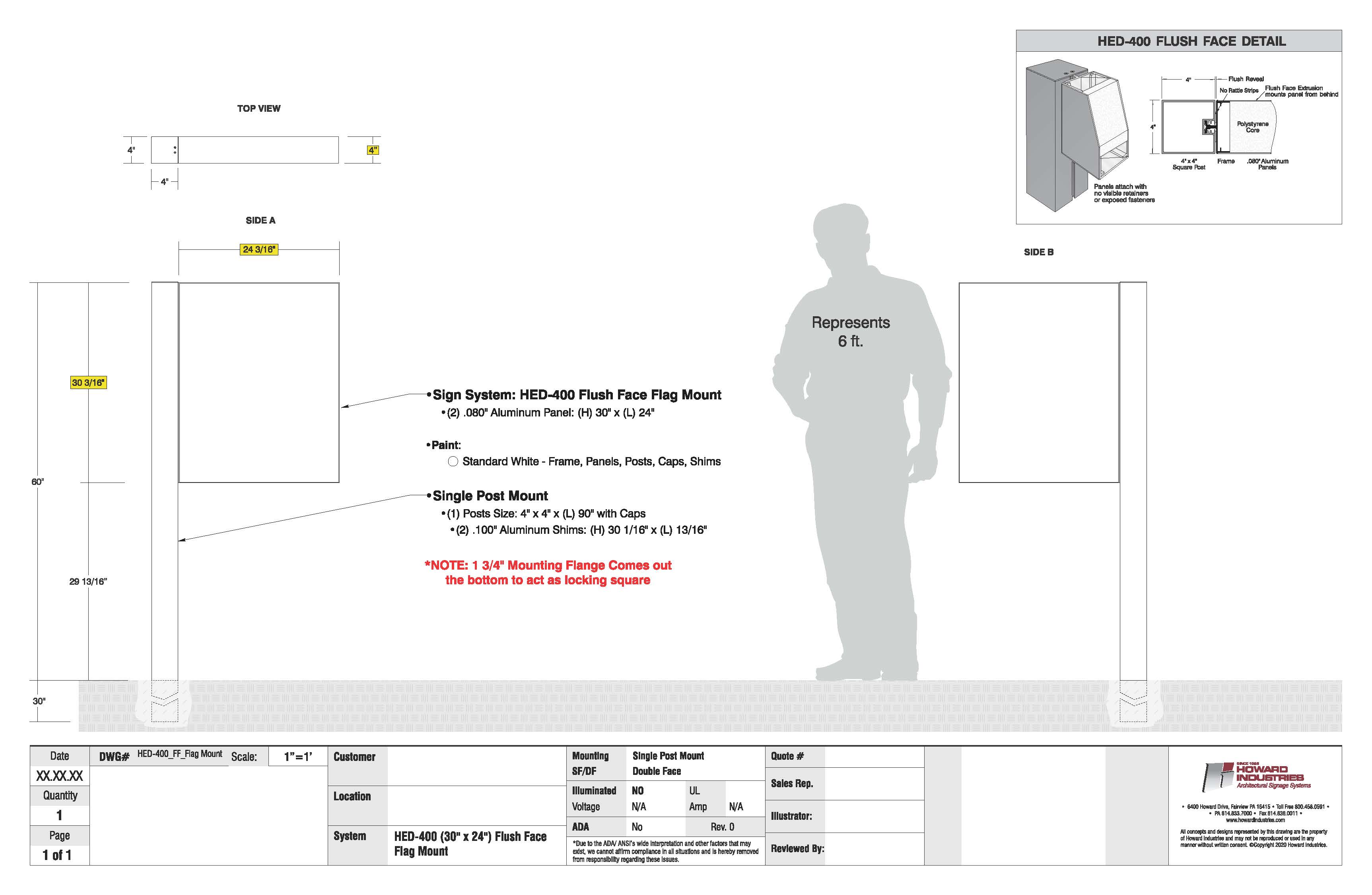

Flag

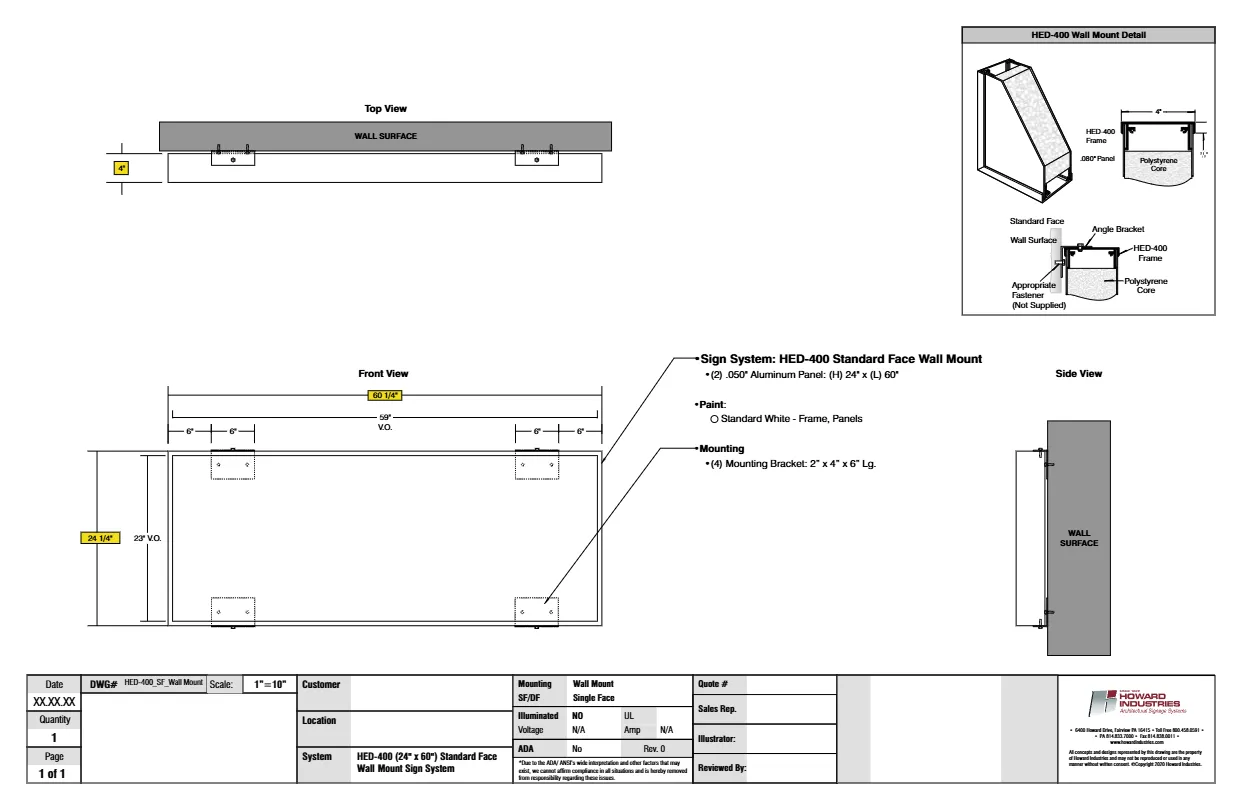

Wall

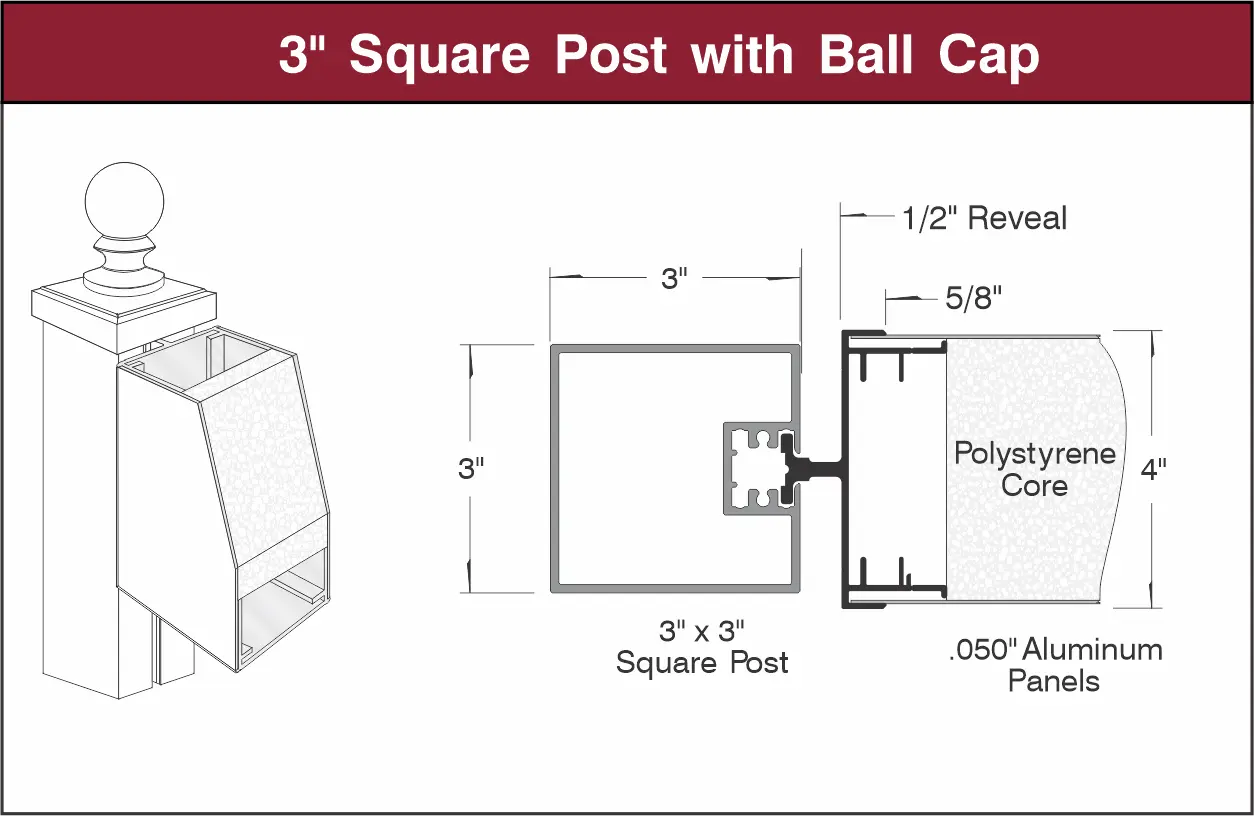

Decorative Post Caps
