HED-200
Post and Panel Sign System

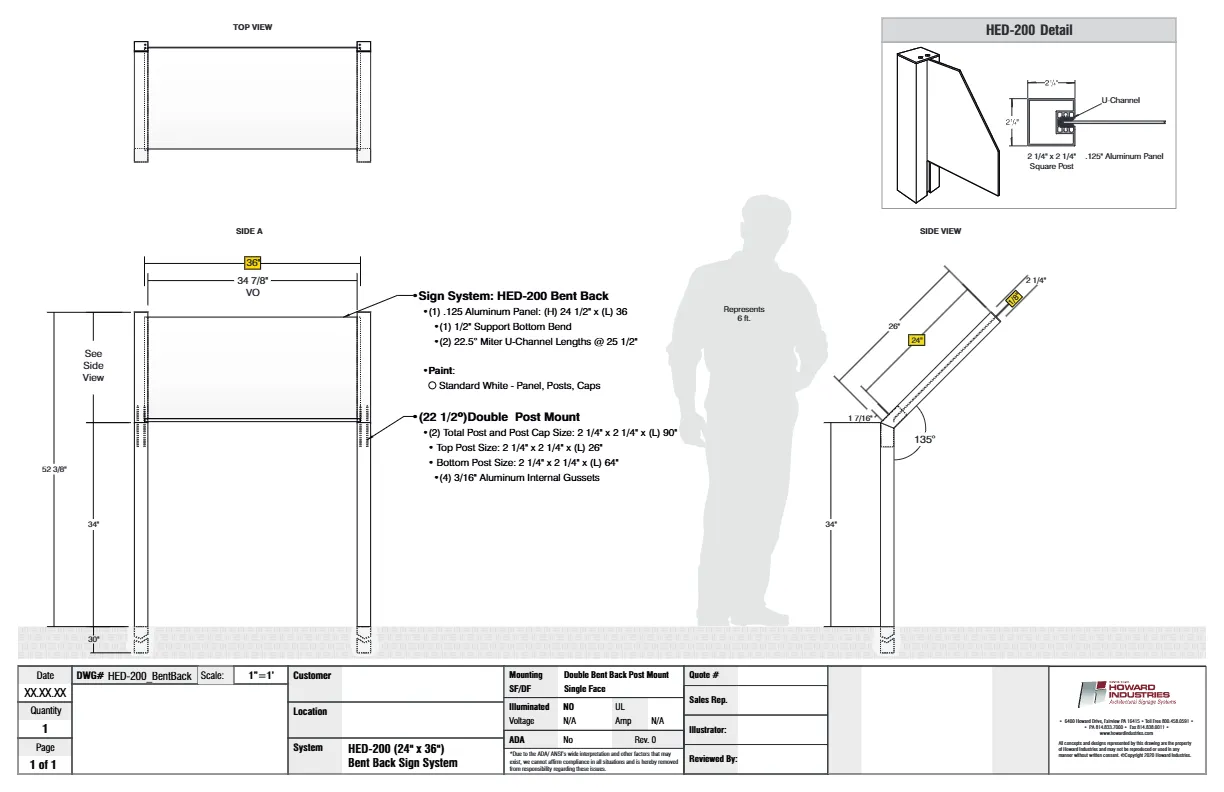

The HED-200 post and panel sign system is another one of our single panel systems with a standard 2-1/4" square posts. The solid 1/8" aluminum panel offers a strong visual impact in a non-illuminated format. With a 15 square foot limit or a maximum panel size of 36" x 60", the HED-200 can utilize several different mounting options from a single post parking sign to a bent-back double post mounted display sign. This single panel sign system can be the solution for your signage needs.
Often Used For

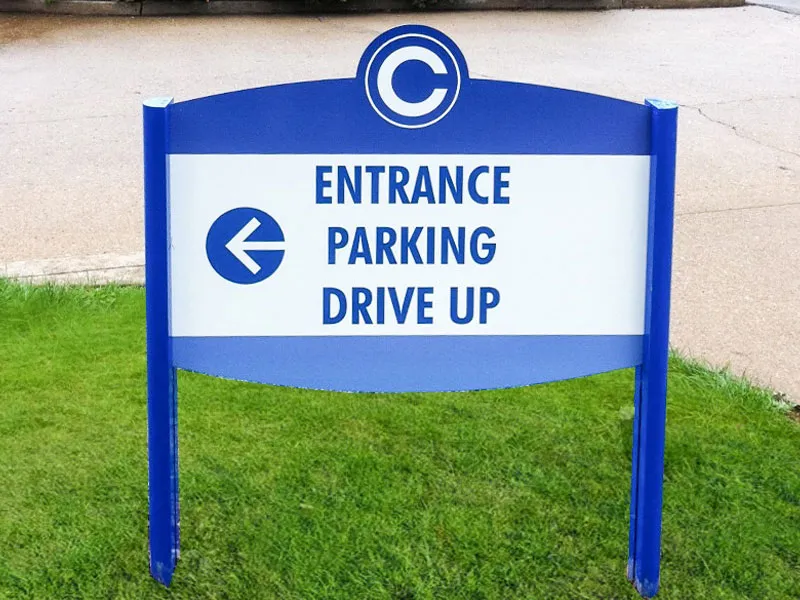

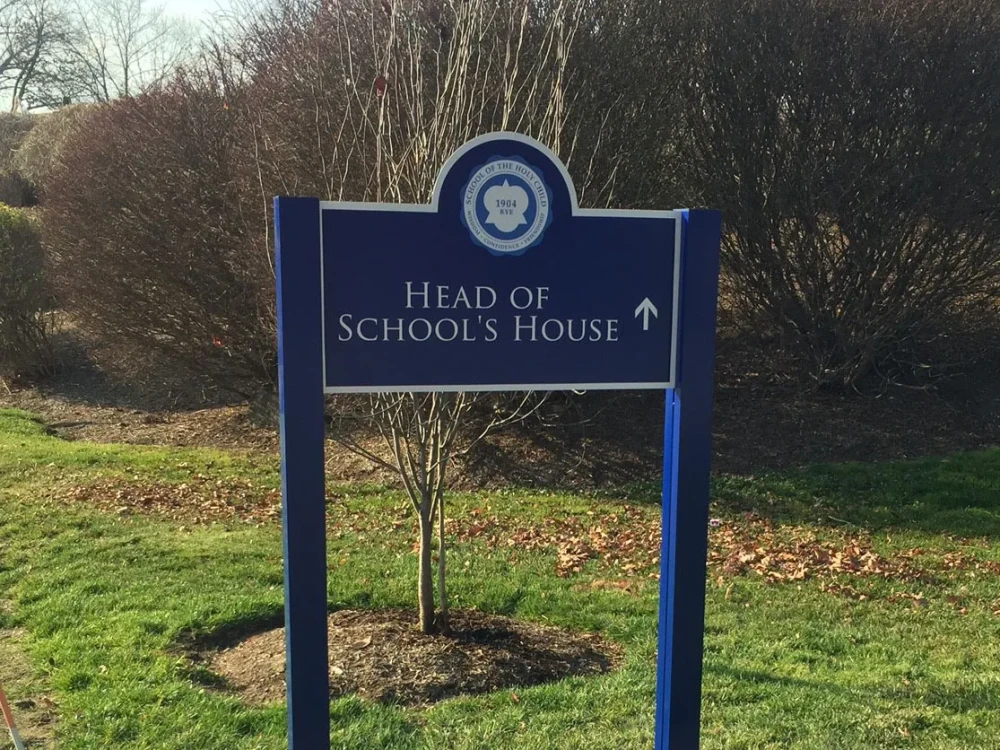

- Directional Signage
- Parking Signage
- Regulatory Signage
- Secondary Site Identification
Customizable to Fit Your Signage Needs

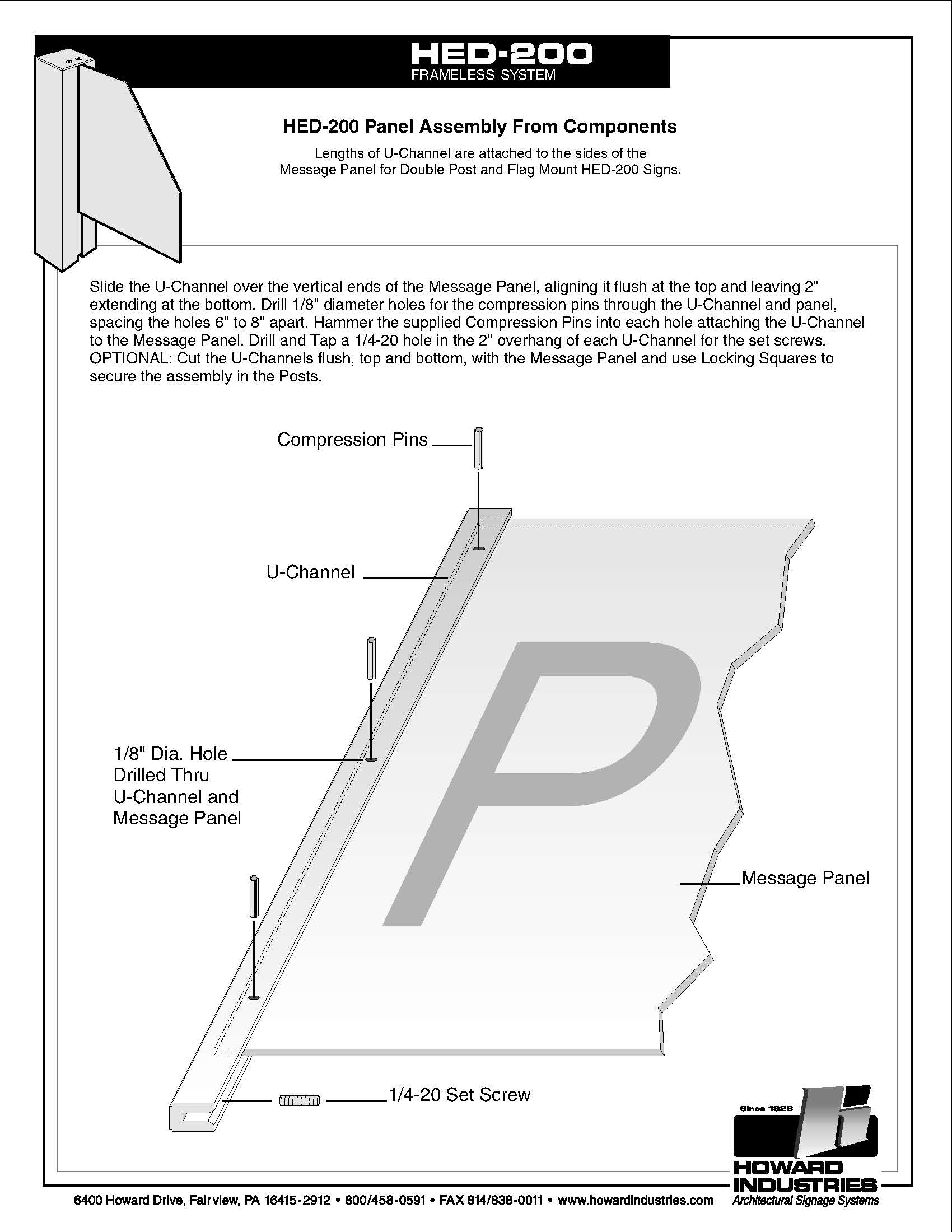

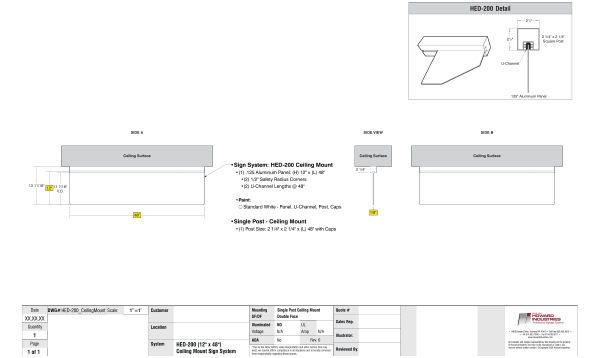

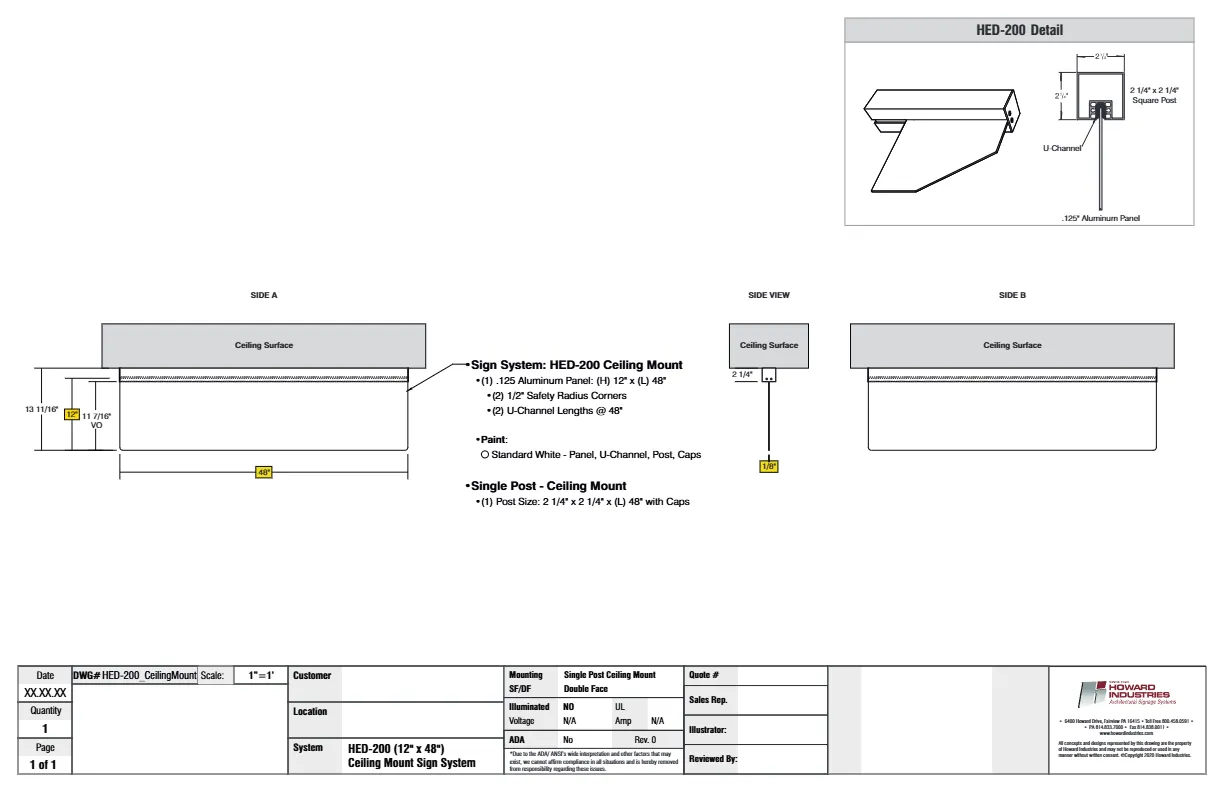

Our HED-200 system's panel can be routed to create custom shapes per your design. Whether you are utilizing our mounting extrusion or the U-Channel, the HED-200 will slide seamlessly into our extruded posts. The signs are available in double post, flag, ceiling, and wall mount configurations. All stock material finish is off-the-shelf primer white or take advantage of our color matching capabilities and/or custom color options.

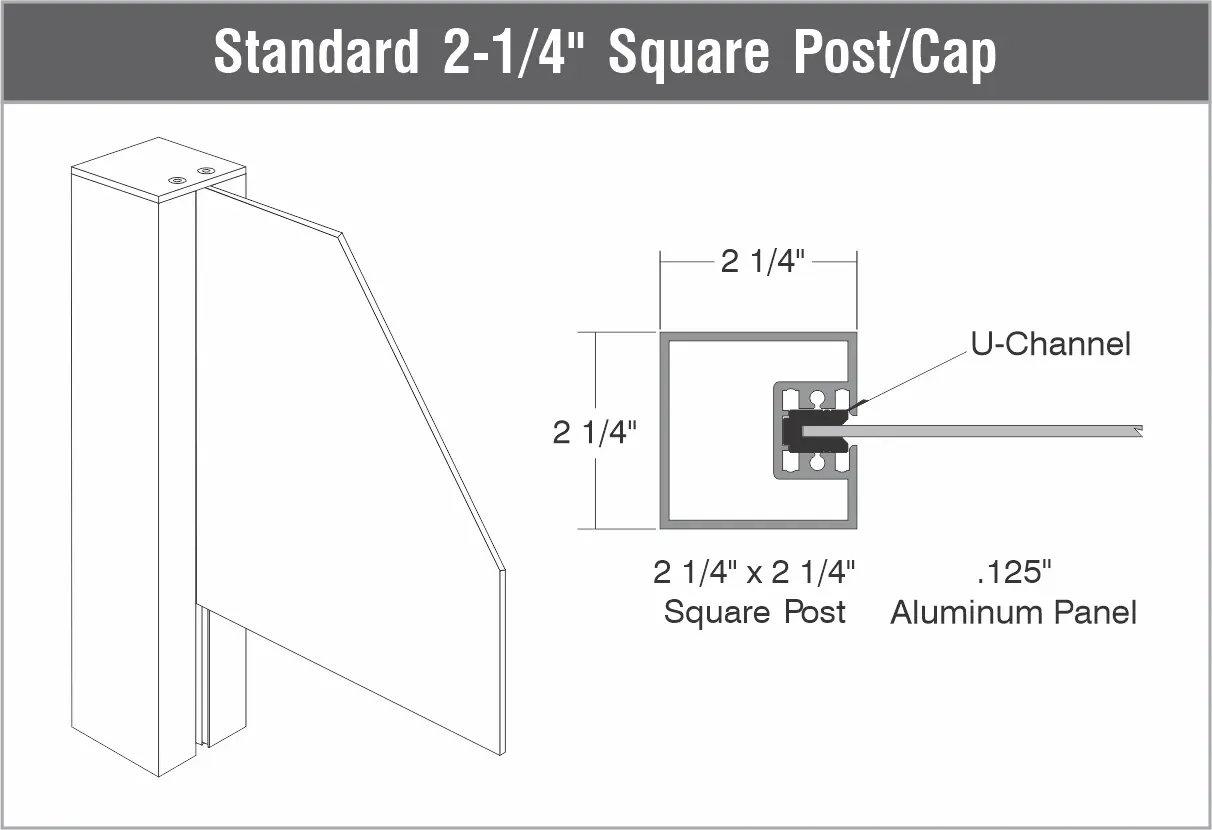

HED-200 Technical Detail
- Standard 2-1/4" square post
- U-channel fits securely in post slot
- Injection molded post cap
- Extruded aluminum u-channel
- .125" Aluminum message panel
- Locking square with set screw

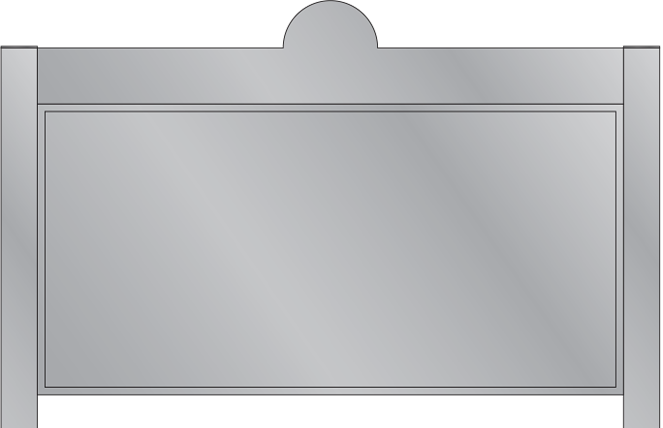

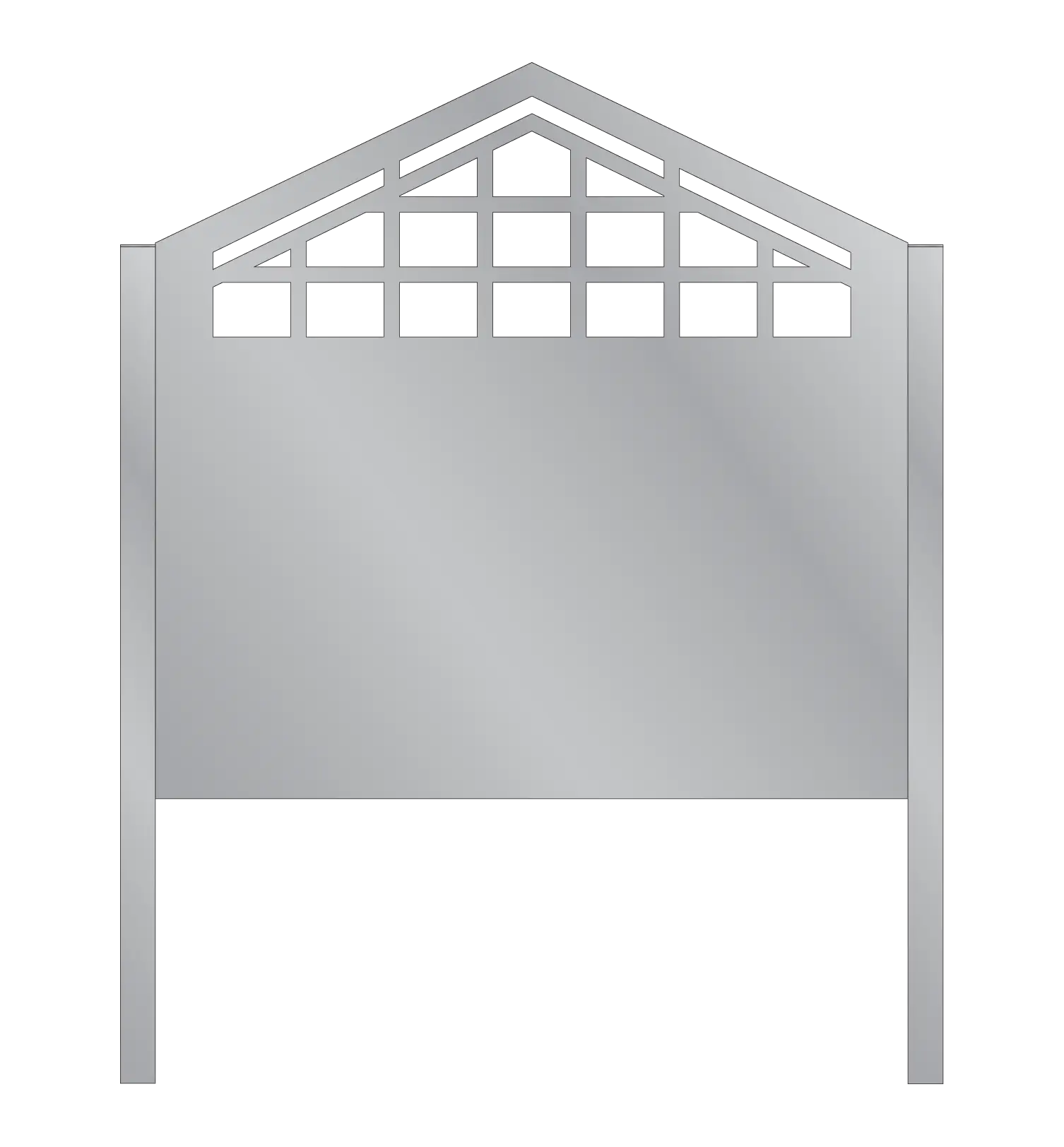

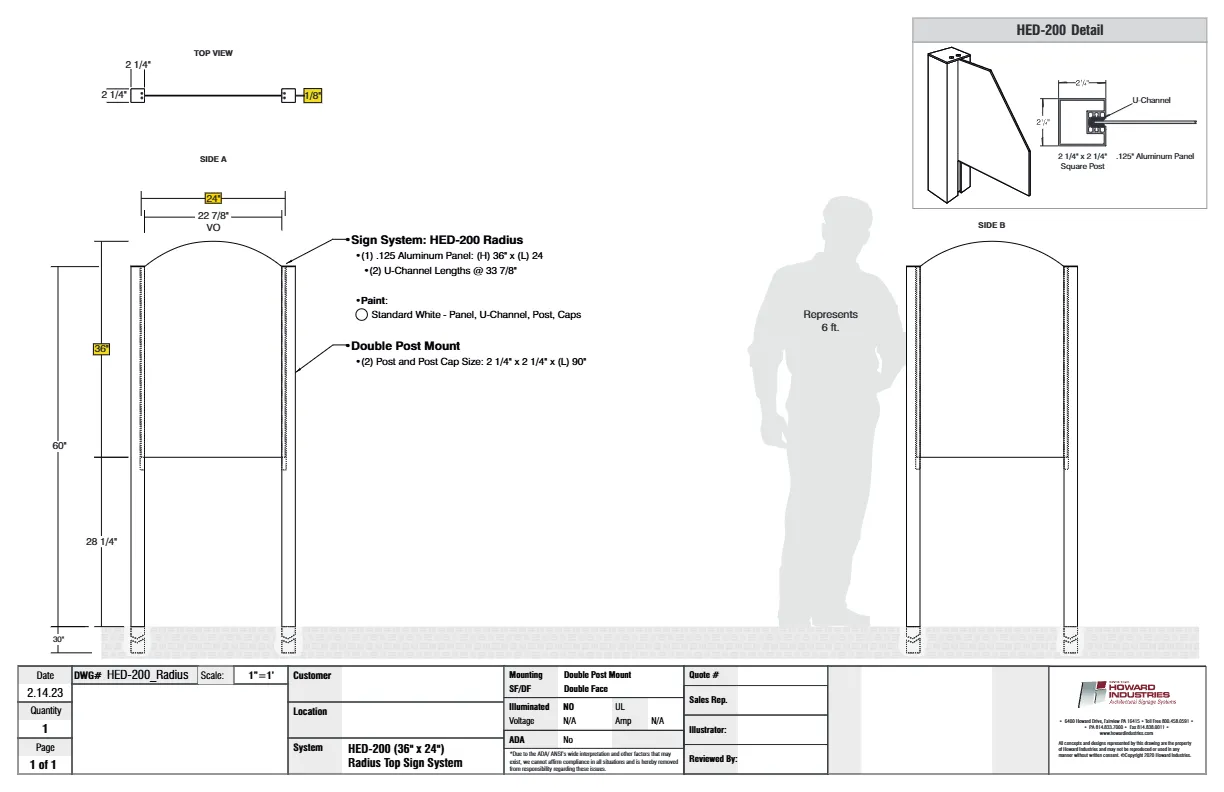

Popular Sign Tops
![hed 200 top 03](/assets/bulkUpload/hed-200-top-03.png)
![hed 200 top 02](/assets/bulkUpload/hed-200-top-02.png)
![hed 200 top 01](/assets/bulkUpload/hed-200-top-01.png)
Max Size:
36" x 60"

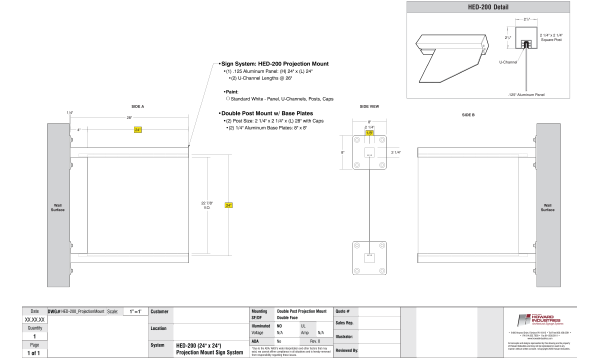

Mounting Options:

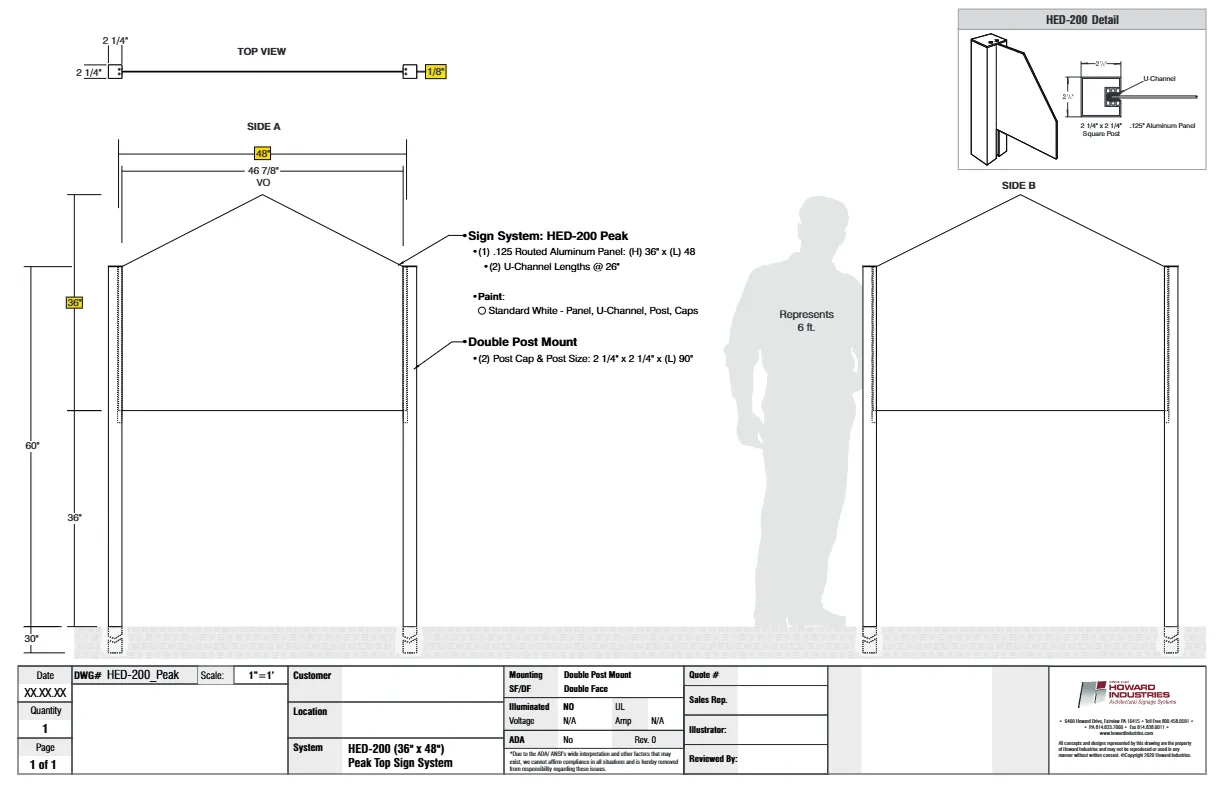

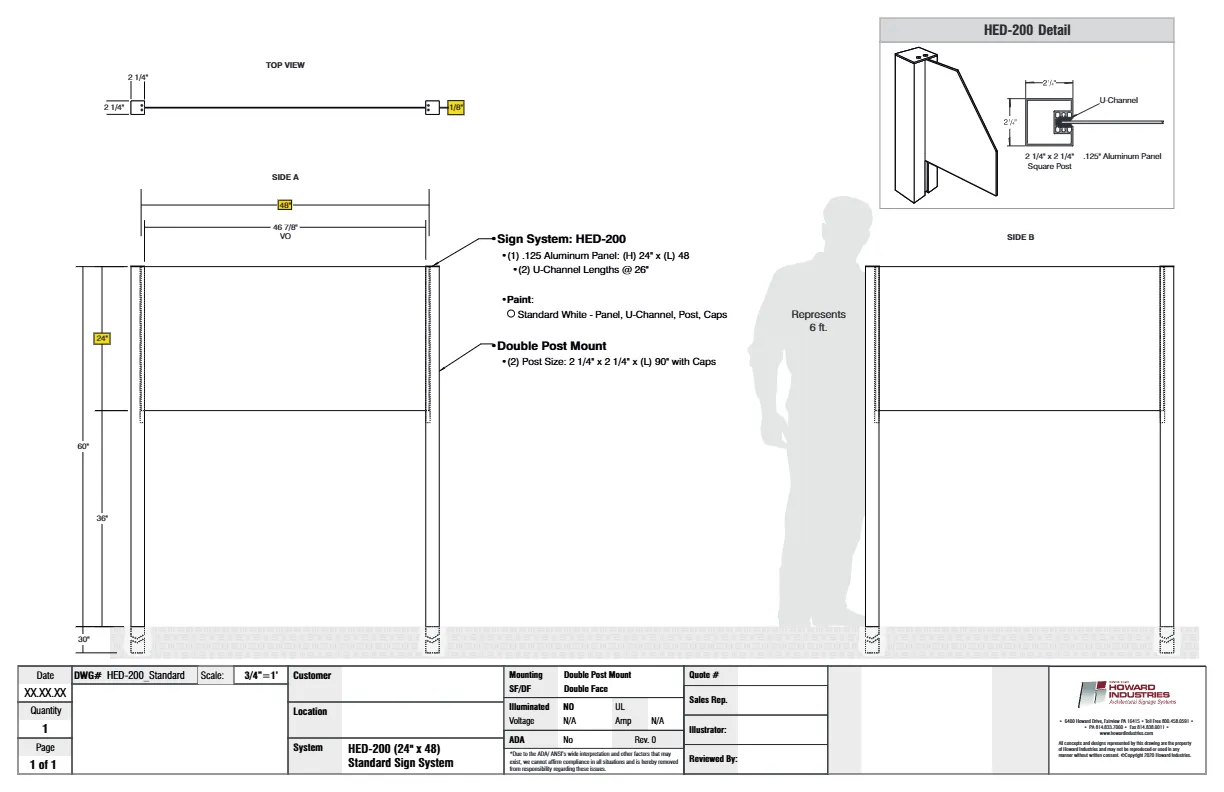

Double Post

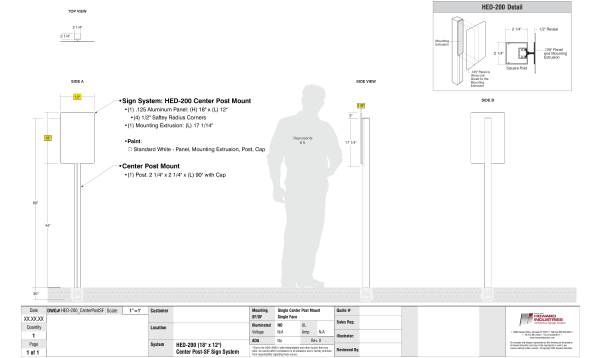

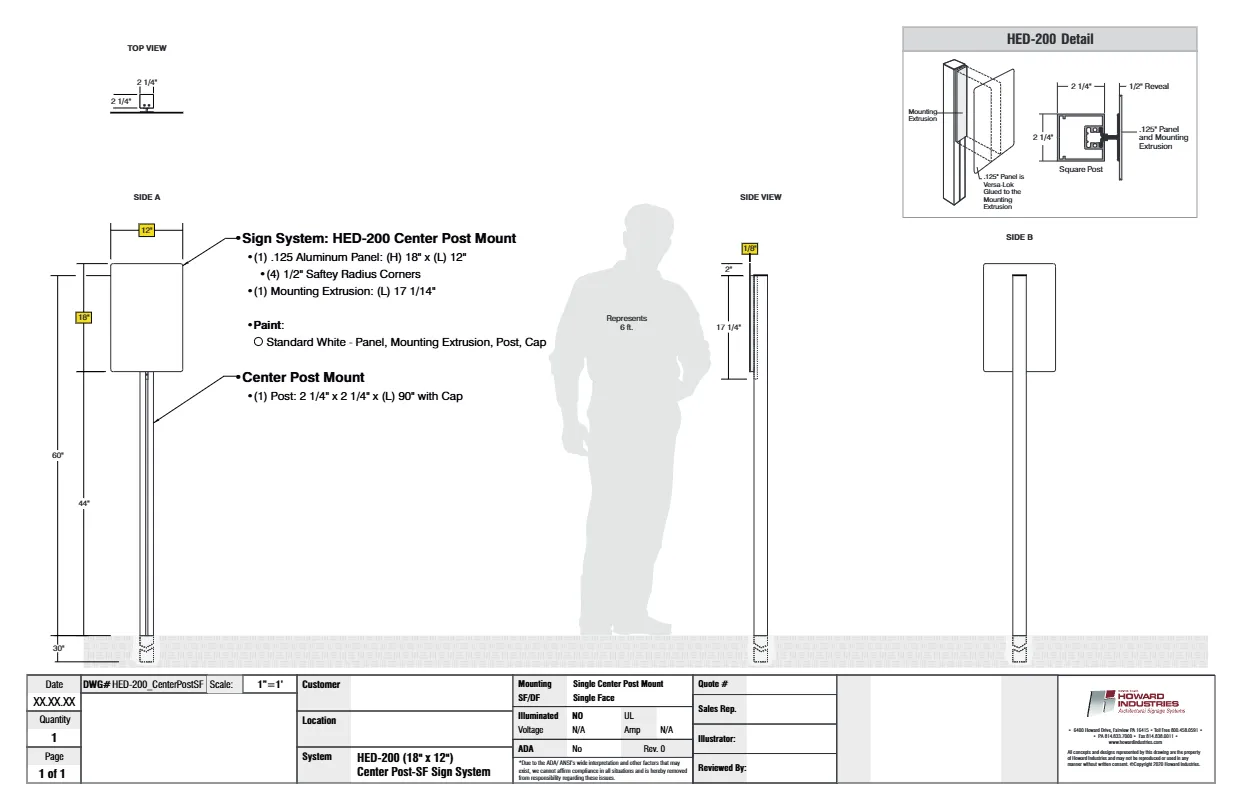

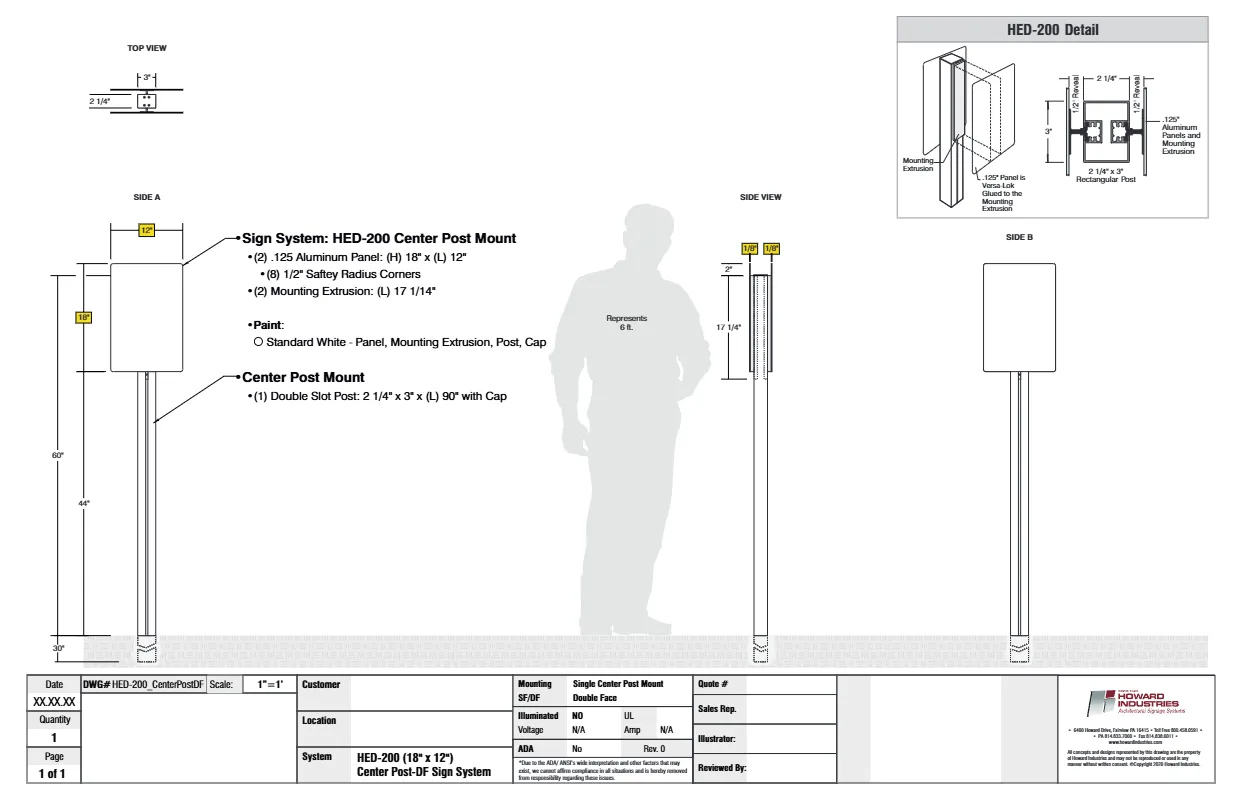

Center Post

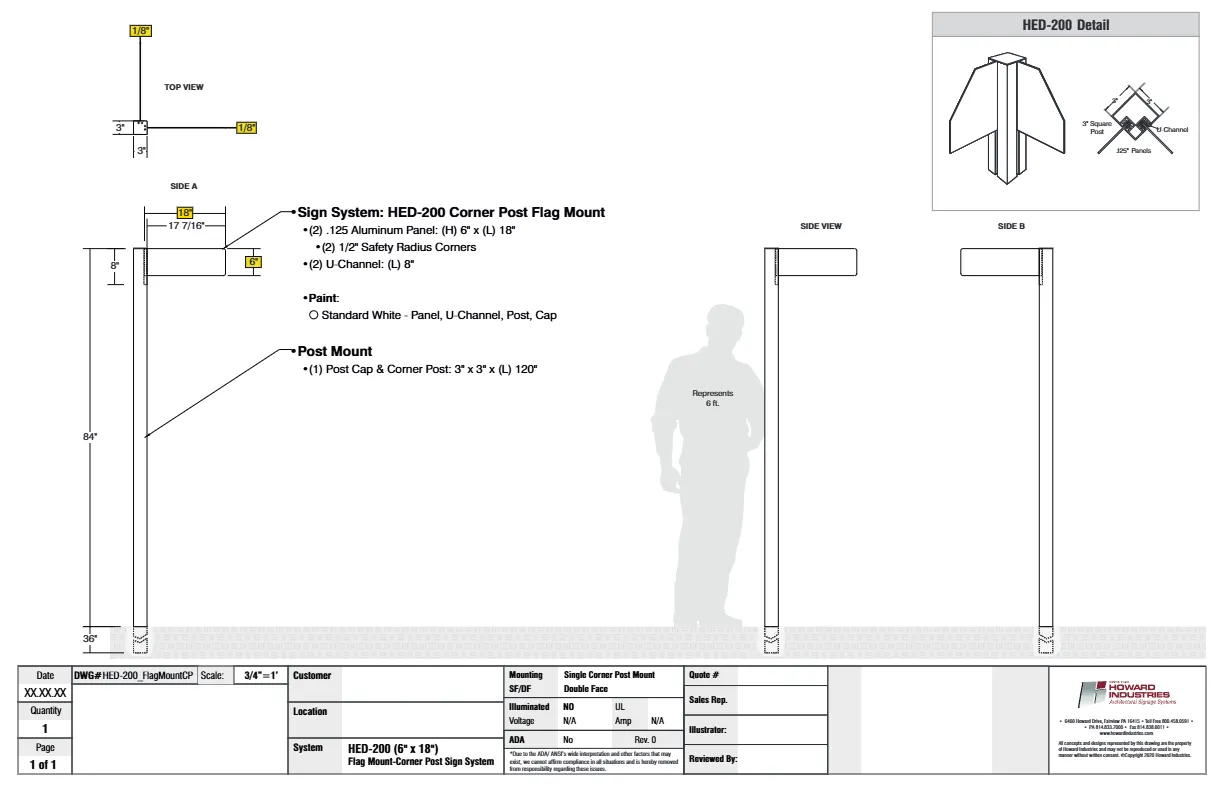

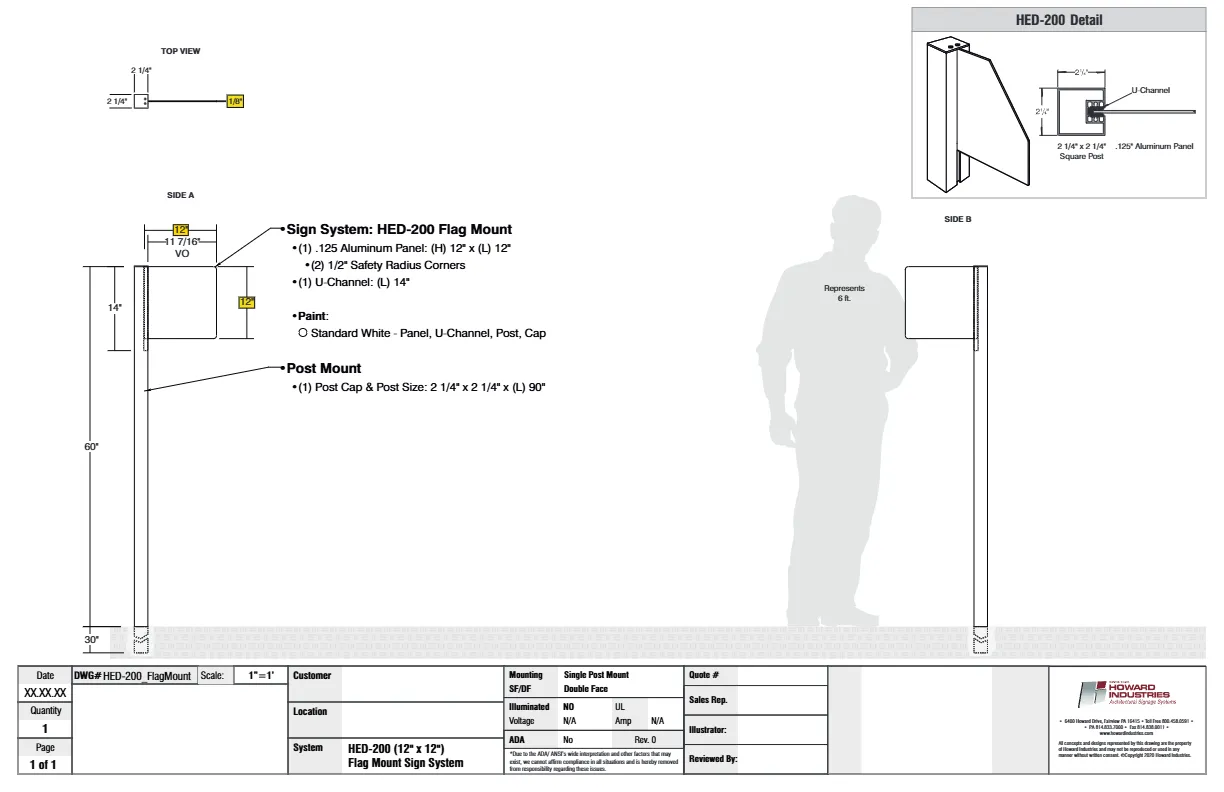

Flag
Wall
![Standard 2 1 4 Square Post Cap v2](/assets/bulkUpload/Standard-2-1_4_-Square-Post_Cap-v2.png)

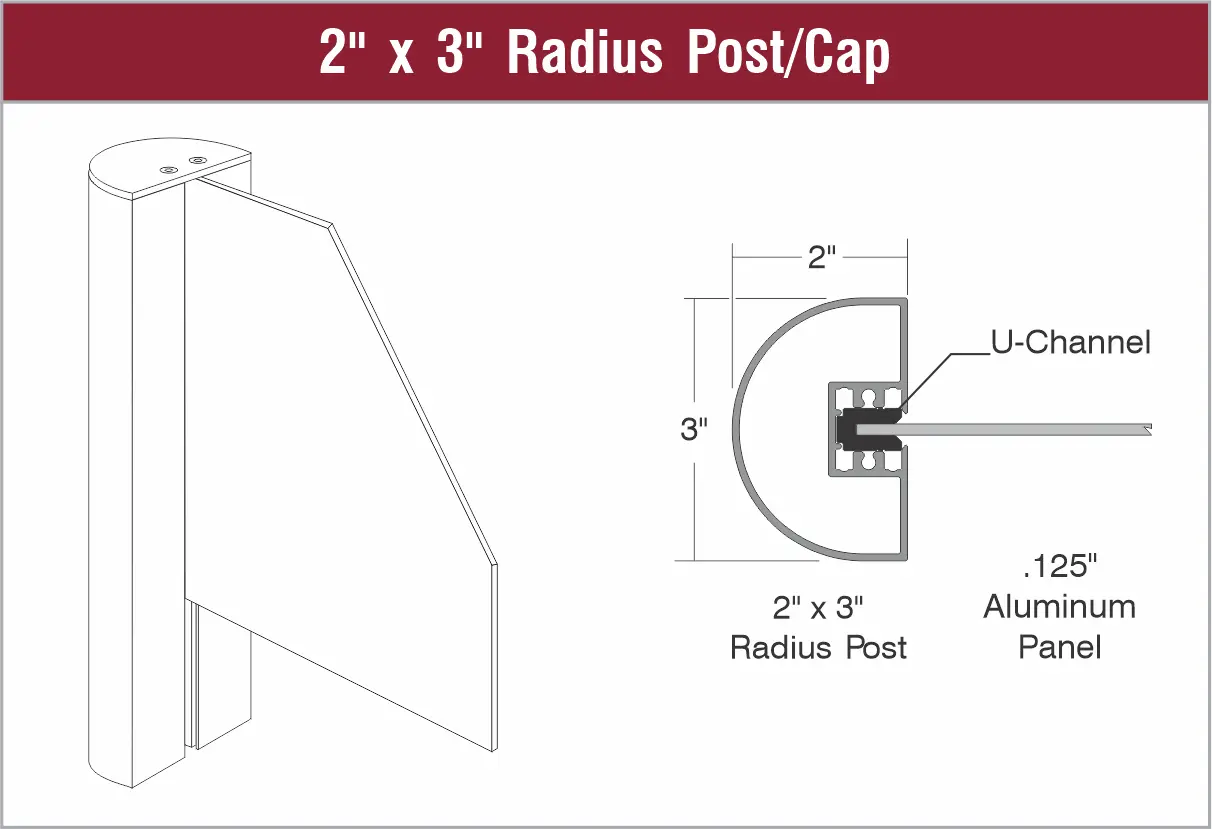

![2 x 3 Radius Post Cap v3](/assets/bulkUpload/2_-x-3_-Radius-Post_Cap-v3.png)

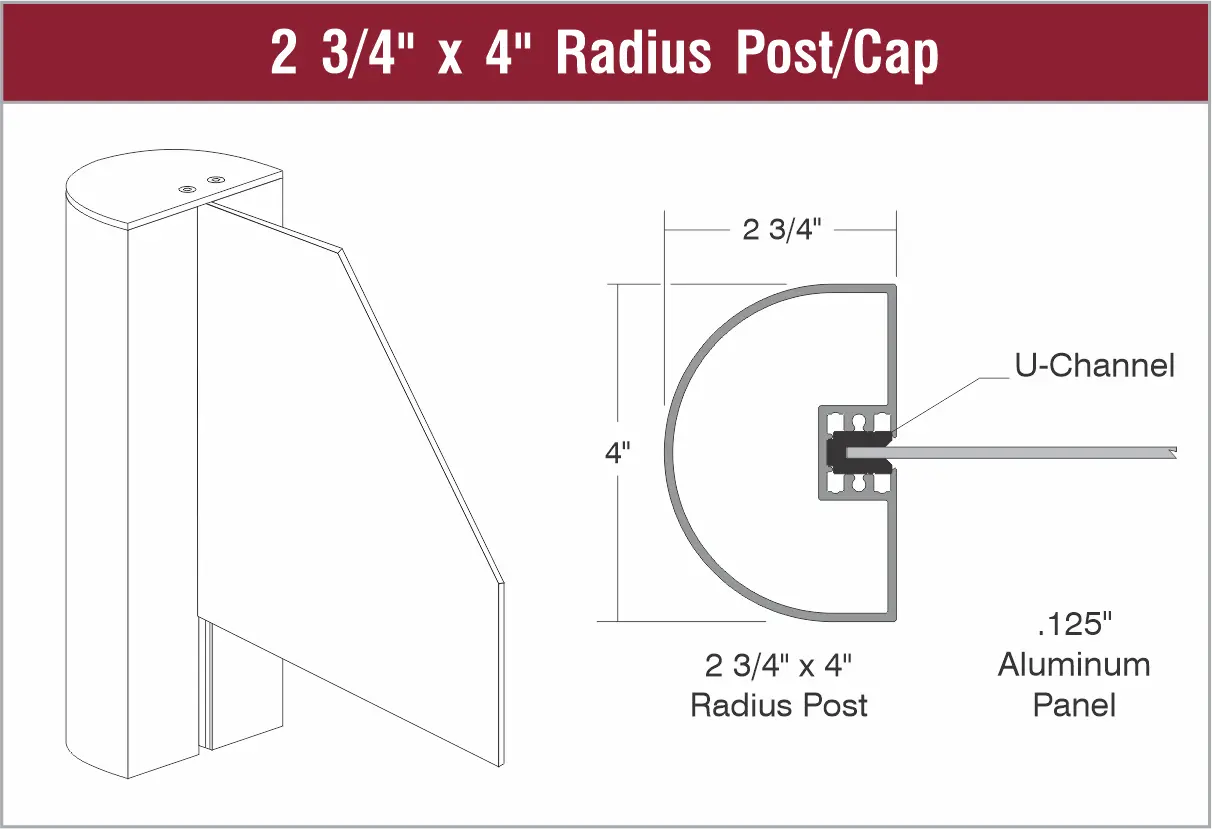

![2 3 4 x 4 Radius Post Cap v3](/assets/bulkUpload/2-3_4_-x-4_-Radius-Post_Cap-v3.png)

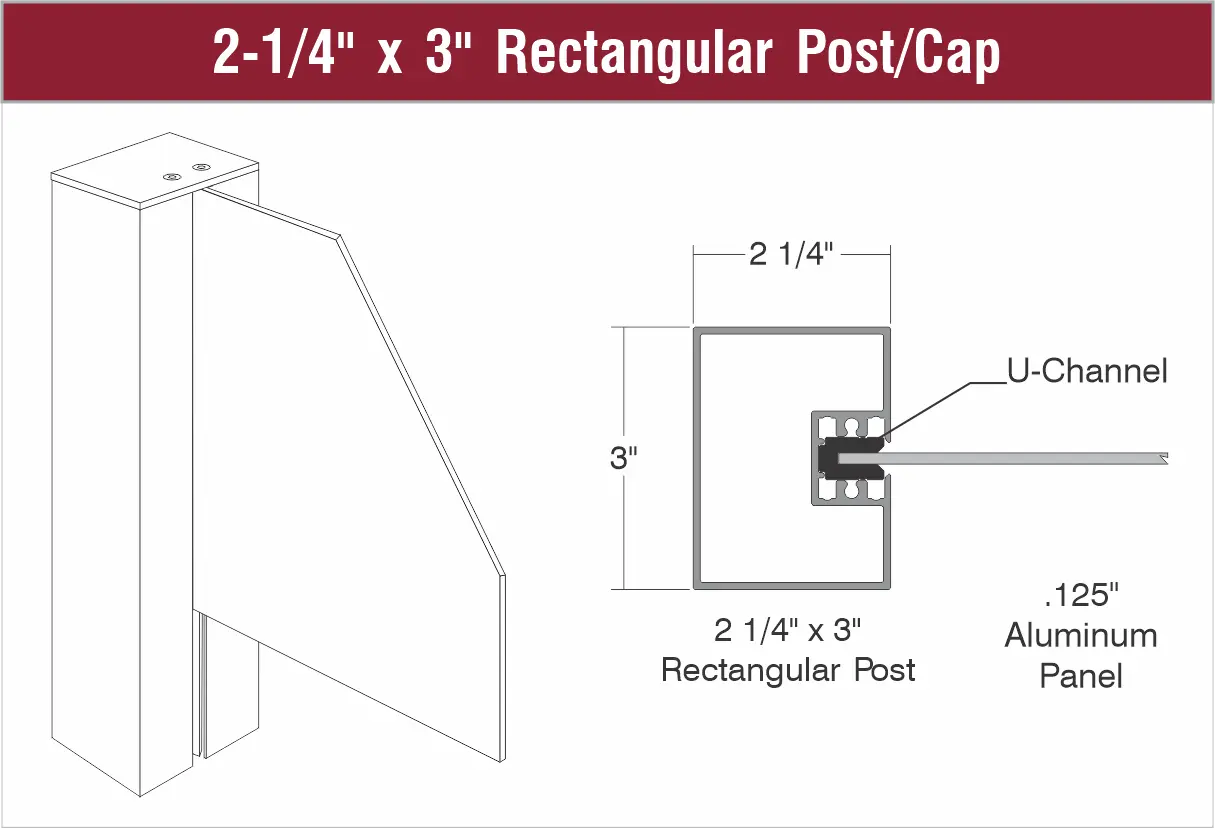

![2 1 4 x 3 Rectangular Post Cap v2](/assets/bulkUpload/2-1_4_-x-3_-Rectangular-Post_Cap-v2.png)

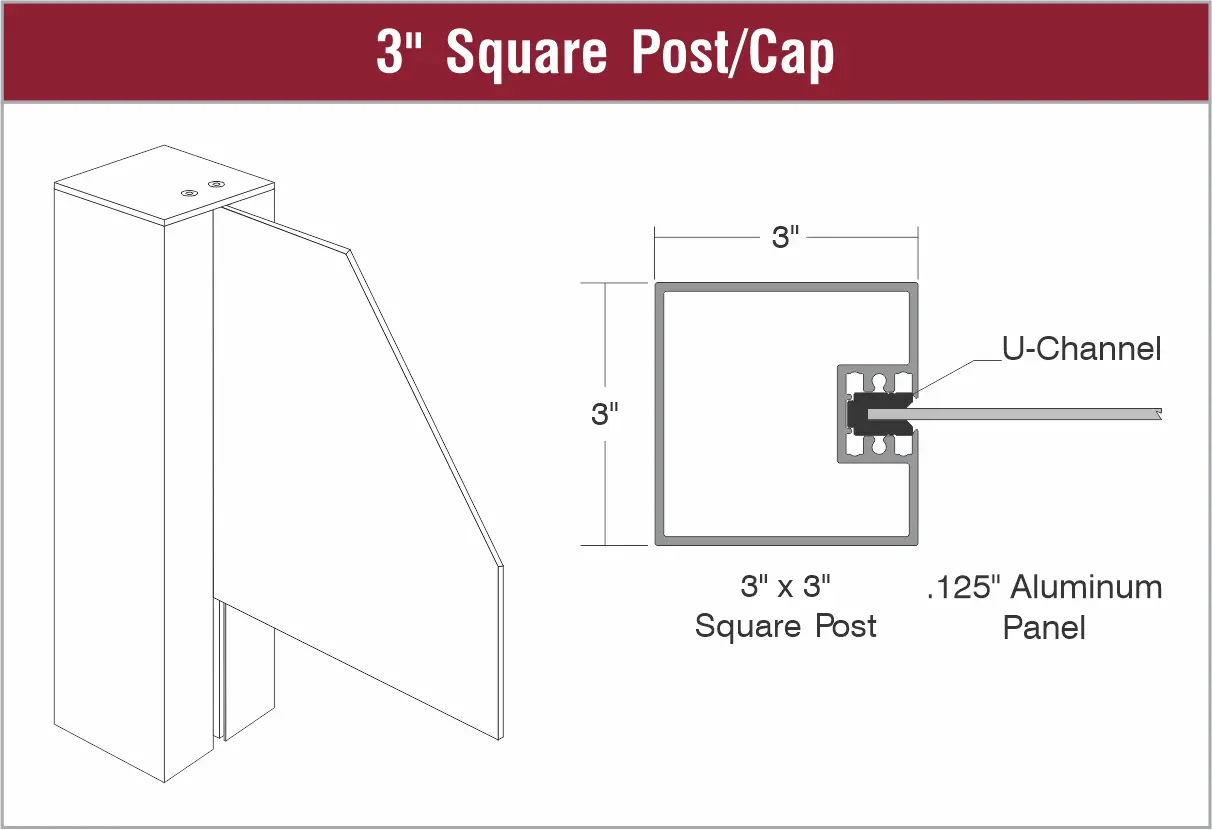

![3 Square Post Cap v3](/assets/bulkUpload/3_-Square-Post_Cap-v3.png)

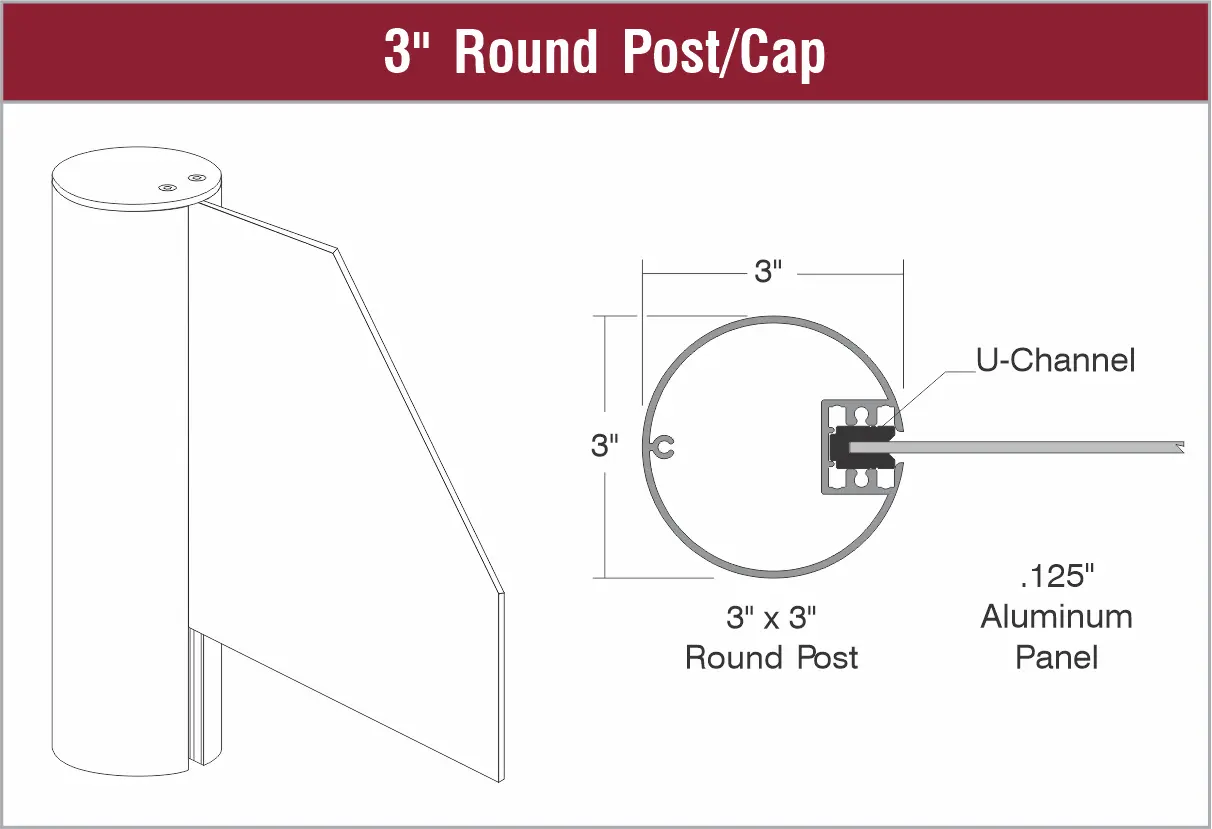

![3 Round Post Cap v3](/assets/bulkUpload/3_-Round-Post_Cap-v3.png)

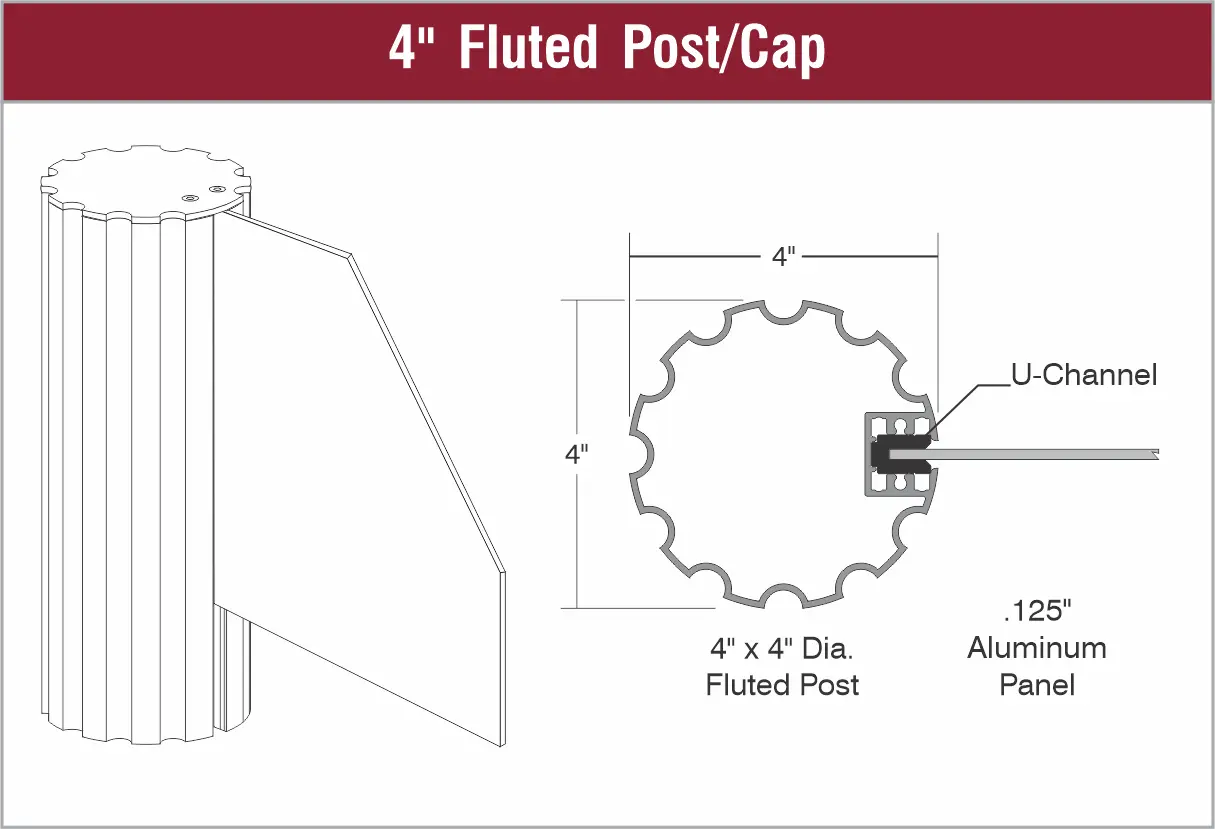

![4 Fluted Post Cap v3](/assets/bulkUpload/4_-Fluted-Post_Cap-v3.png)

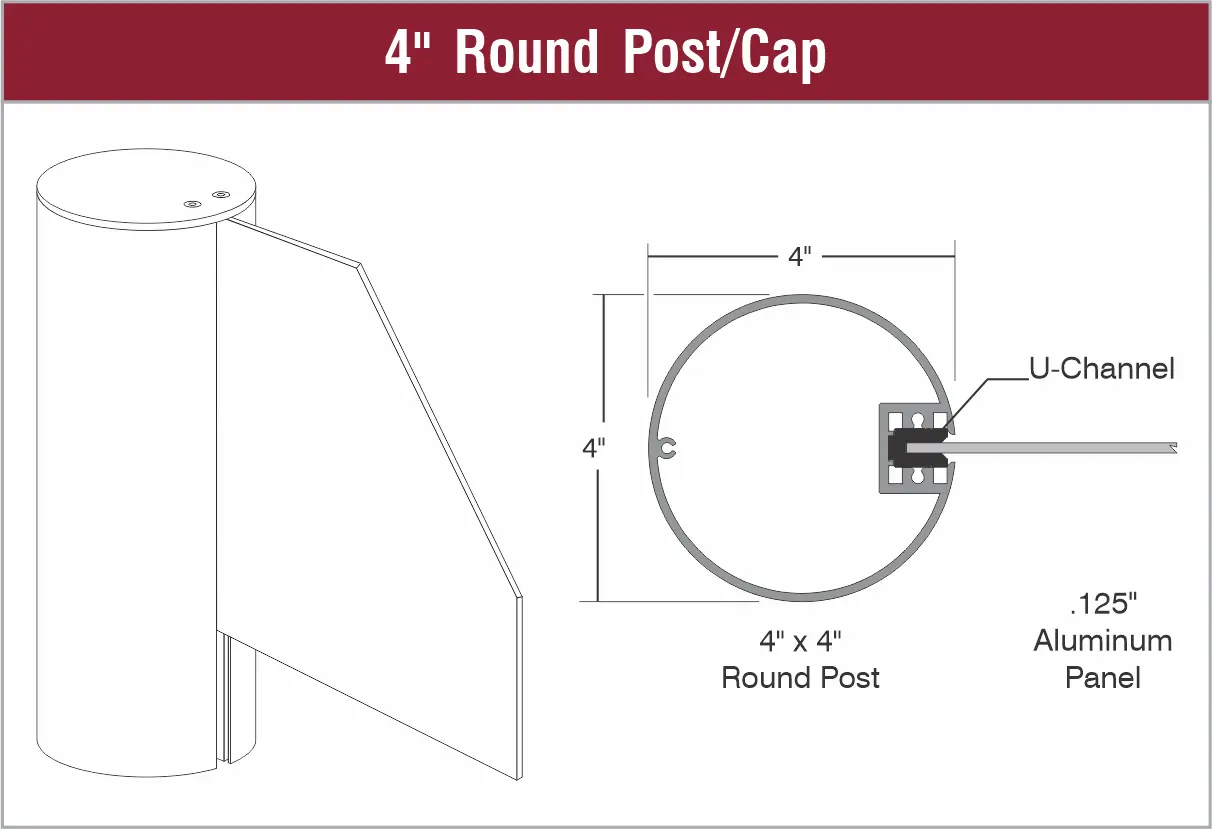

![4 Round Post Cap v3](/assets/bulkUpload/4_-Round-Post_Cap-v3.png)

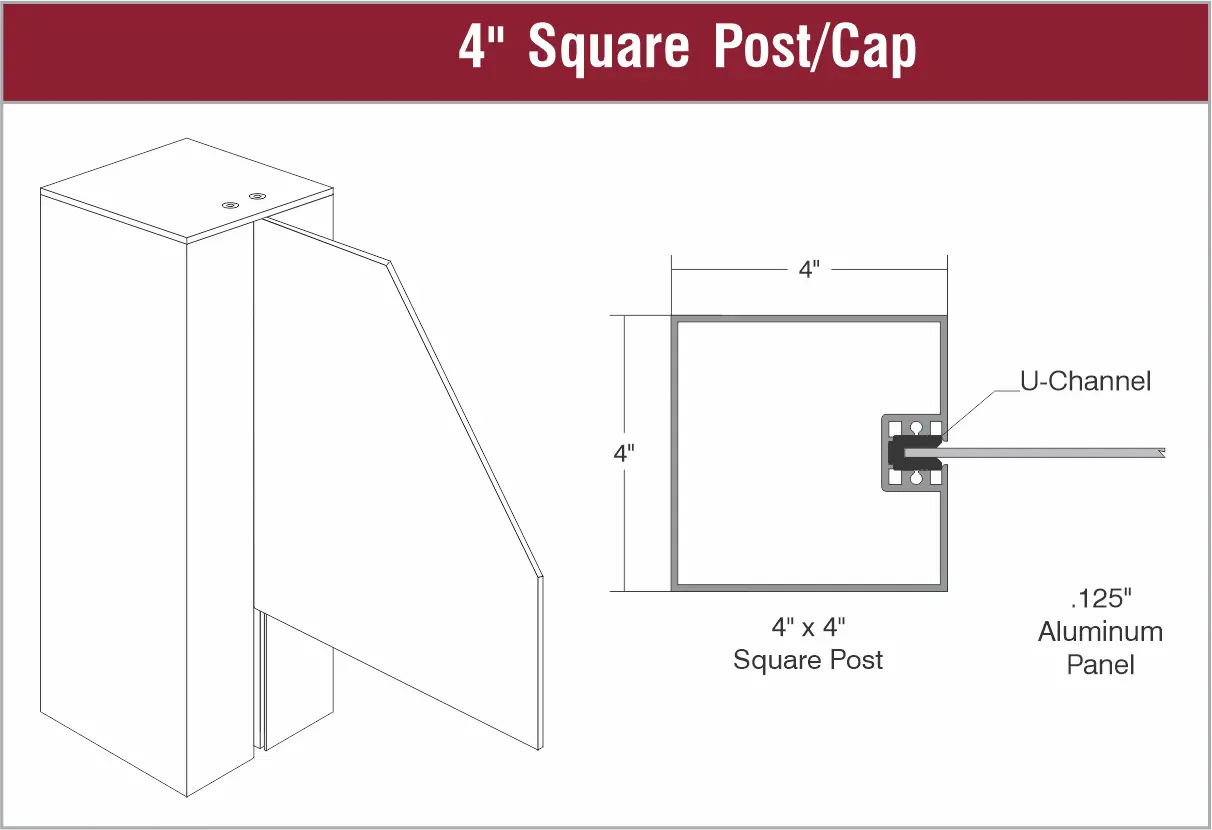

![4 Square Post Cap v3](/assets/bulkUpload/4_-Square-Post_Cap-v3.png)
Decorative Post Caps

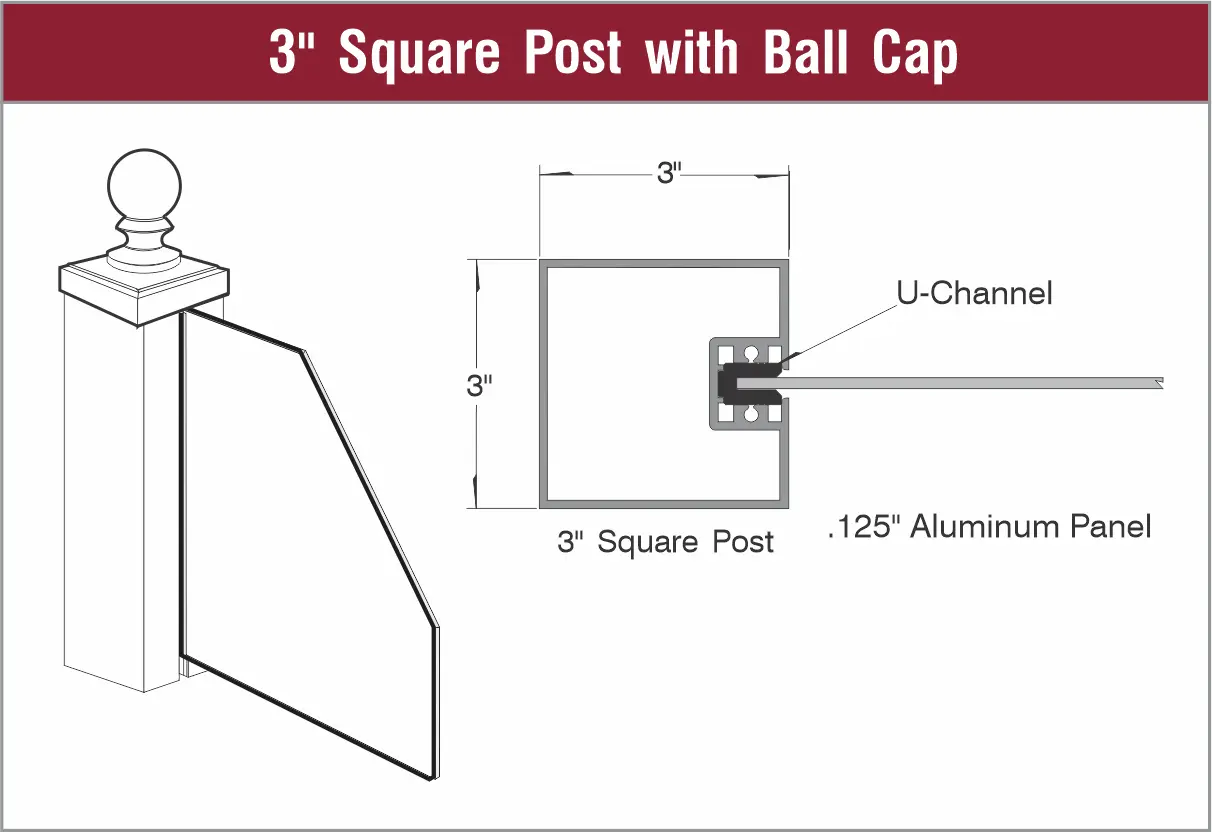

![3 Square Post with Ball Cap](/assets/bulkUpload/3_-Square-Post-with-Ball-Cap_.png)

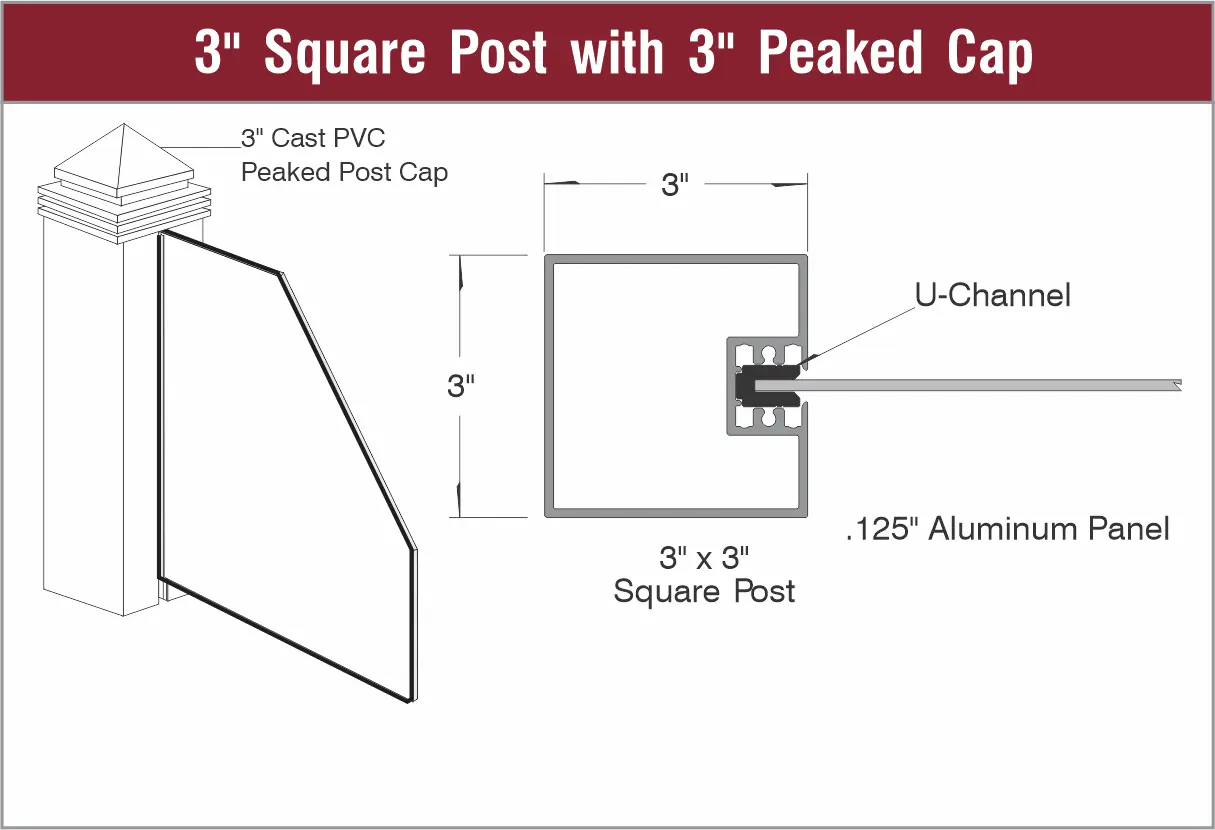

![3 Square Post with 3 Peaked Cap v3](/assets/bulkUpload/3_-Square-Post-with-3_-Peaked-Cap-v3.png)

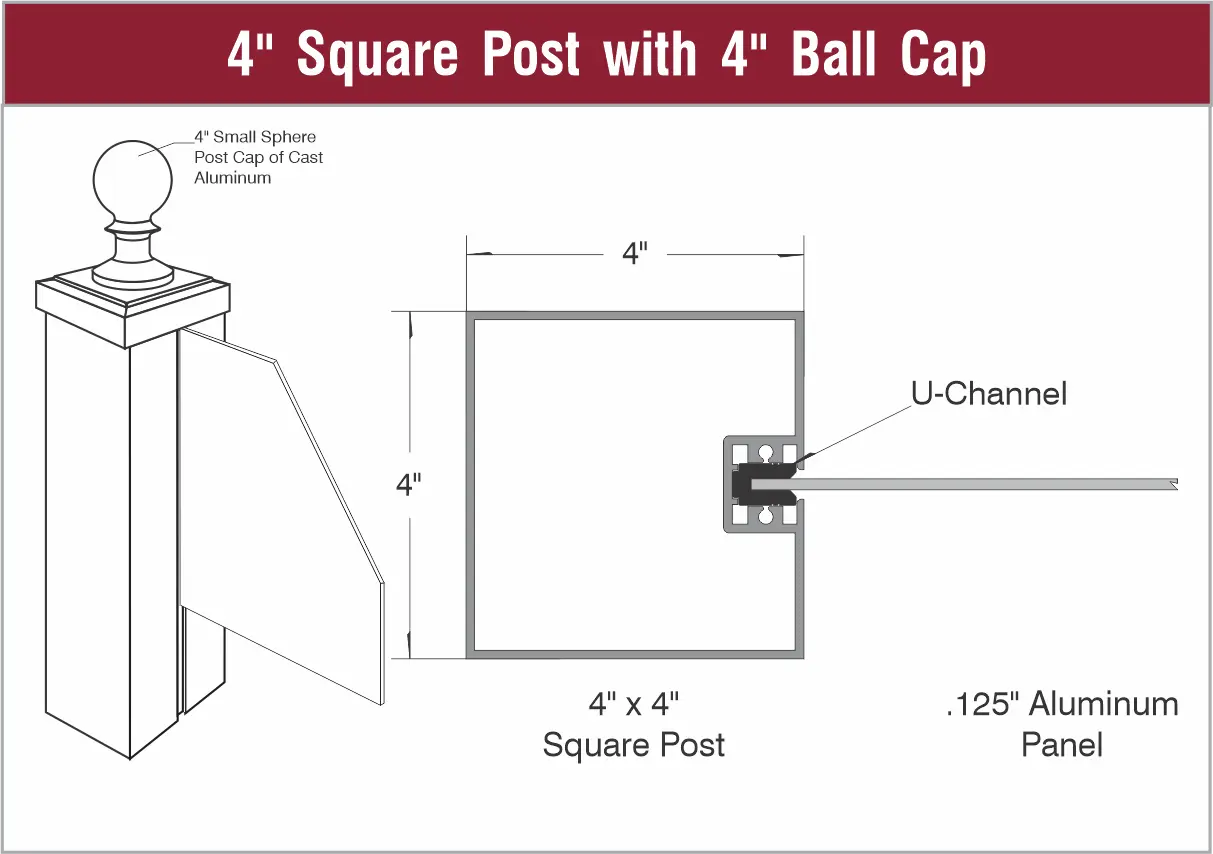

![4 Square Post with 4 Ball Cap v3](/assets/bulkUpload/4_-Square-Post-with-4_-Ball-Cap-v3.png)

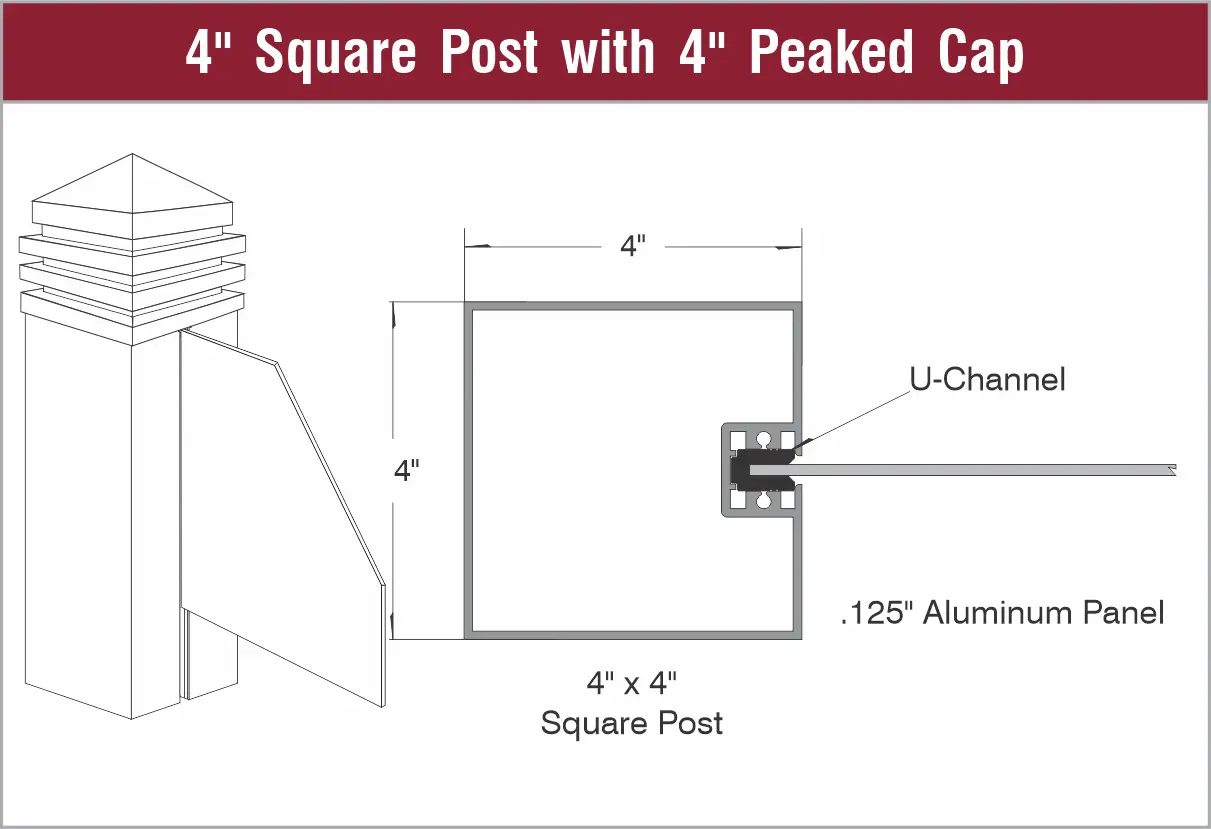

![4 Square Post with 4 Peaked Cap v3](/assets/bulkUpload/4_-Square-Post-with-4_-Peaked-Cap-v3.png)
